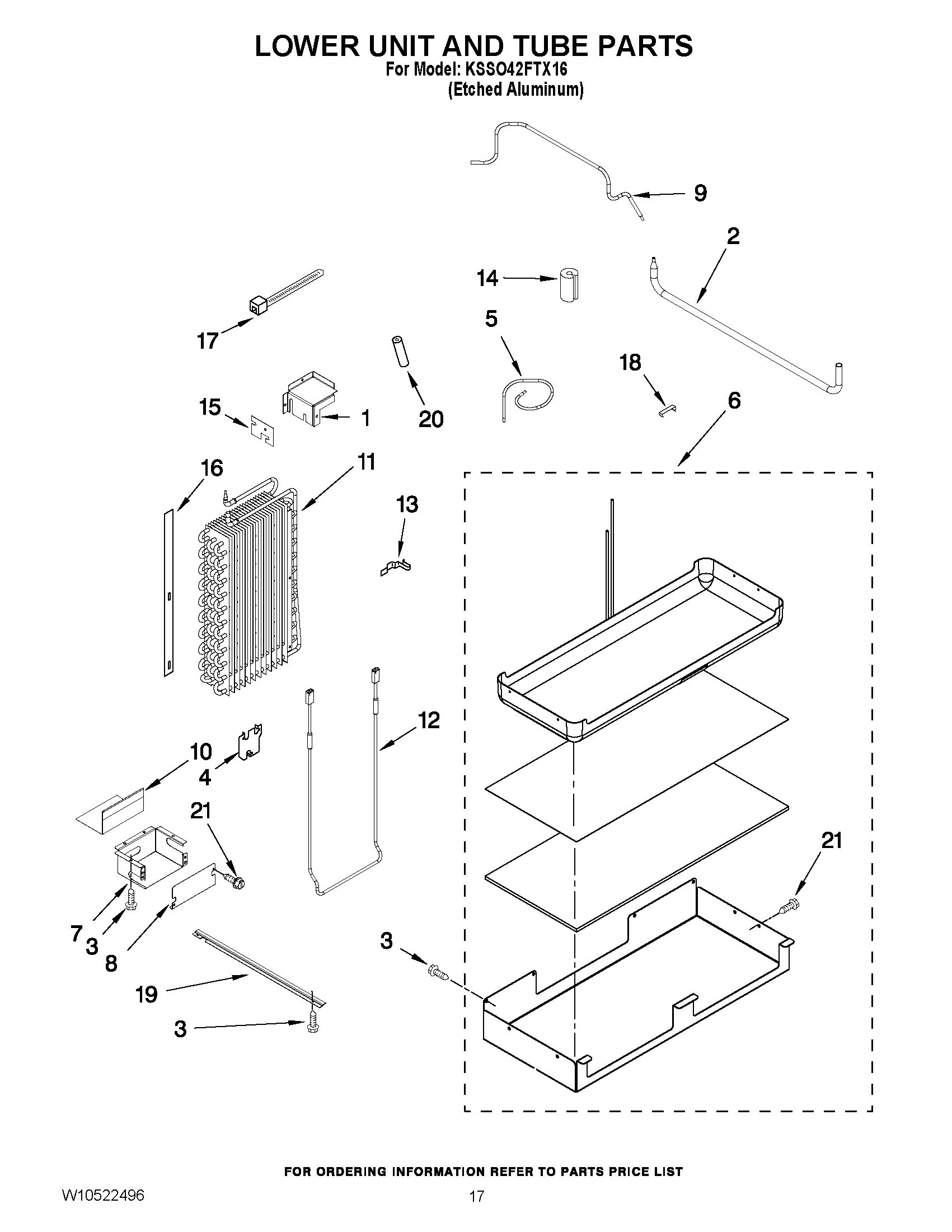

KSSO42FTX16 11 – LOWER UNIT AND TUBE PARTS

KSSO42FTX16 11 – LOWER UNIT AND TUBE PARTS

Written by

in

KSSO42FTX16 11 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1Bracket Assembly, Return Air
2W10388653 Whirlpool Refrigerator Tube
3W11624204 Whirlpool Screw
4W10157752 Whirlpool Bracket
5TUBE, SUCTION
6WPW10281063 Whirlpool Refrigerator Heater Pan
7WIRE COVER BOTTOM
8WIRE BOX COVER
9W10412488 Whirlpool Refrigerator Tube
10W10321050 Whirlpool Refrigerator Shield
11WPW10427992 Whirlpool Refrigerator Evaporator
12W10140161 Whirlpool Refrigerator Heater
131113048 Whirlpool Refrigerator Clamp
14W11715935 Whirlpool Dampener
15W10139908 Whirlpool Seal
16W10432308 Whirlpool Gasket
17WPW10339879 Whirlpool Wire Tie
18W10169509 Whirlpool Refrigerator Clip
192320554 Whirlpool Bracket
202215648 Whirlpool Refrigerator Dampener
21WP489069 Whirlpool Compactor Screw
