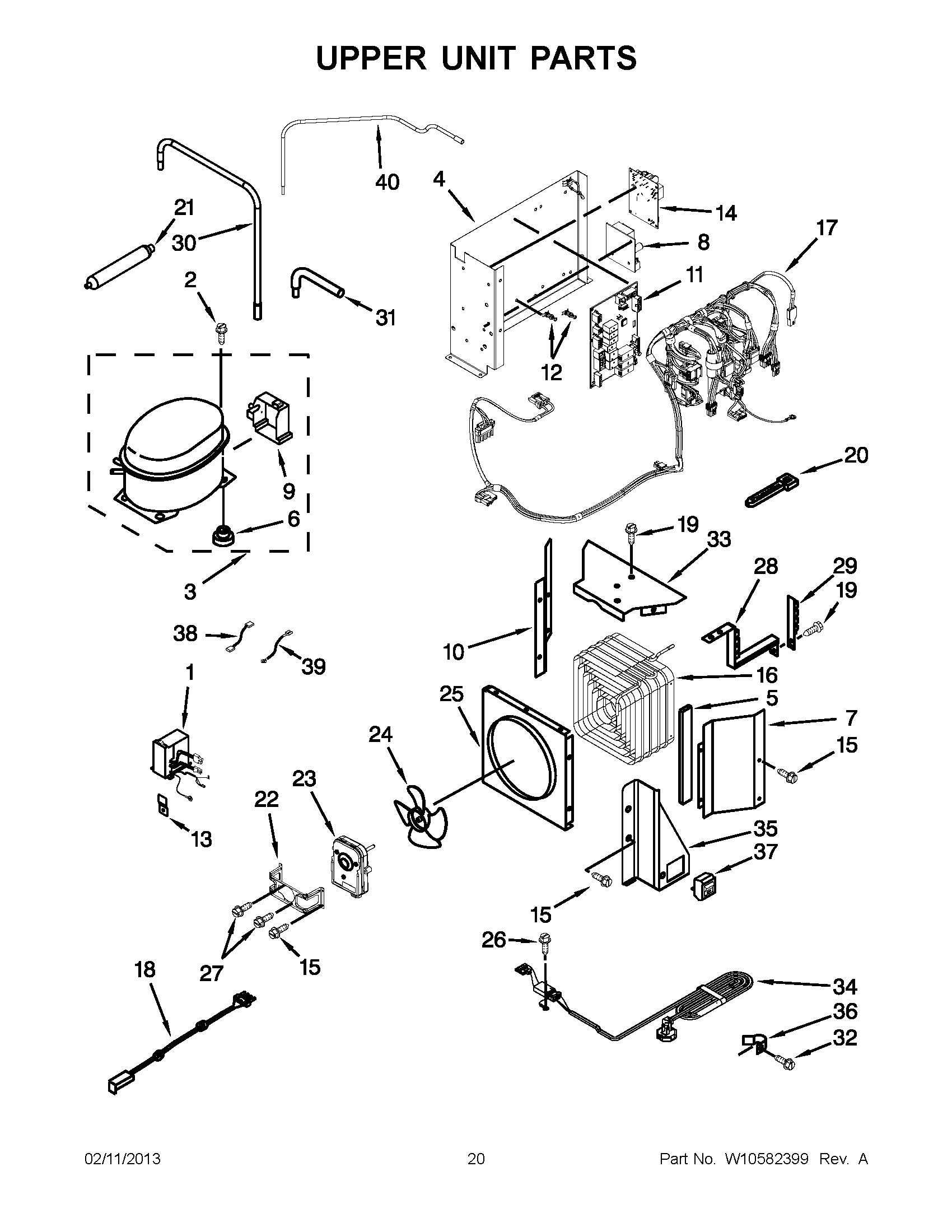

KSSO42FTX17 10 – UPPER UNIT PARTS

KSSO42FTX17 10 – UPPER UNIT PARTS

Written by

in

KSSO42FTX17 10 – UPPER UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
1	WPW10449006 Whirlpool Refrigerator Inverter Box
3	W10841139 Whirlpool Refrigerator Compressor
4	WPW10321056 Whirlpool Refrigerator Housing
5	2309432 Whirlpool Seal Strip
6	876811 Whirlpool Grommet
7	SUPPORT, CONDENSER RIGHT
7	SUPPORT, CONDENSER LEFT
8	WP2259350 Whirlpool Refrigerator Electronic Control Board
9	2215676 Whirlpool Refrigerator Terminal Cover
11	WPW10427079-includeCORE Whirlpool WPW10427079 Refrigerator Electronic Control Board + Core
12	WP2203075 Whirlpool Refrigerator Spacer
13	2256328 Whirlpool Bracket Assembly
14	WPW10356040-includeCORE Whirlpool WPW10356040 Refrigerator Electronic Control Board + Core
15	WP489069 Whirlpool Compactor Screw
16	2307998 Whirlpool Refrigerator Condenser
17	W10427089 Whirlpool Wire Harness
18	2310207 Whirlpool Wire Harness
19	WP489399 Whirlpool Refrigerator Screw
20	WPW10339879 Whirlpool Wire Tie
21	WPW10143759 Whirlpool Dryer Filter
22	W10414681 Whirlpool Bracket
23	W11578915 Whirlpool Condenser Motor
24	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
25	W10415670 Whirlpool Orifice
26	WP489128 Whirlpool Refrigerator Screw
27	WP8533993 Whirlpool Refrigerator Screw
28	BRACKET, VIBRATION (CONDENSER)
29	ARM, VIBRATION (CONDENSER)
30	2307566 Whirlpool Refrigerator Tube
31	W10528578 Whirlpool Refrigerator Tube
32	W11624204 Whirlpool Screw
33	Cover, Condenser
34	WP2310251 Whirlpool Refrigerator Power Cord
35	W10321055 Whirlpool Refrigerator Bracket
36	549193 Whirlpool Refrigerator Power Clamp
37	WP2266802 Whirlpool Refrigerator Switch
38	WPW10483905 Whirlpool Jumper Wire
39	WPW10495645 Whirlpool Wire Jumper
40	W10234131 Whirlpool Refrigerator Tube
