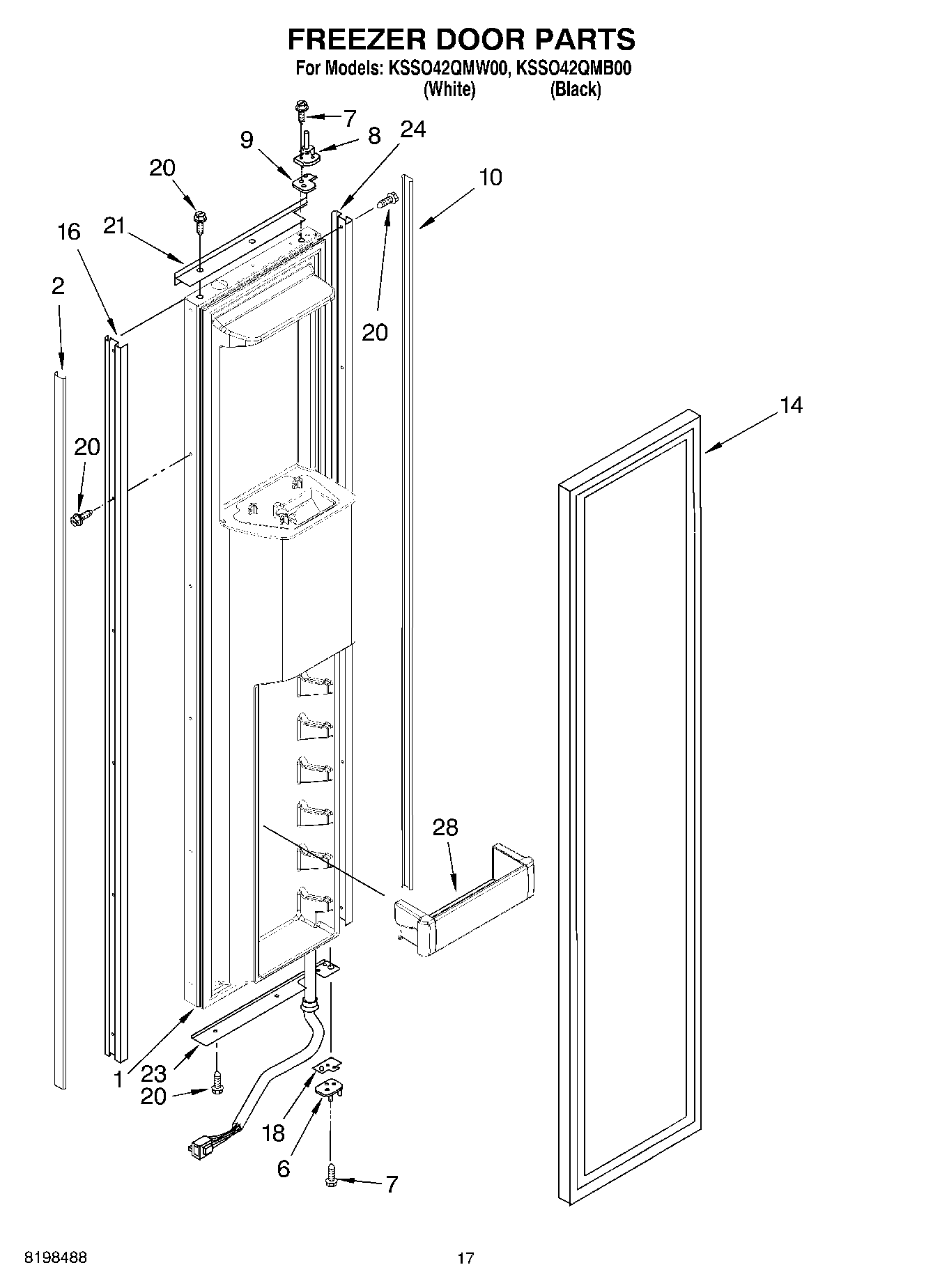

KSSO42QMB00 11 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door Panel (Includes Item 14) (Black)
1	Freezer Door Panel (Includes Insulation) (White)
2	Cover, Screw (Hinge Side) (White)
2	Trim, Screw Cover (Hinge Side) (Black)
6	HINGE-DOOR
7	W11474472 Whirlpool Screw
8	W11724512 Whirlpool Door Hinge
9	Spacer-Hinge, Top
10	Cover, Screw (Handle Side) (White)
10	Cover, Screw (Handle Side) (Black)
14	WP2266905 Whirlpool Refrigerator Door Gasket
16	Trim, Door (Handle Side) (White)
16	Trim, Door (Handle Side) (Black)
18	Door Spacer, Bottom
20	W10851443 Whirlpool Refrigerator Screw
20	Screw 8-15 x 1/2 (White)
21	Trim (Top) (Black)
21	Trim (Top) (White)
23	Trim (Bottom) (White)
23	Trim (Bottom) (Black)
24	Trim, Door (Hinge Side) (Black)
24	Trim, Door (Hinge Side) (White)
28	W10323602 Whirlpool Refrigerator Cantilever Bin
