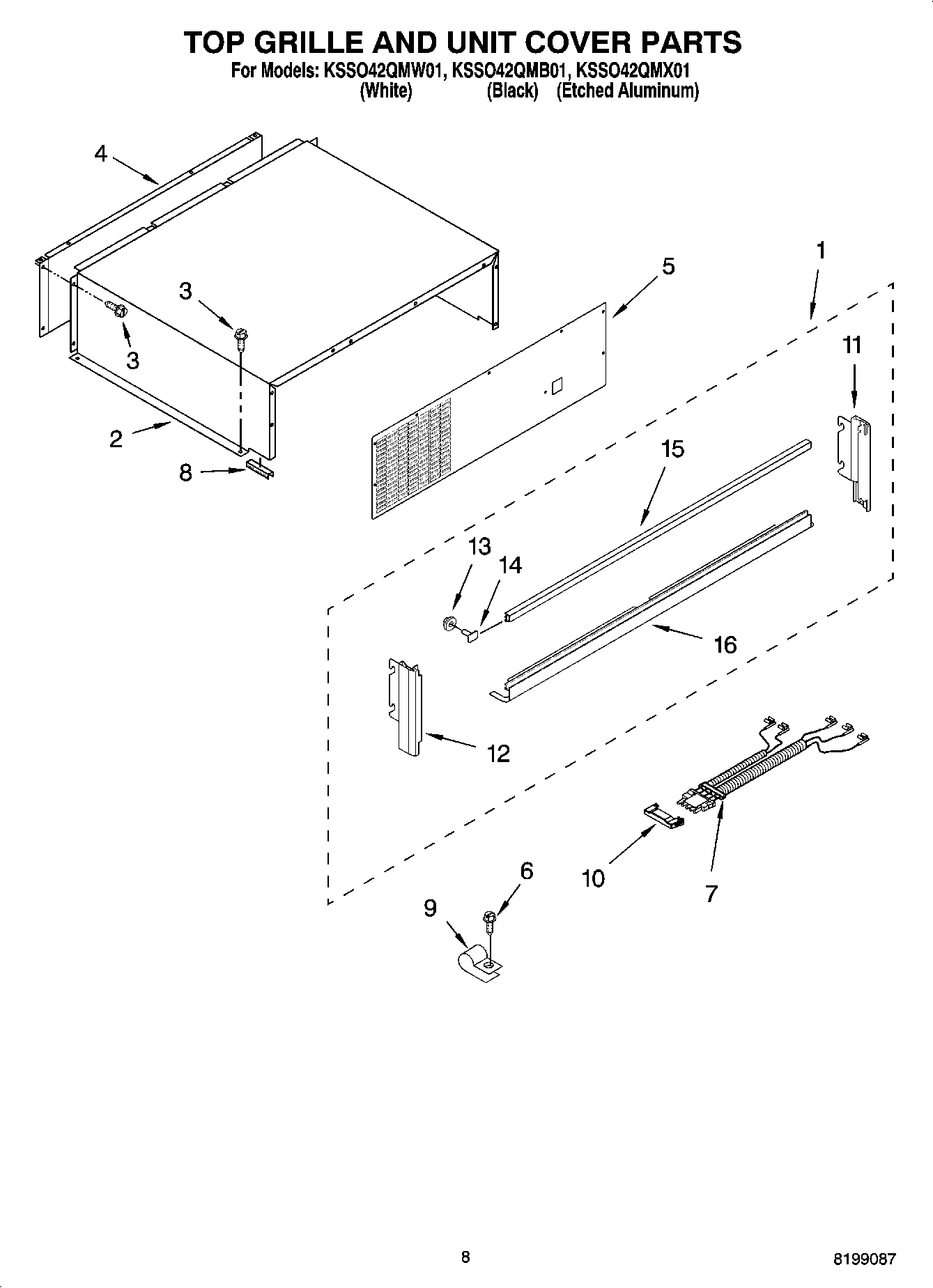

KSSO42QMB01 06 – TOP GRILLE AND UNIT COVER PARTS

KSSO42QMB01 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSO42QMB01 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Panel, Decorative Assembly
1Top Grille Assembly (Black)
1Top Grille Assembly (White)
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Front, Unit Cover
6WP965173 Whirlpool Dishwasher Screw
7Wire Assembly RC/FC Light Switch
82215910 Whirlpool Refrigerator Grommet
9489348 Whirlpool Refrigerator Tube Clamp
10Enclosure, Connector
11Trim-Grille, Right Side (Black)
11Trim-Grille, Right Side (Etched Aluminum)
11Trim-Grille, Right Side (White)
12Trim-Grille, Left Side (White)
12Trim-Grille, Left Side (Etched Aluminum)
12Trim-Grille, Left Side (Black)
13WP488130 Whirlpool Air Conditioner Nut
142003347 Whirlpool Screw
15Grille-Trim, Top
15Trim-Grille, Top (Black)
15Trim-Grille, Top (White)
16Grille-Trim, Bottom
16Trim-Grille, Bottom (Black)
16Trim-Grille, Bottom (White)
