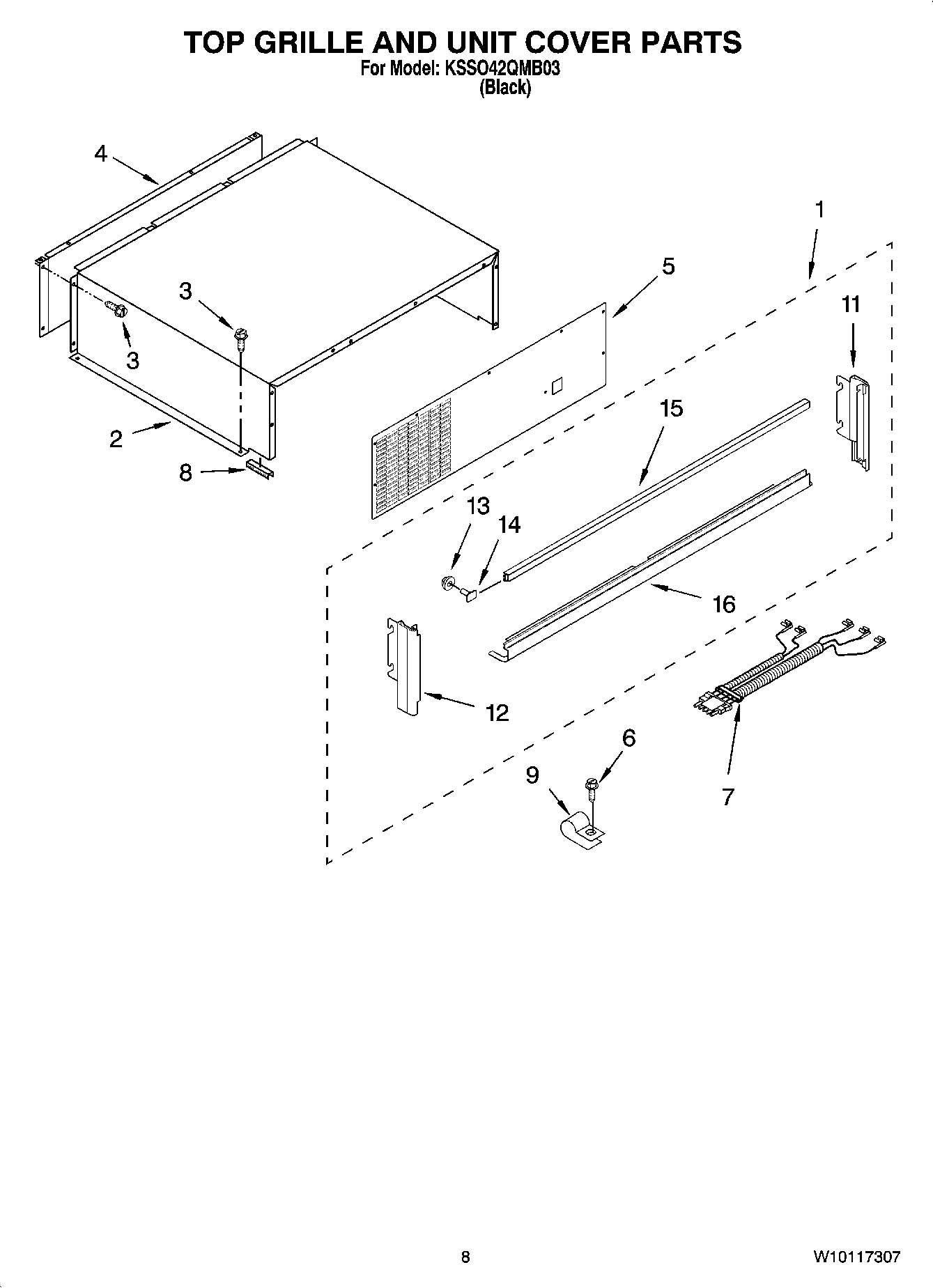

KSSO42QMB03 06 – TOP GRILLE AND UNIT COVER PARTS

Products

Position	Product
1	Top Grille Assembly (Black)
2	Cover, Unit
3	W11624204 Whirlpool Screw
4	2256466 Whirlpool Refrigerator Unit Cover
5	Cover-Unit, Front
6	WP965173 Whirlpool Dishwasher Screw
7	WIRE ASSEMBLY RC/FC LIGHT SWITCH
8	2215910 Whirlpool Refrigerator Grommet
9	489348 Whirlpool Refrigerator Tube Clamp
11	Trim-Grille, Right Side (Black)
12	Trim-Grille, Left Side (Black)
13	WP488130 Whirlpool Air Conditioner Nut
14	2003347 Whirlpool Screw
15	Trim-Grille, Top (Black)
16	Trim-Grille, Bottom (Black)
