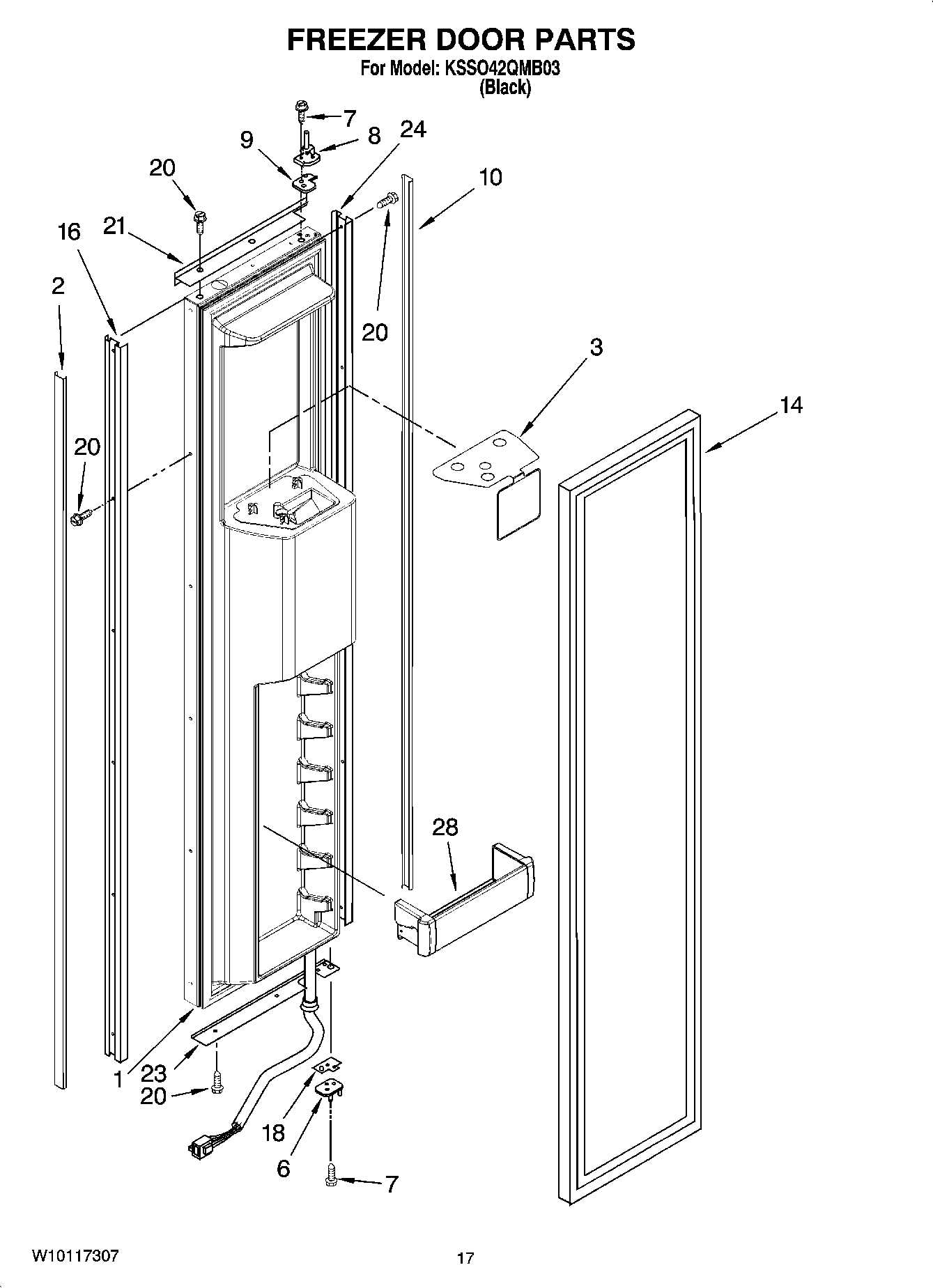

KSSO42QMB03 11 – FREEZER DOOR PARTS

KSSO42QMB03 11 – FREEZER DOOR PARTS

Written by

in

KSSO42QMB03 11 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door Panel (Includes Insulation) (Black)
2Cover, Screw (Handle Side) (Black)
3Safety Barrier
6HINGE-DOOR
7W11474472 Whirlpool Screw
8W11724512 Whirlpool Door Hinge
9Spacer-Hinge, Top
10Trim, Screw Cover (Hinge Side) (Black)
14WP2266905 Whirlpool Refrigerator Door Gasket
16Trim, Door (Handle Side) (Black)
18Door Spacer, Bottom
20W10851443 Whirlpool Refrigerator Screw
21Trim (Top) (Black)
23Trim (Bottom) (Black)
24Trim, Door (Hinge Side) (Black)
28W10323602 Whirlpool Refrigerator Cantilever Bin
