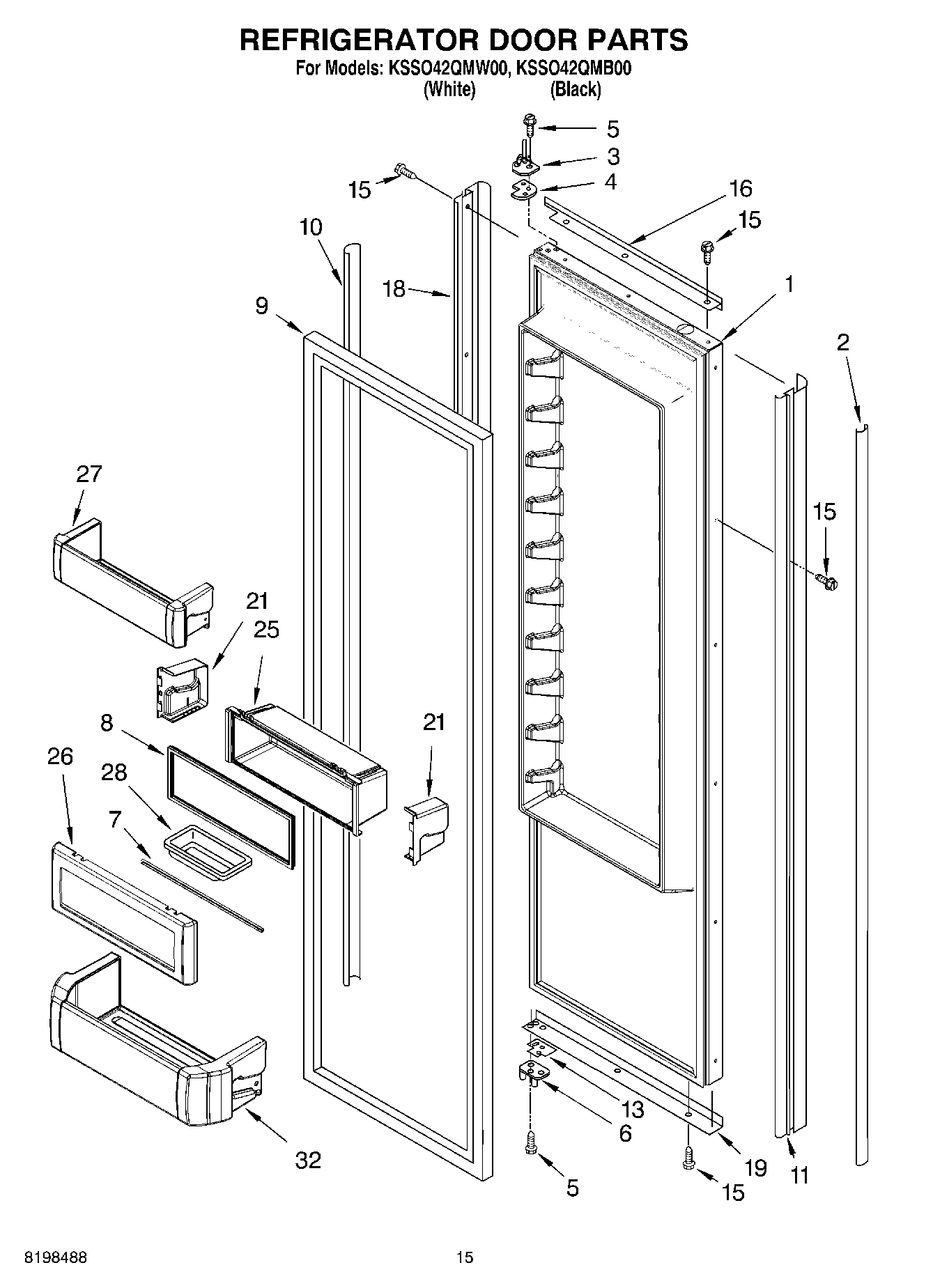

KSSO42QMW00 10 – REFRIGERATOR DOOR PARTSadmin2025-04-26T12:31:35+00:00KSSO42QMW00 10 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes Item 9) |
| 2 | Cover, Screw (Hinge Side) (White) |
| 2 | Trim, Screw Cover (Hinge Side) (Black) |
| 3 | W11724512 Whirlpool Door Hinge |
| 4 | Spacer-Hinge, Top |
| 5 | W11474472 Whirlpool Screw |
| 6 | 2302878 Whirlpool Refrigerator Door Hinge |
| 7 | W11448696 Whirlpool Refrigerator Bin |
| 8 | Gasket, Utility Bin |
| 9 | WP2266902 Whirlpool Refrigerator Door Gasket |
| 10 | Cover, Screw (Handle Side) (White) |
| 10 | Cover, Screw (Handle Side) (Black) |
| 11 | Trim, Door (Handle Side) (White) |
| 11 | Trim, Door (Handle Side) (Black) |
| 13 | Door Spacer, Bottom |
| 15 | W10851443 Whirlpool Refrigerator Screw |
| 15 | Screw 8-15 x 1/2 (White) |
| 16 | Trim (Top) (Black) |
| 16 | Trim (Top) (White) |
| 18 | Trim, Door (Hinge Side) (Black) |
| 18 | Trim, Door (Hinge Side) (White) |
| 19 | Trim (Bottom) (Black) |
| 19 | Trim (Bottom) (White) |
| 21 | WPW10323172 Whirlpool Refrigerator Retainer End Cap |
| 21 | WPW10323173 Whirlpool Refrigerator Retainer End Cap |
| 25 | W10323042 Whirlpool Cantilever Bin |
| 26 | W11553221 Whirlpool Refrigerator Door Compressor |
| 27 | W10323599 Whirlpool Refrigerator Cantilever Bin |
| 28 | Butter Tray |
| 32 | W10323747 Whirlpool Refrigerator Cantilever Bin |
