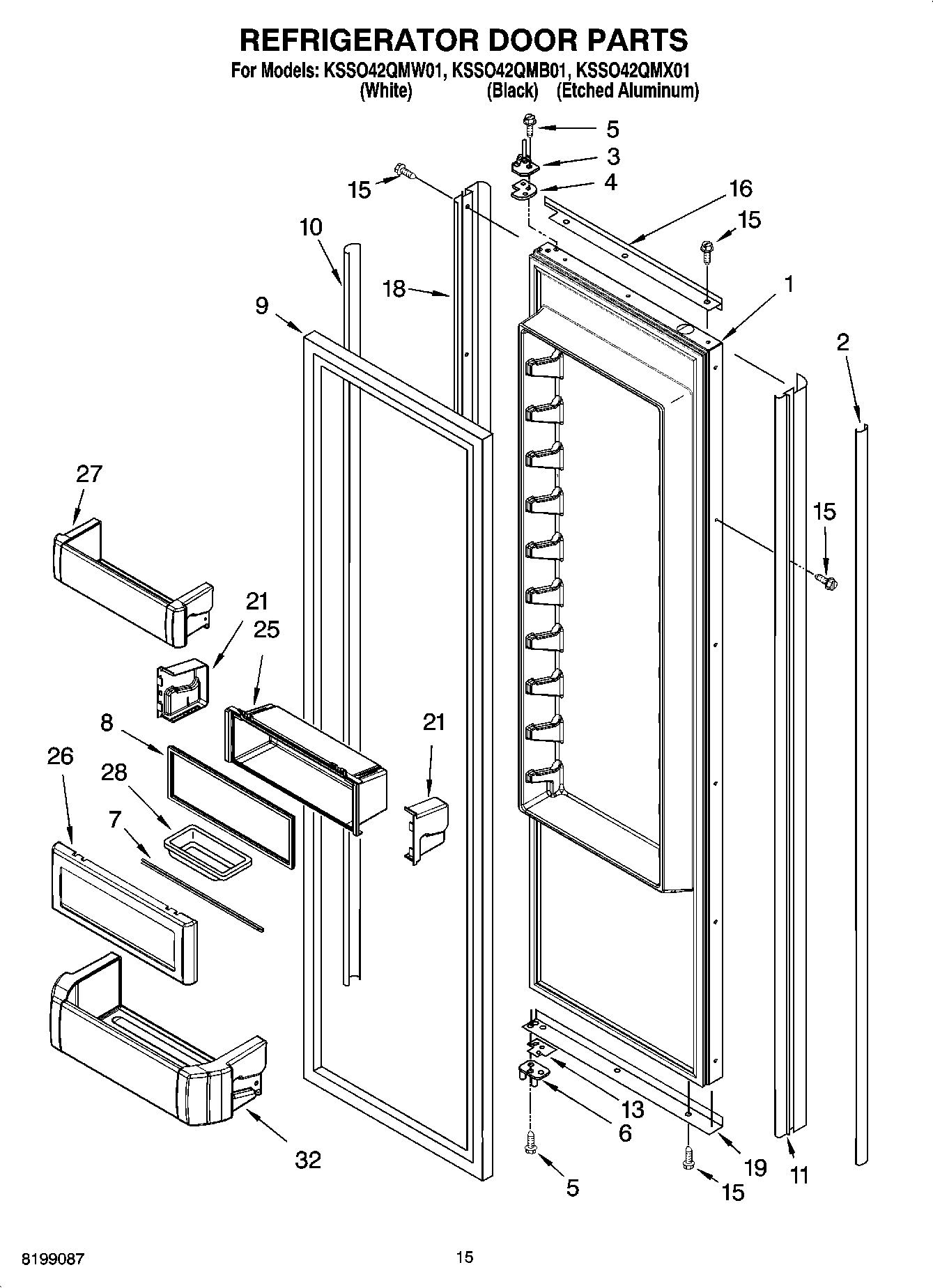

KSSO42QMX01 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 9)
2	Cover, Screw (Handle Side) (Black)
2	Cover, Screw (Handle Side) (White)
2	Cover, Screw (Handle Side) (Etched Aluminum)
3	W11724512 Whirlpool Door Hinge
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	2302878 Whirlpool Refrigerator Door Hinge
7	W11448696 Whirlpool Refrigerator Bin
8	Gasket, Utility Bin
9	WP2266902 Whirlpool Refrigerator Door Gasket
10	Trim, Screw Cover (Hinge Side) (Black)
10	Cover, Screw
10	Cover, Screw (Hinge Side) (White)
11	Trim, Door (Handle Side) (Black)
11	Trim, Door (Handle Side) (Etched Aluminum)
11	Trim, Door (Handle Side) (White)
13	Door Spacer, Bottom
15	Screw 8-15 x 1/2 (White)
15	W10851443 Whirlpool Refrigerator Screw
16	Trim (Top) (Black)
16	Trim (Top) (White)
16	Trim (Top) (Etched Aluminum)
18	Trim, Door (Hinge Side) (Black)
18	Trim-Door, (Hinge Side)
18	Trim, Door (Hinge Side) (White)
19	Trim (Bottom) (White)
19	Trim (Bottom) (Black)
19	Trim (Bottom) (Etched Aluminum)
21	WPW10323172 Whirlpool Refrigerator Retainer End Cap
21	WPW10323173 Whirlpool Refrigerator Retainer End Cap
25	W10323042 Whirlpool Cantilever Bin
26	W11553221 Whirlpool Refrigerator Door Compressor
27	W10323599 Whirlpool Refrigerator Cantilever Bin
28	Butter Tray
32	W10323747 Whirlpool Refrigerator Cantilever Bin
