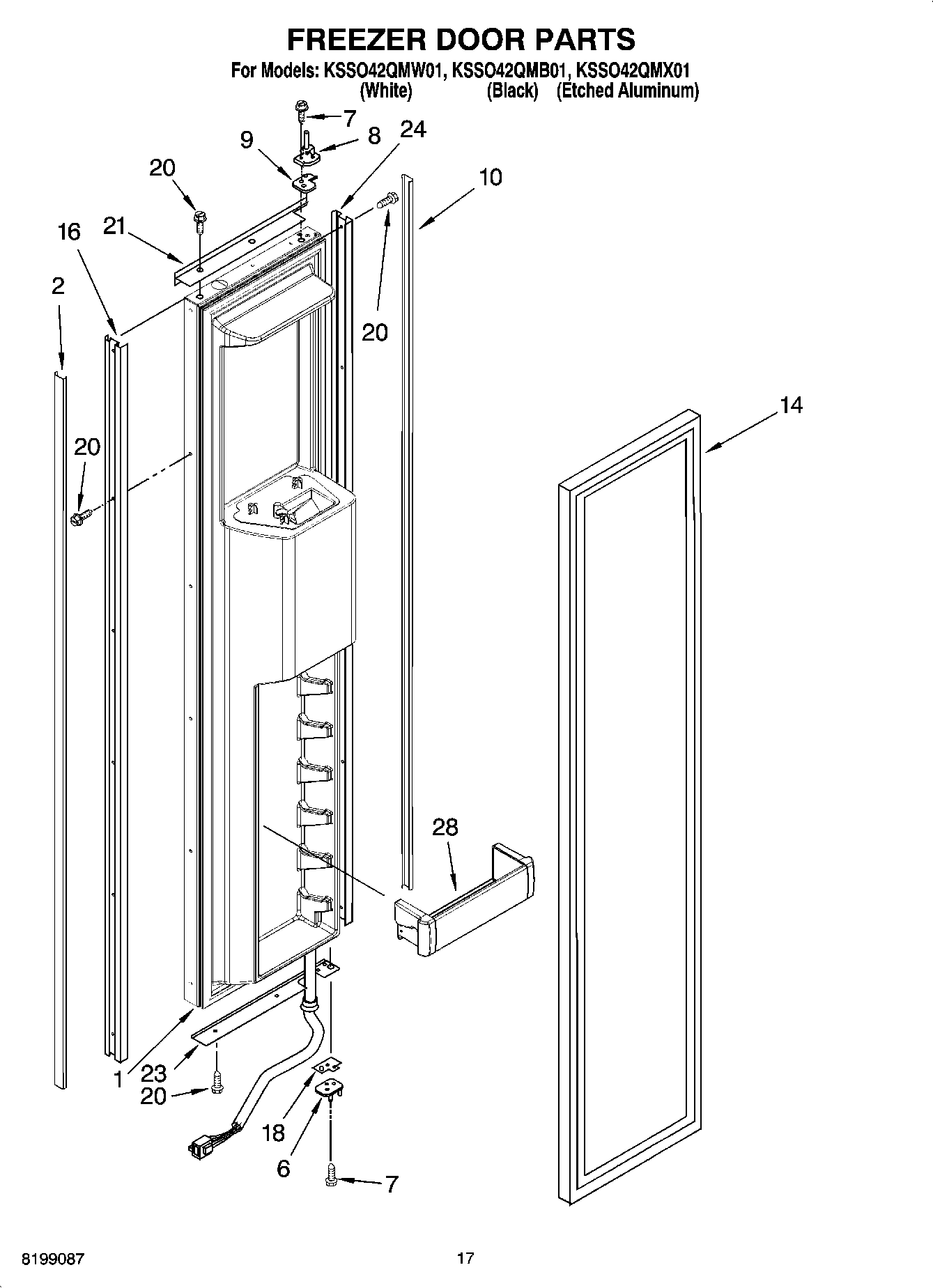

KSSO42QMX01 11 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door Panel (Includes Insulation) (White)
2	Cover, Screw (Handle Side) (Black)
2	Cover, Screw (Handle Side) (Etched Aluminum)
2	Cover, Screw (Handle Side) (White)
6	HINGE-DOOR
7	W11474472 Whirlpool Screw
8	W11724512 Whirlpool Door Hinge
9	Spacer-Hinge, Top
10	Trim, Screw Cover (Hinge Side) (Black)
10	Cover, Screw
10	Cover, Screw (Hinge Side) (White)
14	WP2266905 Whirlpool Refrigerator Door Gasket
16	Trim, Door (Handle Side) (Black)
16	Trim, Door (Handle Side) (White)
16	Trim, Door (Handle Side) (Etched Aluminum)
18	Door Spacer, Bottom
20	Screw 8-15 x 1/2 (White)
20	WP8281250 Whirlpool Refrigerator Screw
20	W10851443 Whirlpool Refrigerator Screw
21	Trim (Top) (Black)
21	Trim (Top) (White)
21	2005020 Whirlpool Refrigerator Door Trim
23	Trim (Bottom) (Black)
23	Trim (Bottom) (White)
23	Trim (Bottom) (Etched Aluminum)
24	Trim, Door (Hinge Side) (Black)
24	Trim-Door, (Hinge Side)
24	Trim, Door (Hinge Side) (White)
28	W10323602 Whirlpool Refrigerator Cantilever Bin
