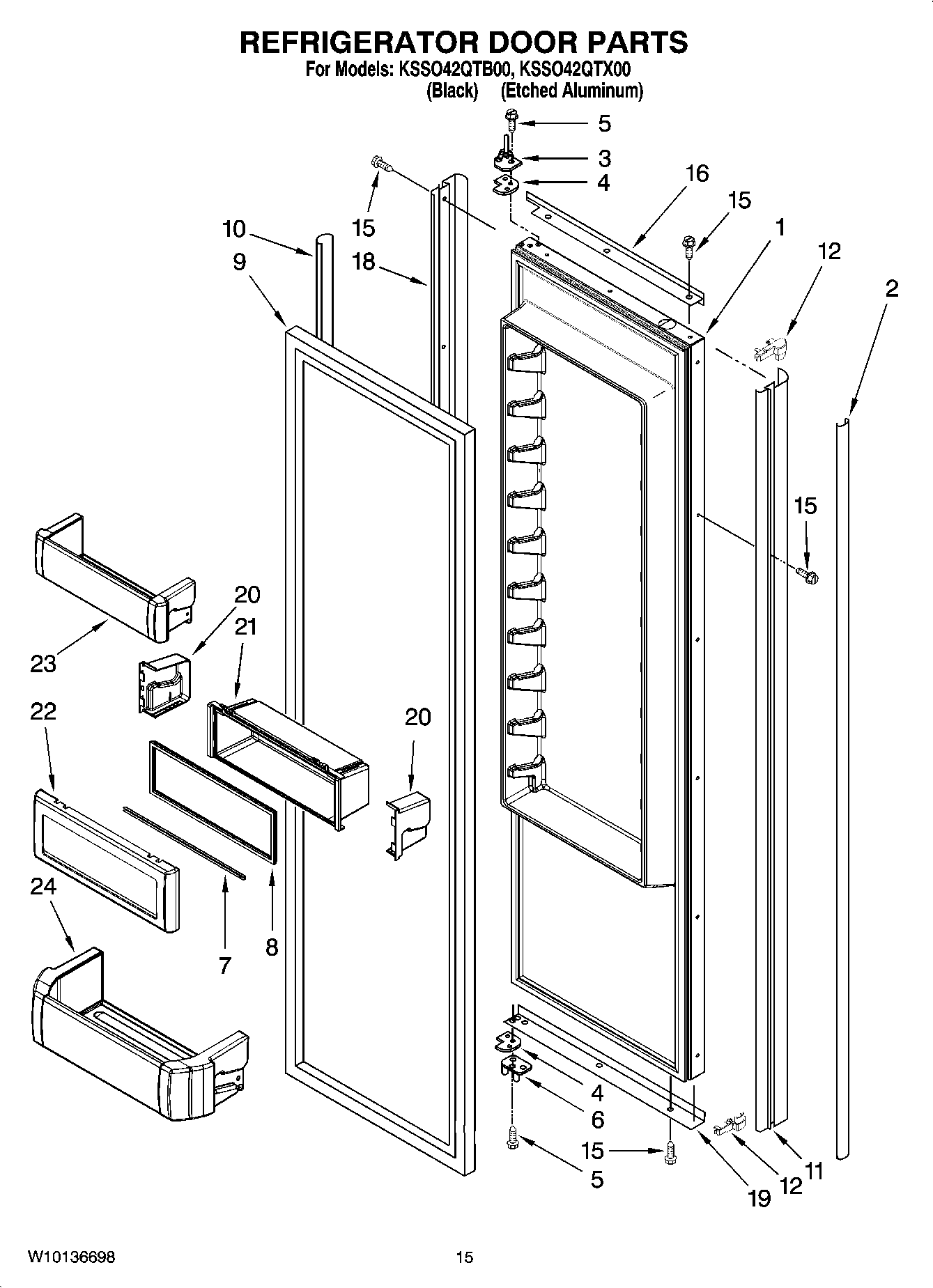

KSSO42QTX00 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 9)
2	2314003S Whirlpool Refrigerator Trim Cover
2	Trim, Screw Cover (Handle Side) (Black)
3	2252295B Whirlpool Refrigerator Door Hinge
3	Hinge Assy, Top (Chrome)
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	2252293 Whirlpool Refrigerator Door Hinge
6	2252293B Whirlpool Door Hinge
7	W11448696 Whirlpool Refrigerator Bin
8	Gasket, Utility Bin
9	WP2266902 Whirlpool Refrigerator Door Gasket
10	Trim, Screw Cover (Hinge Side) (Black)
10	2259448S Whirlpool Refrigerator Trim Cover
11	Trim-Door, (Handle Side) (Black)
11	2309497S Whirlpool Refrigerator Door Trim
12	Corner Trim (Black)
12	2207457 Whirlpool Refrigerator Door Trim
15	W10851443 Whirlpool Refrigerator Screw
15	WP8281250 Whirlpool Refrigerator Screw
16	2309486S Whirlpool Door Trim
16	Trim-Door, Top (Black)
18	Trim-Door, (Hinge Side) (Black)
18	2309498S Whirlpool Refrigerator Door Trim
19	2309492S Whirlpool Door Trim
19	Trim-Door, Btm (Black)
20	WPW10323172 Whirlpool Refrigerator Retainer End Cap
20	WPW10323173 Whirlpool Refrigerator Retainer End Cap
21	W10323042 Whirlpool Cantilever Bin
22	W11553221 Whirlpool Refrigerator Door Compressor
23	W10323599 Whirlpool Refrigerator Cantilever Bin
24	W10323747 Whirlpool Refrigerator Cantilever Bin
