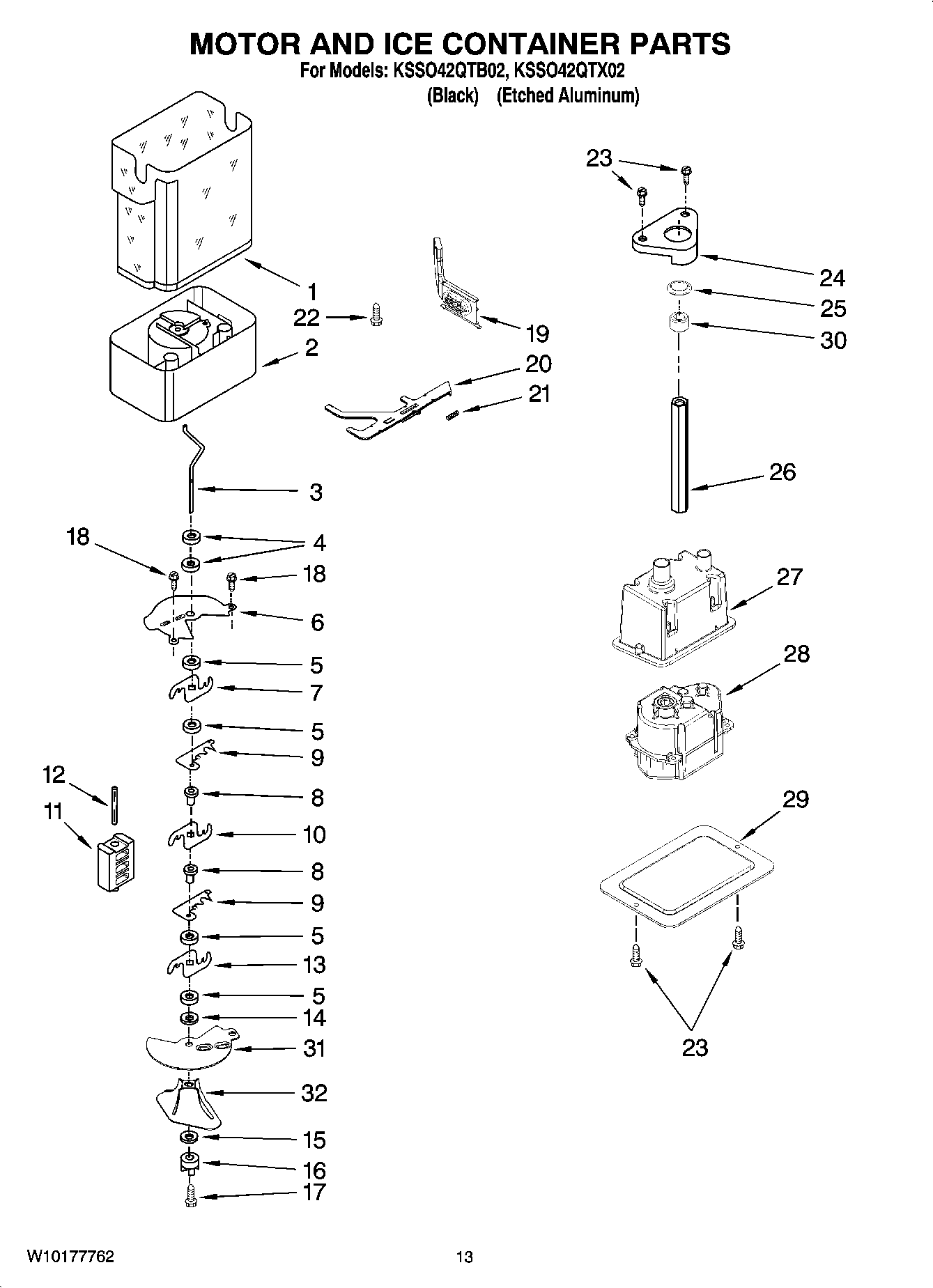

KSSO42QTX02 09 – MOTOR AND ICE CONTAINER PARTS

KSSO42QTX02 09 – MOTOR AND ICE CONTAINER PARTS

Written by

in

KSSO42QTX02 09 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1WP2222965 Whirlpool Refrigerator Ice Bin
2WPW10134774 Whirlpool Refrigerator Crush Bin
3W10852517 Whirlpool Refrigerator Ice Auger
4Washer
5WP1119007 Whirlpool Refrigerator Spacer
6Cover, Crusher
7W10278733 Whirlpool Refrigerator Blade
8WP1119005 Whirlpool Refrigerator Spacer
9Blade, Fixed
10W10278732 Whirlpool Refrigerator Blade
112317239 Whirlpool Refrigerator Blade Block
12489229 Whirlpool Refrigerator Roll Pin
13W10278731 Whirlpool Refrigerator Blade
14WP489235 Whirlpool Refrigerator Washer
15WP2198661 Whirlpool Refrigerator Washer
16W11629923 Whirlpool Coupling
17WP8281164 Whirlpool Refrigerator Screw
18WP3400065 Whirlpool Refrigerator Screw
19WP2252265 Whirlpool Refrigerator Ice Bin Button
20W10134783 Whirlpool Refrigerator Bin Latch
21WP2198608 Whirlpool Refrigerator Spring
222198671 Whirlpool Refrigerator Screw
23WP8281163 Whirlpool Refrigerator Screw
24WP2188919 Whirlpool Refrigerator Holder
25WP2198628 Whirlpool Door Seal
26WP2318082 Whirlpool Ice Ejector Bar
27W11404931 Whirlpool Refrigerator Cover
28W10822635 Whirlpool Refrigerator Ice Maker Dispenser Auger Drive Motor
292318028 Whirlpool Refrigerator Cover
30WP2315559 Whirlpool Motor Coupling
312317250 Whirlpool Refrigerator Divider
322317243 Whirlpool Refrigerator Wiper
