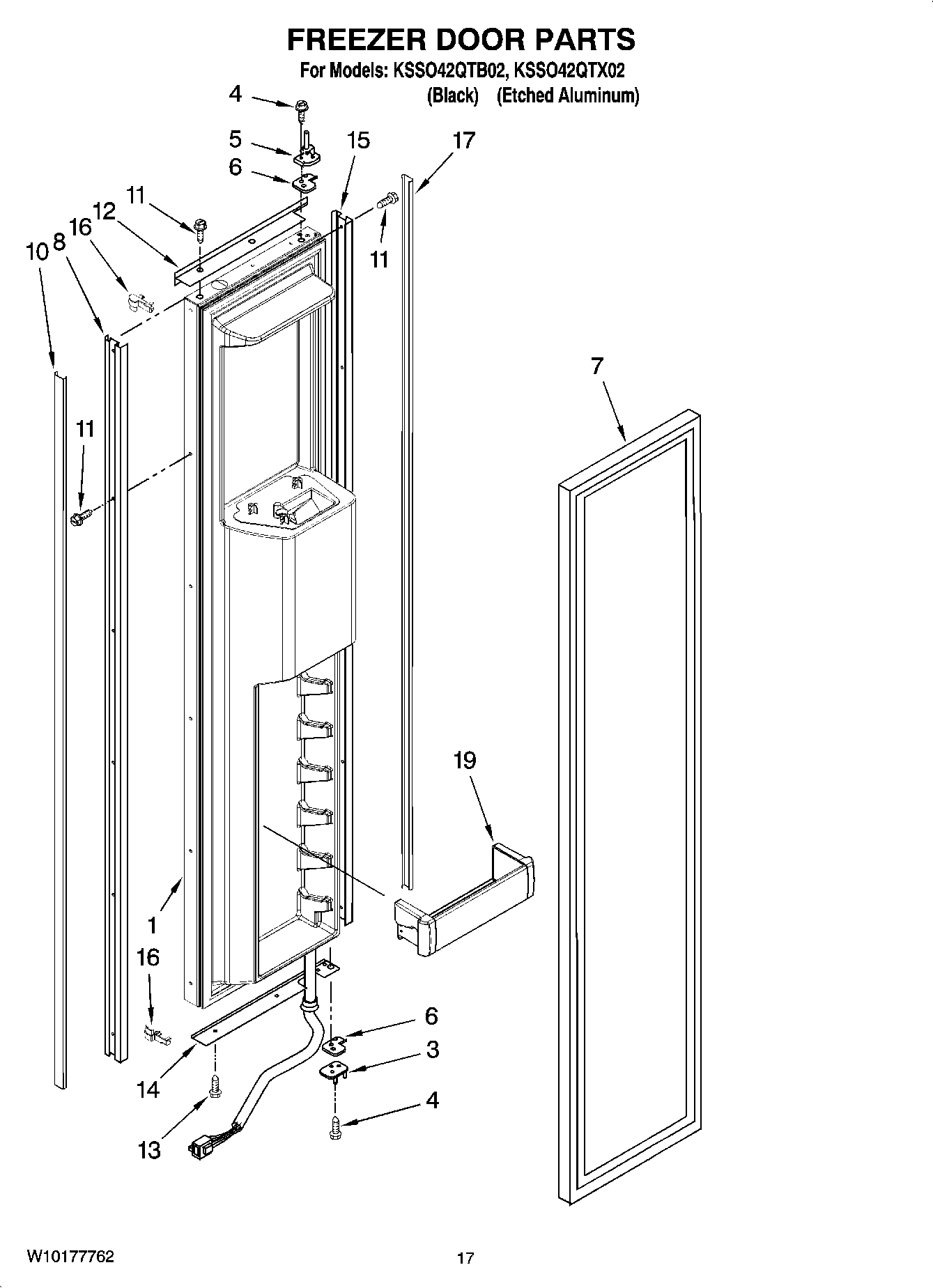

KSSO42QTX02 11 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 14) (Black)
1	Freezer Door (Includes 14) (Universal Silver)
3	2252294B Whirlpool Refrigerator Door Hinge
3	2252294 Whirlpool Refrigerator Door Hinge
4	W11474472 Whirlpool Screw
5	Hinge Assy, Top (Chrome)
5	2252295B Whirlpool Refrigerator Door Hinge
6	W11673500 Whirlpool Door Hinge
7	WP2266905 Whirlpool Refrigerator Door Gasket
8	Trim-Door, (Handle Side) (Black)
8	2309497S Whirlpool Refrigerator Door Trim
10	2314003S Whirlpool Refrigerator Trim Cover
10	Trim, Screw Cover (Handle Side) (Black)
11	WP8281250 Whirlpool Refrigerator Screw
11	W10851443 Whirlpool Refrigerator Screw
12	Trim-Door, Top (Black)
12	2309489S Whirlpool Refrigerator Door Trim
13	W10759522 Whirlpool Screw
14	2309495S Whirlpool Door Trim
14	Trim-Door, Btm (Black)
15	Trim-Door, (Hinge Side) (Black)
15	2309498S Whirlpool Refrigerator Door Trim
16	Corner Trim (Black)
16	2207457 Whirlpool Refrigerator Door Trim
17	Trim, Screw Cover (Hinge Side) (Black)
17	2259448S Whirlpool Refrigerator Trim Cover
19	W10323602 Whirlpool Refrigerator Cantilever Bin
