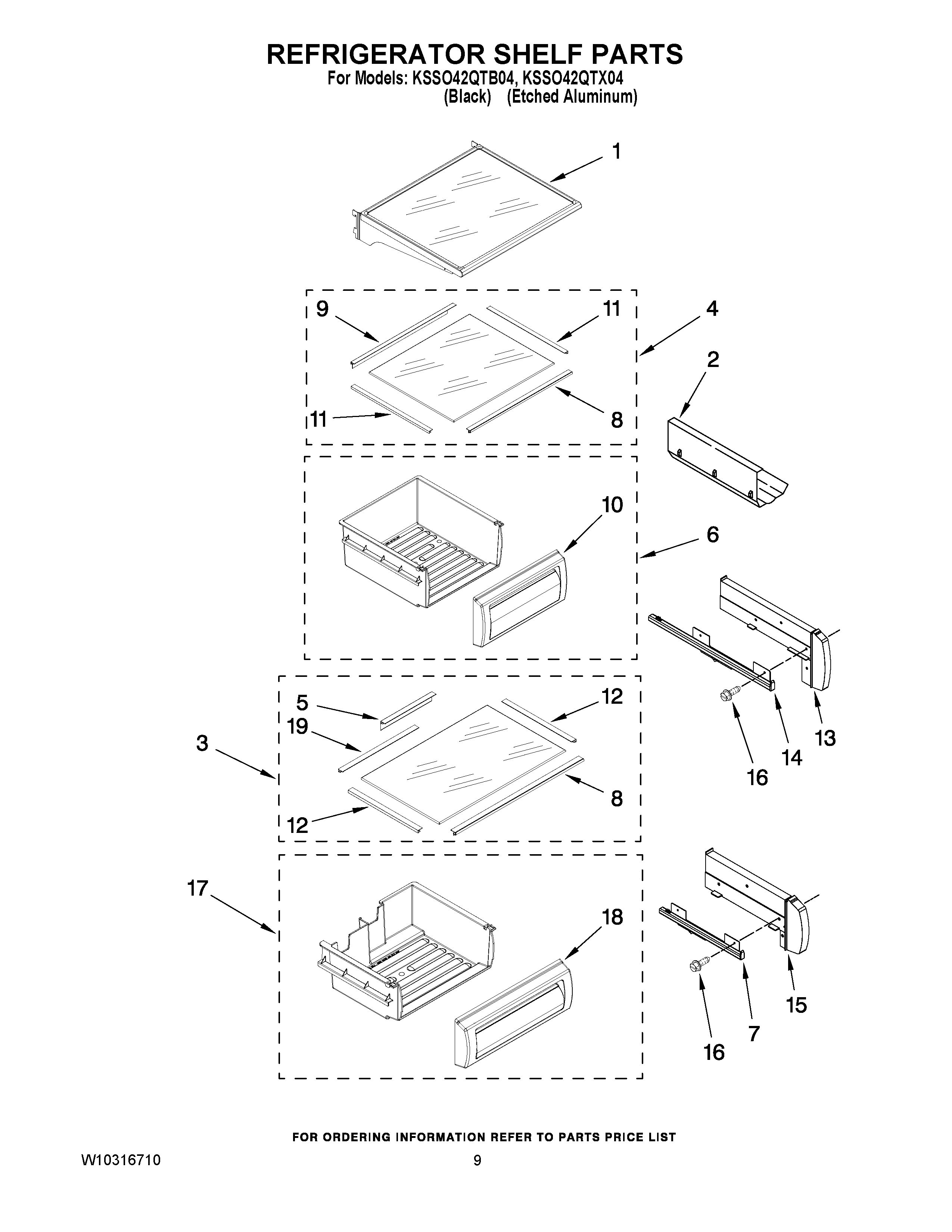

KSSO42QTX04 07 – REFRIGERATOR SHELF PARTS

KSSO42QTX04 07 – REFRIGERATOR SHELF PARTS

Written by

in

KSSO42QTX04 07 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Shelf Assembly
2W10777924 Whirlpool Refrigerator Wine Rack
3MEAT PAN COVER ASSEMBLY
4W10849998 Whirlpool Glass Shelf
5TRIM, GLASS REAR
6W10407624 Whirlpool Refrigerator Crisper Pan
72302955 Whirlpool Refrigerator Slide
72302954 Whirlpool Refrigerator Slide
8Trim, Glass Front
9TRIM, GLASS REAR
10WP2256248 Whirlpool Refrigerator Front Pan
11Trim, Glass Side
122256250 Whirlpool Refrigerator Shelf Trim
132256223 Whirlpool Refrigerator Track
132256222 Whirlpool Refrigerator Track
142302957 Whirlpool Refrigerator Slide
142302956 Whirlpool Refrigerator Slide
152256244 Whirlpool Refrigerator Track
152256243 Whirlpool Refrigerator Track
16WP8533928 Whirlpool Refrigerator Screw
16WP3400886 Whirlpool Refrigerator Screw
17W10407627 Whirlpool Refrigerator Meat Pan
18WP2256366 Whirlpool Refrigerator Front Pan
19Trim, Glass Rear Side
