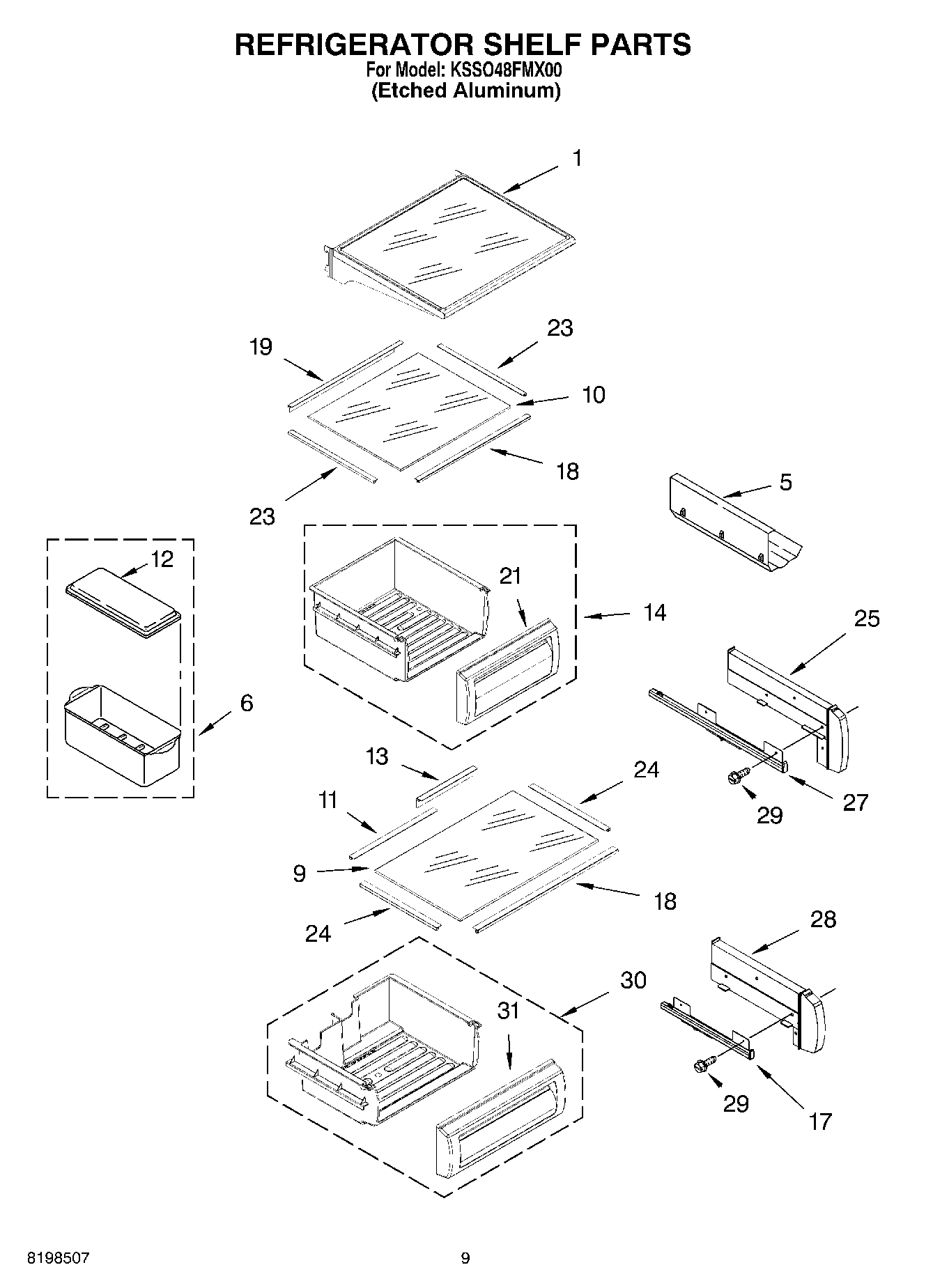

KSSO48FMX00 07 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	WP2222593 Whirlpool Cantilever Shelf
5	W10777924 Whirlpool Refrigerator Wine Rack
6	Egg Bin Assembly
9	Glass, Meat Pan Cover
10	Glass, Crisper Cover
11	Trim, Glass Rear Side
12	Cover
13	Trim, Glass Rear
14	W10407625 Whirlpool Refrigerator Crisper Pan
17	2302954 Whirlpool Refrigerator Slide
17	2302955 Whirlpool Refrigerator Slide
18	Trim, Glass Front
19	Trim, Glass Rear
23	Trim, Glass Side
24	2256250 Whirlpool Refrigerator Shelf Trim
25	2256222 Whirlpool Refrigerator Track
25	2256223 Whirlpool Refrigerator Track
27	2302956 Whirlpool Refrigerator Slide
27	2302957 Whirlpool Refrigerator Slide
28	2256244 Whirlpool Refrigerator Track
28	2256243 Whirlpool Refrigerator Track
29	WP3400886 Whirlpool Refrigerator Screw
30	W10407628 Whirlpool Refrigerator Meat Pan
31	WP2256367 Whirlpool Refrigerator Front Pan
