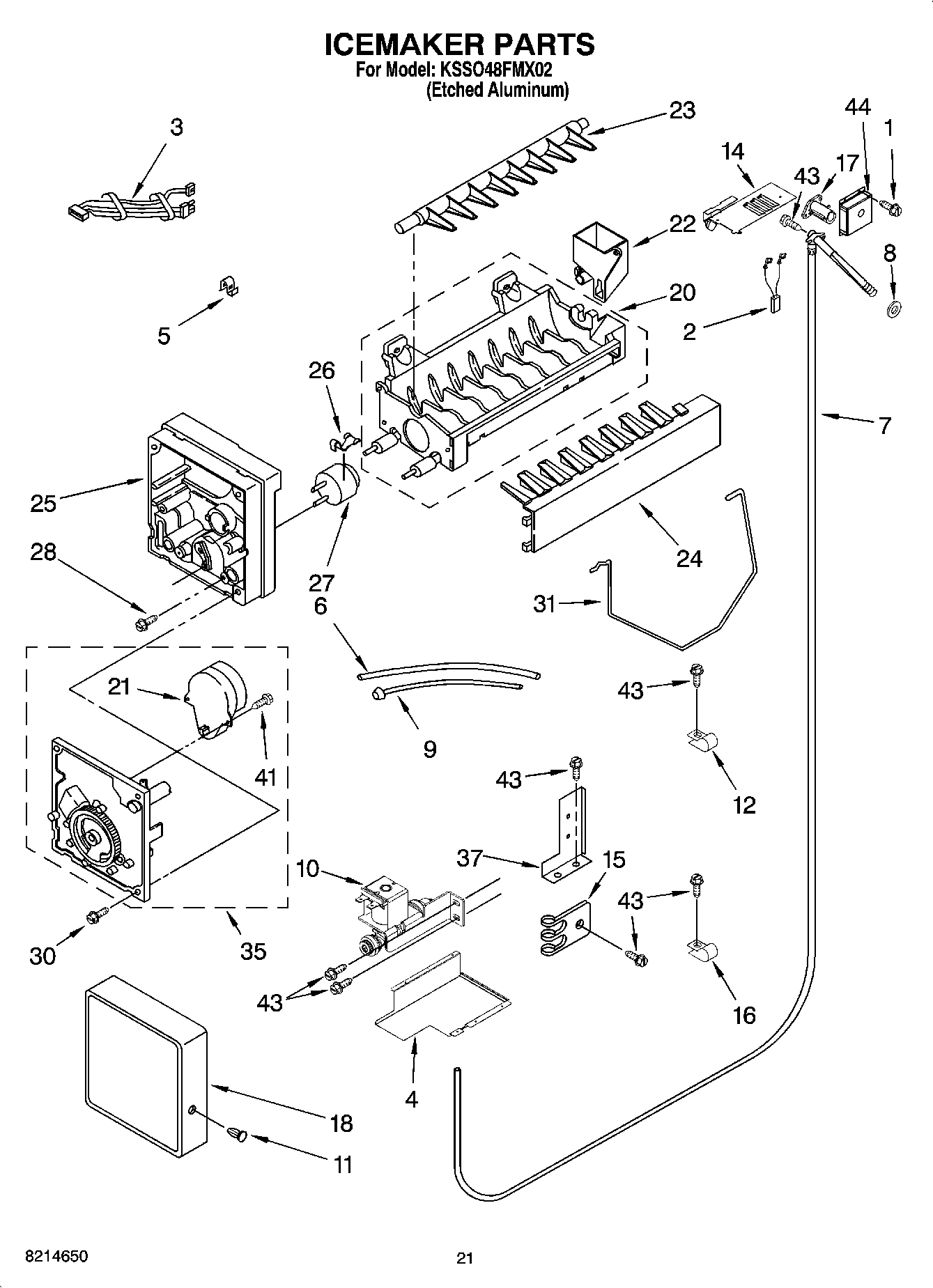

KSSO48FMX02 13 – ICEMAKER PARTSadmin2025-04-26T12:32:46+00:00KSSO48FMX02 13 – ICEMAKER PARTS ProductsPositionProduct1WP488729 Whirlpool Refrigerator Door Screw2Jumper, Heater Fill Tube3Wire Harness, Icemaker4Cover, Bottom5WP628379 Whirlpool Refrigerator Clip6Tube, Filter Inlet7Water Inlet Tube Assembly8WP1106508 Whirlpool Refrigerator Gasket9W11533506 Whirlpool Refrigerator Water Tube10WP2313917 Whirlpool Refrigerator Inlet Valve11WP489115 Whirlpool Refrigerator Rivet12W10833902 Whirlpool Refrigerator Clamp14WP2221231 Whirlpool Refrigerator Shield15WP488366 Whirlpool Refrigerator Clamp16Clamp, Tube17WP2221240 Whirlpool Refrigerator Heater18Cover20WPW10190929 Whirlpool Refrigerator Ice Maker Mold21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly22WP628356 Whirlpool Refrigerator Fill Cup23WP627843 Whirlpool Refrigerator Ejector Arm24WP2182124 Whirlpool Refrigerator Stripper Arm25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat288533917 Whirlpool Refrigerator Screw30WP681249 Whirlpool Screw Assembly31W11342242 Whirlpool Refrigerator Ice Level Arm358201515 Whirlpool Refrigerator Motor and Gear Module Kit37Water Valve Mounting Bracket41489136 Whirlpool Refrigerator Screw43W11624204 Whirlpool Screw44Cover, Fill Tube Heater100Black Acrylic Static Cleaner100WPW10277450 Whirlpool Refrigerator Icemaker100Front Panel Kit (White)100Front Panel Kit (Black)100Front Panel Kit (Stainless Steel)100FOLLOWING PARTS NOT ILLUSTRATED100(Optional Parts Only)
