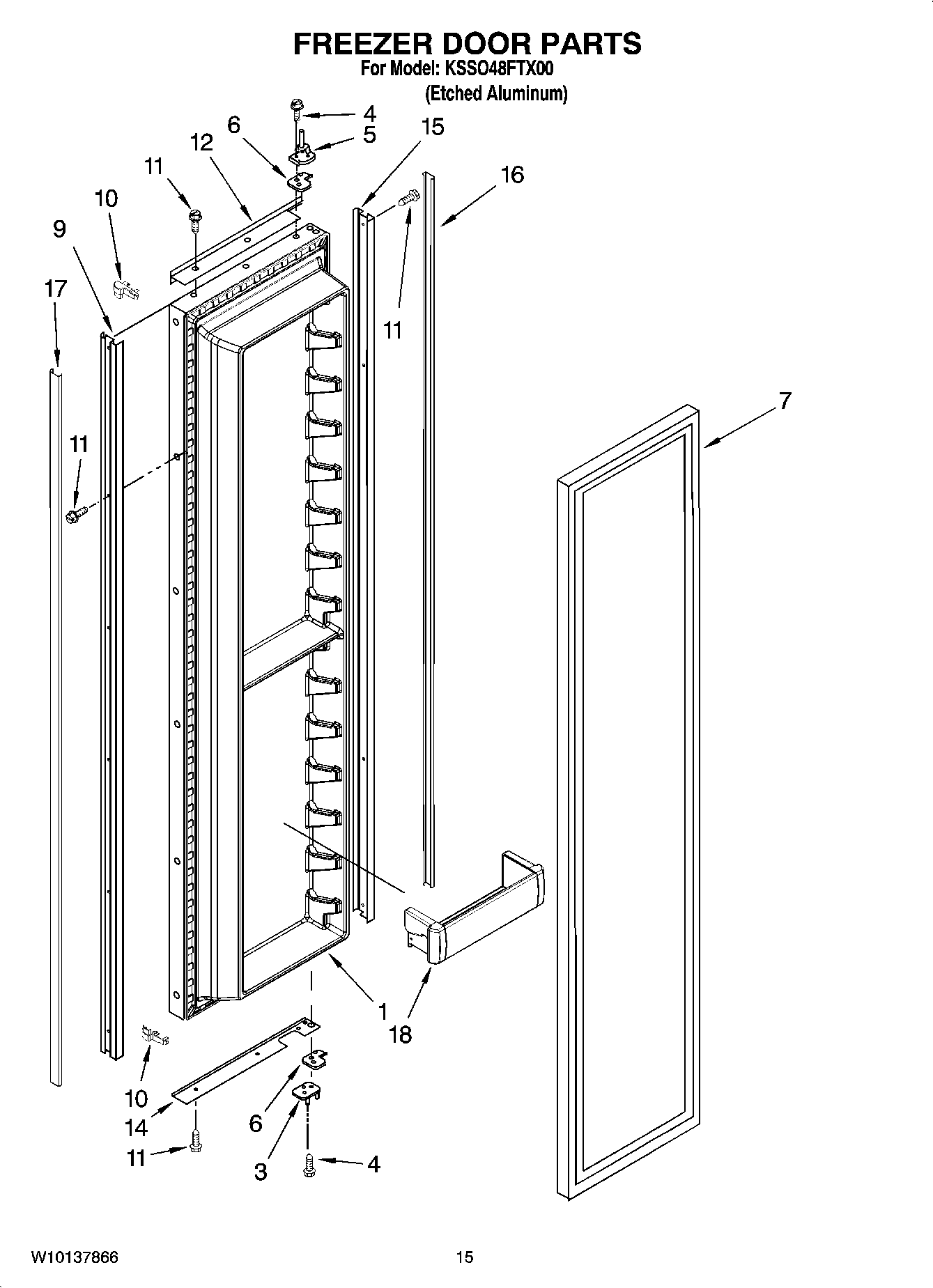

KSSO48FTX00 10 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 11)
3	2252294 Whirlpool Refrigerator Door Hinge
4	W11474472 Whirlpool Screw
5	Hinge Assy, Top (Chrome)
6	W11673500 Whirlpool Door Hinge
7	WP2266901 Whirlpool Door Gasket
9	2309497S Whirlpool Refrigerator Door Trim
10	2207457 Whirlpool Refrigerator Door Trim
11	WP8281250 Whirlpool Refrigerator Screw
12	2309490S Whirlpool Refrigerator Door Trim
14	2309496S Whirlpool Refrigerator Door Trim
15	2309498S Whirlpool Refrigerator Door Trim
16	2259448S Whirlpool Refrigerator Trim Cover
17	2314003S Whirlpool Refrigerator Trim Cover
18	W11590561 Whirlpool Refrigerator Cantilever Bin
