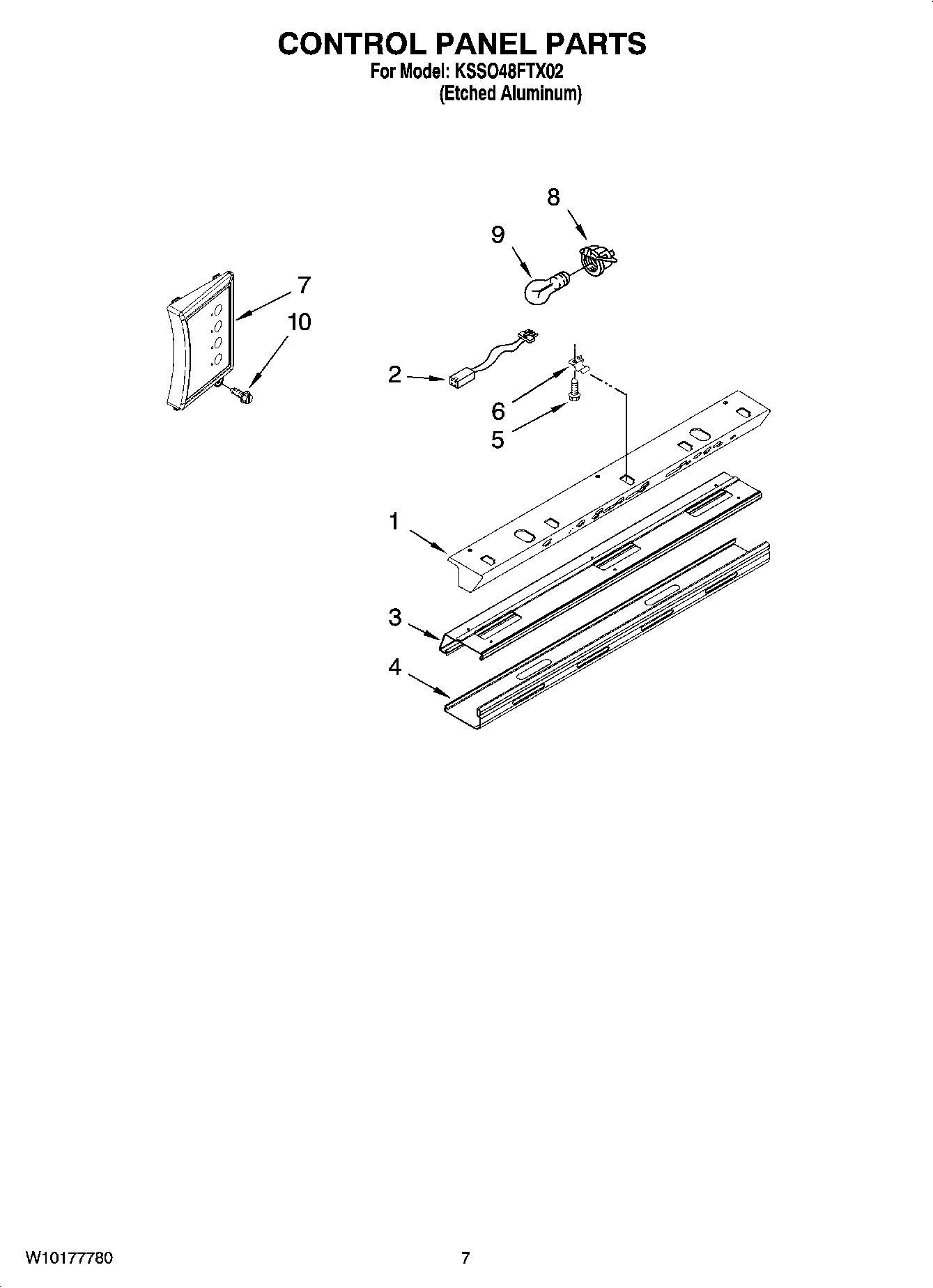

KSSO48FTX02 05 – CONTROL PANEL PARTS

KSSO48FTX02 05 – CONTROL PANEL PARTS

Written by

in

KSSO48FTX02 05 – CONTROL PANEL PARTS

Products

PositionProduct
1WPW10468948 Whirlpool Refrigerator Control Box
22310164 Whirlpool Refrigerator Wire Harness
3Bracket, Control Box
4Shield, Light
5WP488729 Whirlpool Refrigerator Door Screw
6Clip, Control Box
7WP2306086 Whirlpool Refrigerator Electronic Control Board
8WPW10191429 Whirlpool Refrigerator Socket
9WPA3073101 Whirlpool Light Bulb
10WPW10142283 Whirlpool Refrigerator Screw
