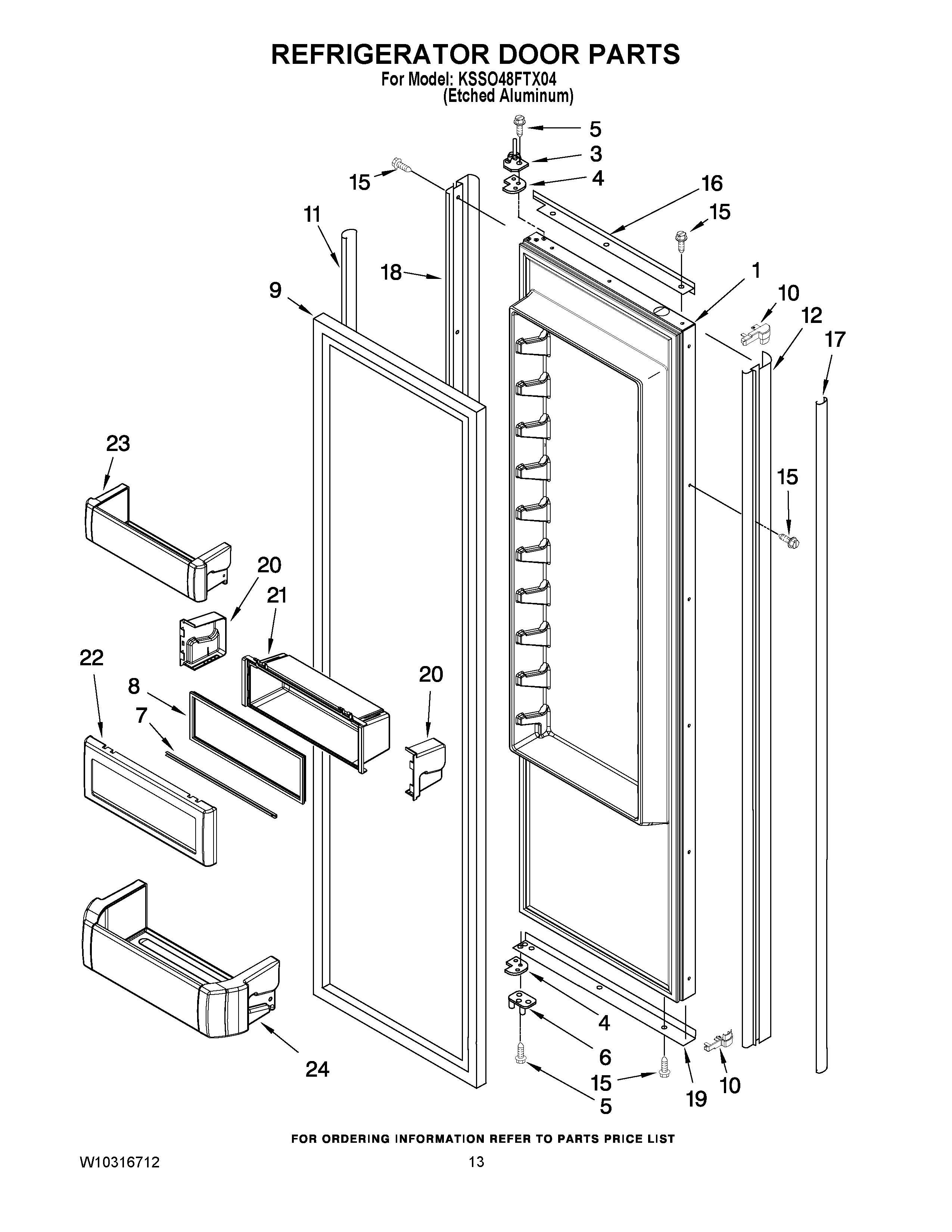

KSSO48FTX04 09 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10193491 Whirlpool Refrigerator FIP Door SS
3Hinge Assy, Top (Chrome)
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
62252293 Whirlpool Refrigerator Door Hinge
7W11348580 Whirlpool Refrigerator Bin
9WP2266903 Whirlpool Refrigerator Door Gasket
102207457 Whirlpool Refrigerator Door Trim
112259448S Whirlpool Refrigerator Trim Cover
122309497S Whirlpool Refrigerator Door Trim
15WP8281250 Whirlpool Refrigerator Screw
162309487S Whirlpool Refrigerator Door Trim
172314003S Whirlpool Refrigerator Trim Cover
182309498S Whirlpool Refrigerator Door Trim
19TRIM, BOTTOM DOOR (ALUMINUM)
20WPW10323173 Whirlpool Refrigerator Retainer End Cap
20WPW10323172 Whirlpool Refrigerator Retainer End Cap
23BIN-CNTLVR
24W10323748 Whirlpool Refrigerator Cantilever Bin
