KSSO48FTX16 09 – FREEZER DOOR PARTS

KSSO48FTX16 09 – FREEZER DOOR PARTS

Written by

in

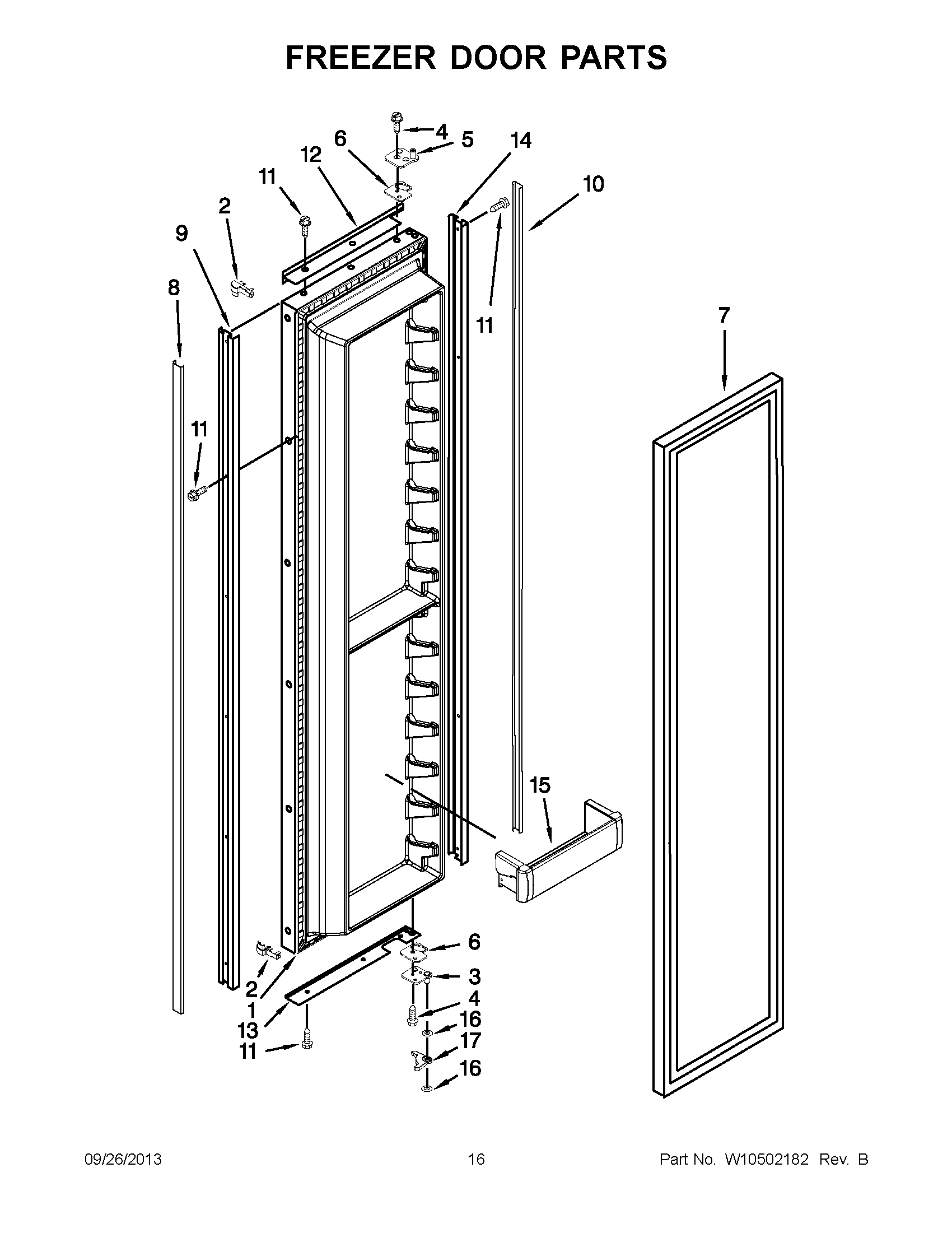

KSSO48FTX16 09 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES No.7)
22207457 Whirlpool Refrigerator Door Trim
32252294 Whirlpool Refrigerator Door Hinge
4W11474472 Whirlpool Screw
5Hinge Assy, Top (Chrome)
6W11673500 Whirlpool Door Hinge
7WP2266901 Whirlpool Door Gasket
82314003S Whirlpool Refrigerator Trim Cover
92309497S Whirlpool Refrigerator Door Trim
102259448S Whirlpool Refrigerator Trim Cover
11WP8281250 Whirlpool Refrigerator Screw
122309490S Whirlpool Refrigerator Door Trim
132309496S Whirlpool Refrigerator Door Trim
142309498S Whirlpool Refrigerator Door Trim
15W11590561 Whirlpool Refrigerator Cantilever Bin
16WP2006346 Whirlpool Refrigerator Washer
17Gap, Cover Assembly (Bottom)
