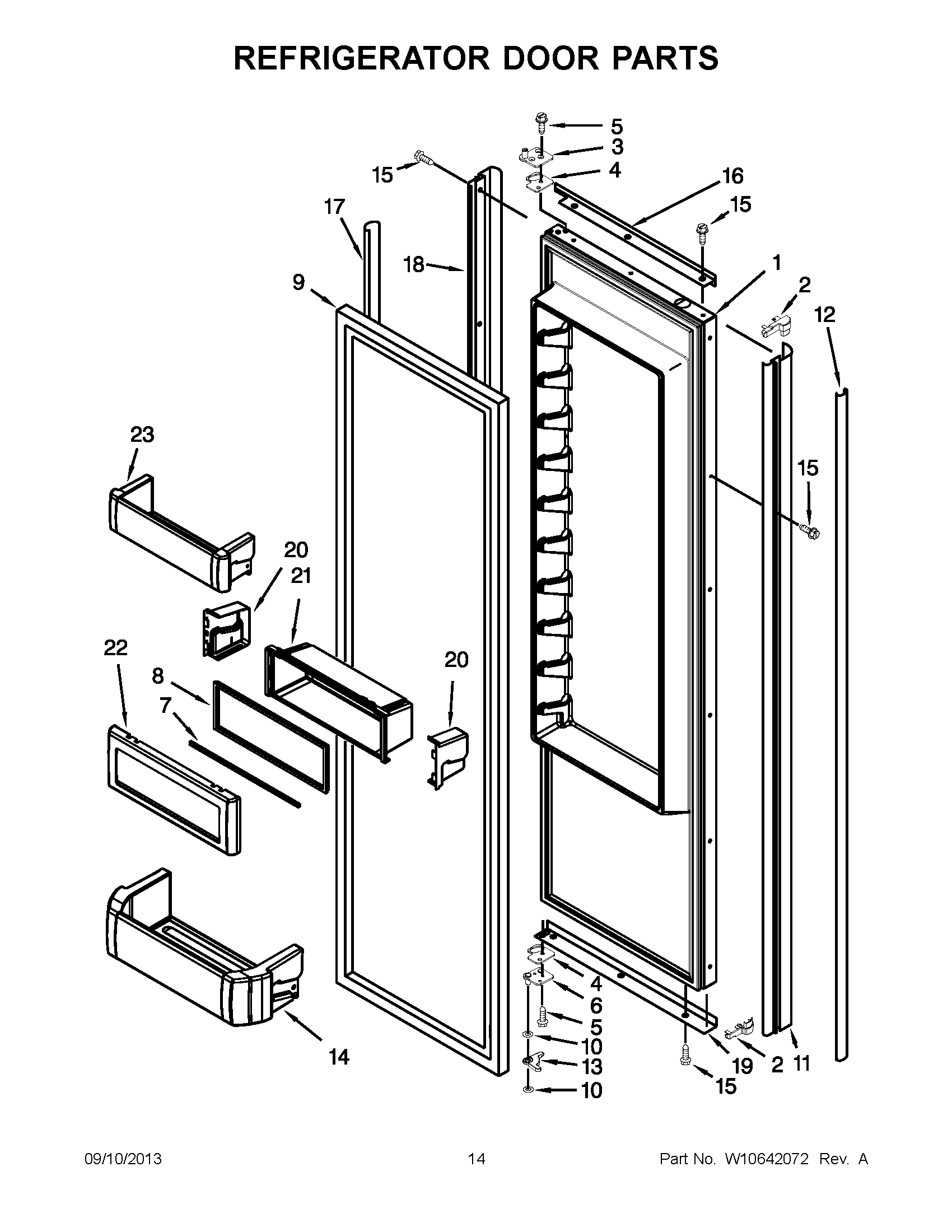

KSSO48FTX18 08 – REFRIGERATOR DOOR PARTS

KSSO48FTX18 08 – REFRIGERATOR DOOR PARTS

Written by

in

KSSO48FTX18 08 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10193491 Whirlpool Refrigerator FIP Door SS
22207457 Whirlpool Refrigerator Door Trim
3W10484480 Whirlpool Refrigerator Door Hinge
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
62252293 Whirlpool Refrigerator Door Hinge
7W11348580 Whirlpool Refrigerator Bin
9WP2266903 Whirlpool Refrigerator Door Gasket
10WP2006346 Whirlpool Refrigerator Washer
112309497S Whirlpool Refrigerator Door Trim
122314003S Whirlpool Refrigerator Trim Cover
13W11700297 Whirlpool Refrigerator Gap Hinge
14W10323748 Whirlpool Refrigerator Cantilever Bin
15WP8281250 Whirlpool Refrigerator Screw
162309487S Whirlpool Refrigerator Door Trim
172259448S Whirlpool Refrigerator Trim Cover
182309498S Whirlpool Refrigerator Door Trim
19TRIM, BOTTOM DOOR (ALUMINUM)
20WPW10323173 Whirlpool Refrigerator Retainer End Cap
20WPW10323172 Whirlpool Refrigerator Retainer End Cap
23BIN-CNTLVR
