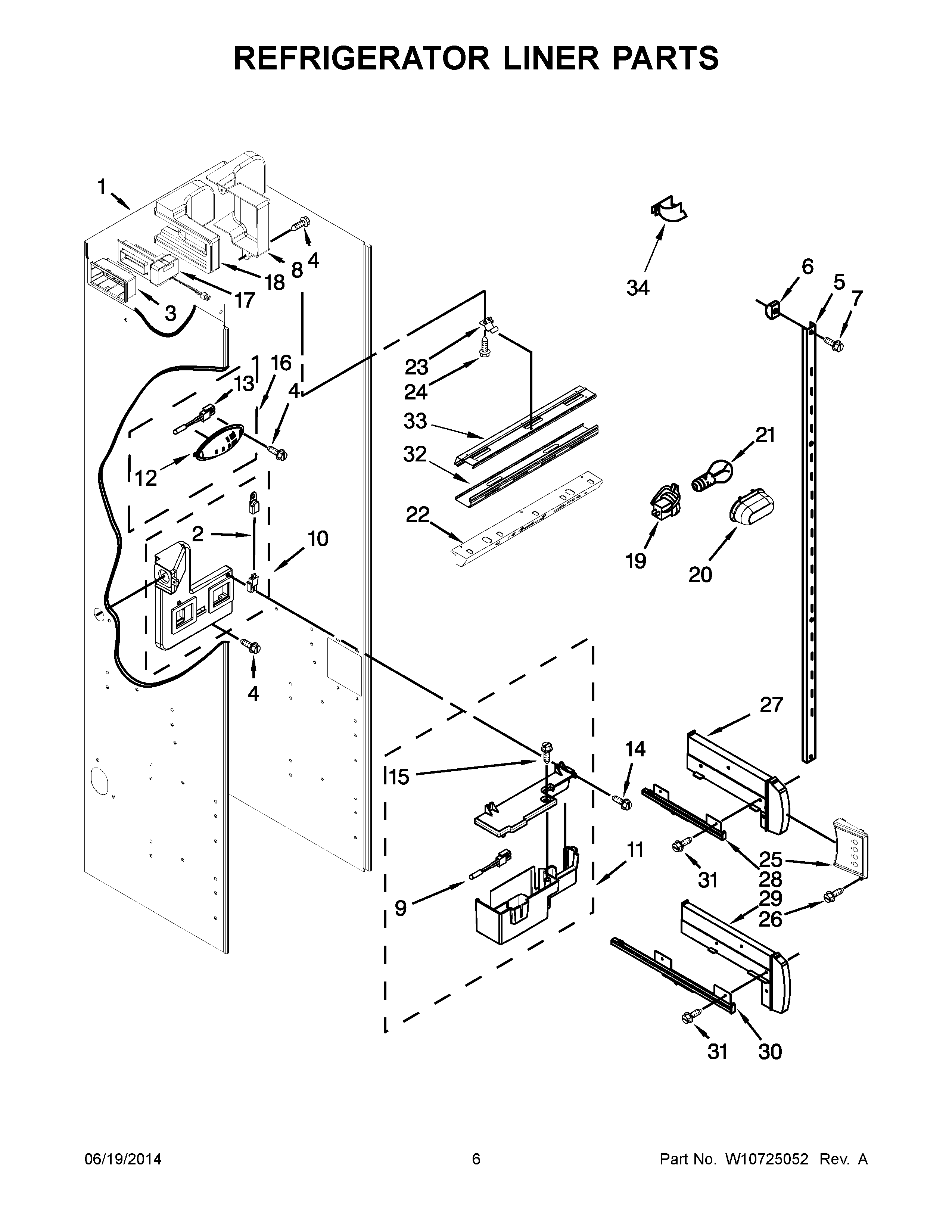

KSSO48FTX20 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2306010 Whirlpool Refrigerator Thermistor
3	2208970 Whirlpool Refrigerator Air Duct
4	WP488729 Whirlpool Refrigerator Door Screw
5	WP2259077 Whirlpool Ladder Assembly
6	520965 Whirlpool Refrigerator Support
7	2006475 Whirlpool Refrigerator Screw
8	2309087 Whirlpool Refrigerator Cover
9	WP2302937 Whirlpool Refrigerator Thermistor
10	W10475010 Whirlpool Refrigerator Spacer
11	WPW10169528 Whirlpool Refrigerator Diffuser
12	WP2317844 Whirlpool Refrigerator Cover
13	WP2188820 Whirlpool Refrigerator Thermistor
15	W11624204 Whirlpool Screw
17	WP2221296 Whirlpool Air Baffle
18	WP2309222 Whirlpool Refrigerator Diffuser
19	WPW10191429 Whirlpool Refrigerator Socket
20	Light Shield
21	WPA3073101 Whirlpool Light Bulb
22	W10691179 Whirlpool Refrigerator Control Box
23	Clip, Control Box
24	WP8281163 Whirlpool Refrigerator Screw
25	WP2306086 Whirlpool Refrigerator Electronic Control Board
26	WPW10142283 Whirlpool Refrigerator Screw
27	2256244 Whirlpool Refrigerator Track
27	2256243 Whirlpool Refrigerator Track
28	2302955 Whirlpool Refrigerator Slide
28	2302954 Whirlpool Refrigerator Slide
29	2256223 Whirlpool Refrigerator Track
29	2256222 Whirlpool Refrigerator Track
30	2302956 Whirlpool Refrigerator Slide
30	2302957 Whirlpool Refrigerator Slide
31	WP3400886 Whirlpool Refrigerator Screw
31	WP8533928 Whirlpool Refrigerator Screw
32	Bracket, Control Box
33	Shield, Light
34	2003577 Whirlpool Refrigerator Guard
