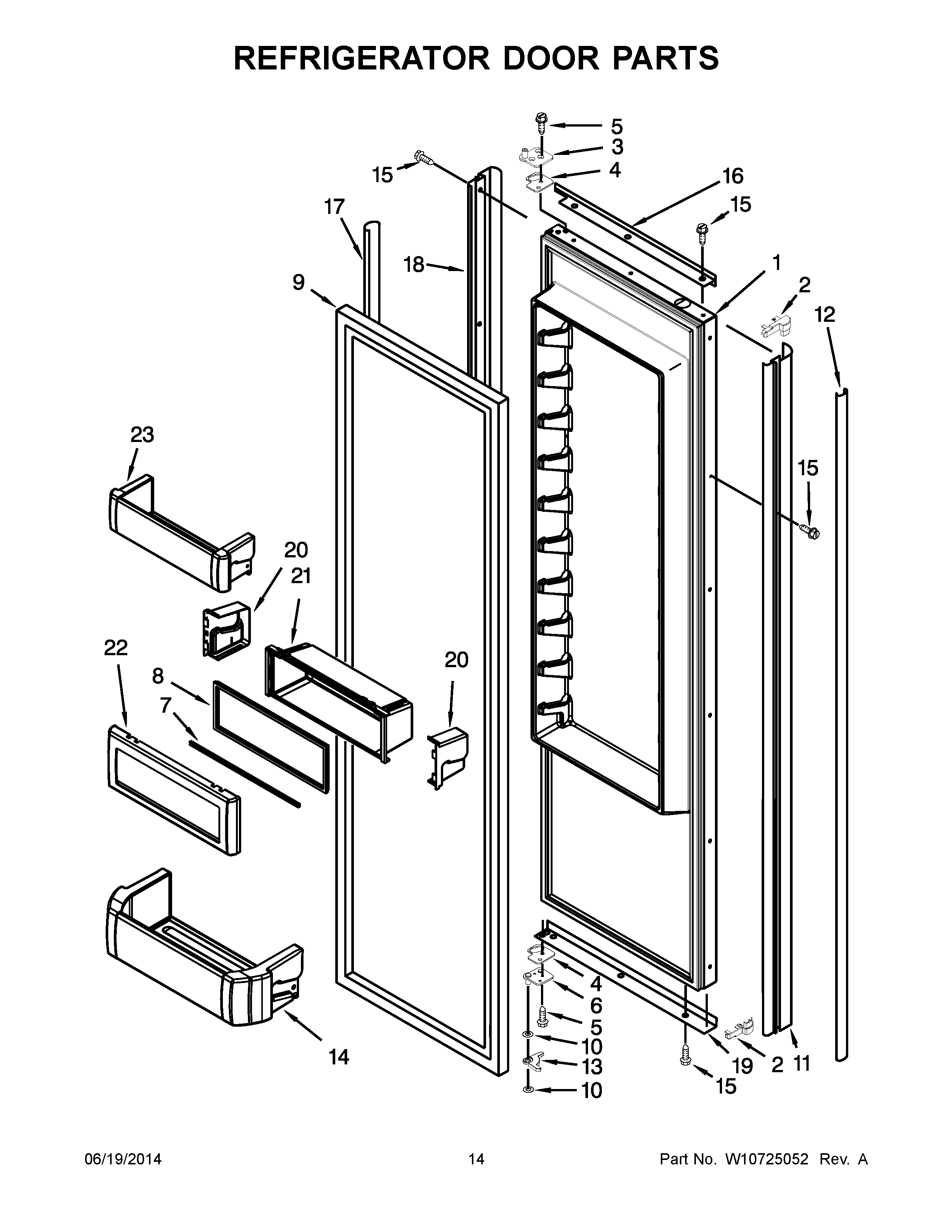

KSSO48FTX20 08 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	LW10193491 Whirlpool Refrigerator FIP Door SS
2	2207457 Whirlpool Refrigerator Door Trim
3	W10484480 Whirlpool Refrigerator Door Hinge
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	2252293 Whirlpool Refrigerator Door Hinge
7	W11348580 Whirlpool Refrigerator Bin
9	WP2266903 Whirlpool Refrigerator Door Gasket
10	WP2006346 Whirlpool Refrigerator Washer
11	2309497S Whirlpool Refrigerator Door Trim
12	2314003S Whirlpool Refrigerator Trim Cover
13	W11700297 Whirlpool Refrigerator Gap Hinge
14	W10323748 Whirlpool Refrigerator Cantilever Bin
15	WP8281250 Whirlpool Refrigerator Screw
16	2309487S Whirlpool Refrigerator Door Trim
17	2259448S Whirlpool Refrigerator Trim Cover
18	2309498S Whirlpool Refrigerator Door Trim
19	TRIM, BOTTOM DOOR (ALUMINUM)
20	WPW10323173 Whirlpool Refrigerator Retainer End Cap
20	WPW10323172 Whirlpool Refrigerator Retainer End Cap
23	BIN-CNTLVR
