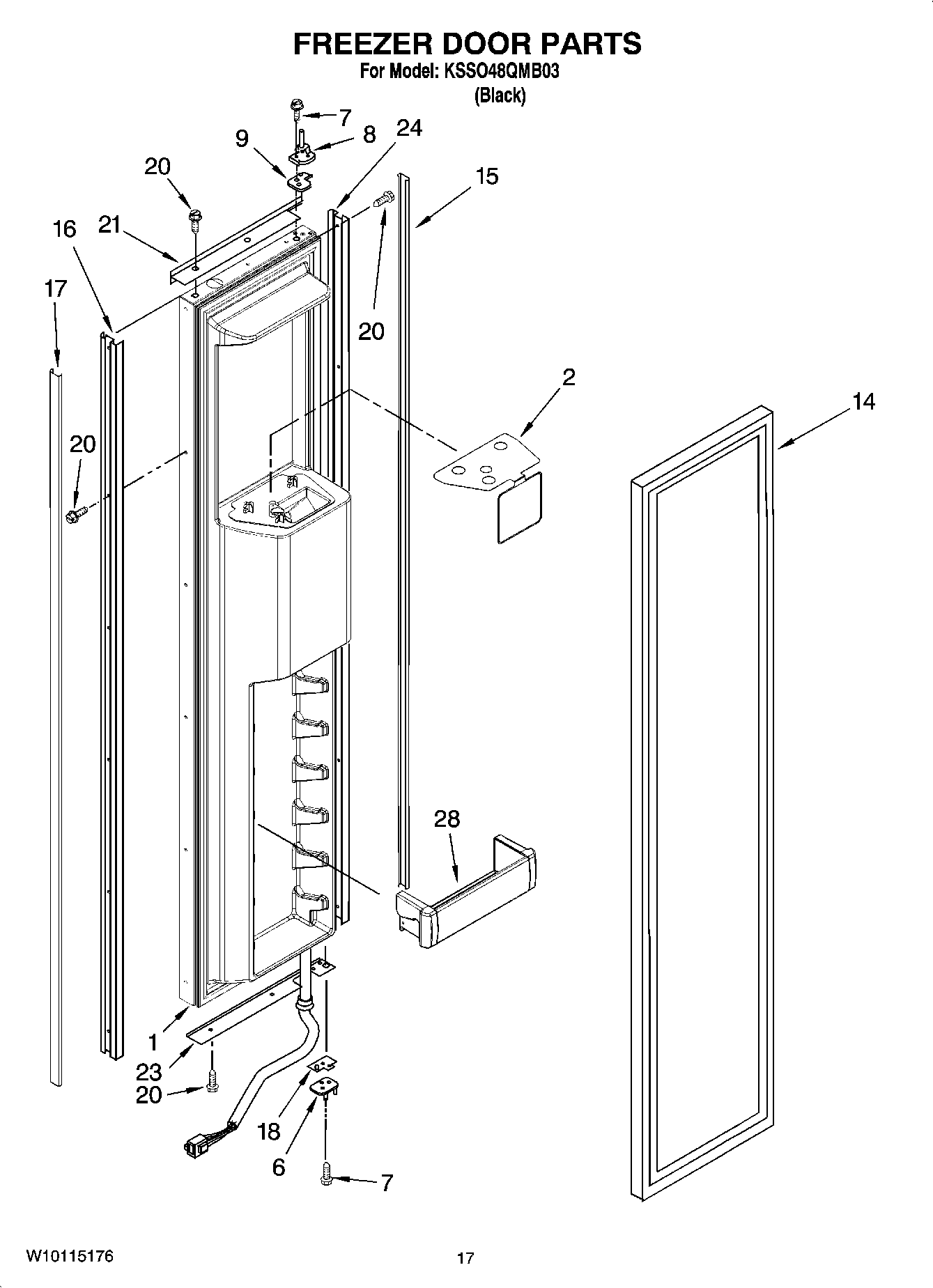

KSSO48QMB03 11 – FREEZER DOOR PARTS

KSSO48QMB03 11 – FREEZER DOOR PARTS

Written by

in

KSSO48QMB03 11 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door Panel (Includes Insulation) (Black)
2Safety Barrier
6HINGE-DOOR
7W11474472 Whirlpool Screw
8W11724512 Whirlpool Door Hinge
9Spacer-Hinge, Top
14WP2266901 Whirlpool Door Gasket
15Trim, Screw Cover (Hinge Side) (Black)
16Trim, Door (Handle Side) (Black)
17Cover, Screw (Handle Side) (Black)
18Door Spacer, Bottom
20W10851443 Whirlpool Refrigerator Screw
21Trim (Top) (Black)
23Trim (Bottom) (Black)
24Trim, Door (Hinge Side) (Black)
28W11590561 Whirlpool Refrigerator Cantilever Bin
