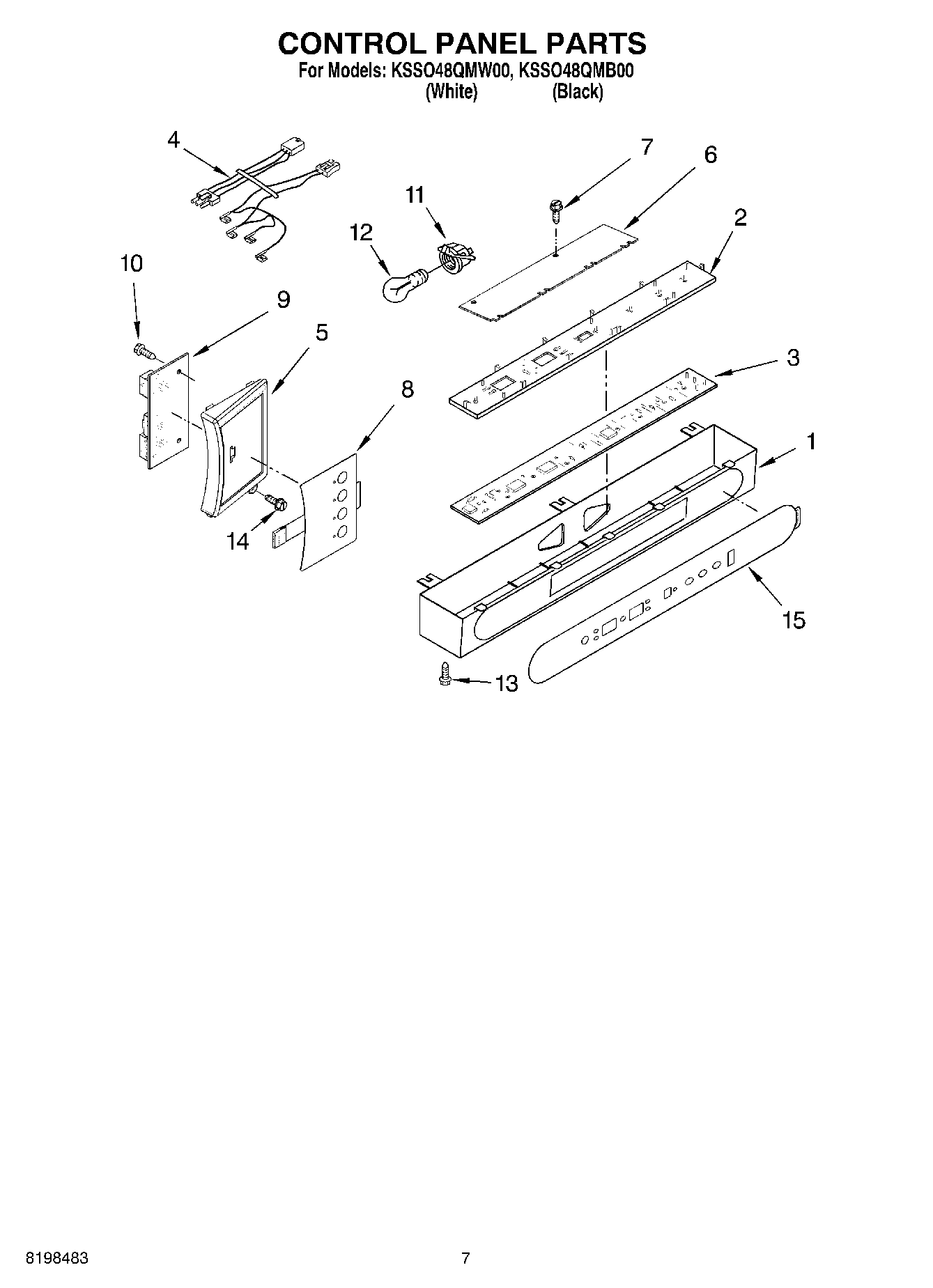

KSSO48QMW00 05 – CONTROL PANEL PARTS

Products

Position	Product
1	CONTRL-BOX
2	Insert, Control Box
3	Circuit Board (User Interface)
4	Harness, Control Box
5	Panel Control, Meat Pan
6	2221121 Whirlpool Refrigerator Support
7	WP488920 Whirlpool Refrigerator Screw
8	Touch Pad, Meat Pan
9	WP2306086 Whirlpool Refrigerator Electronic Control Board
10	2006254 Whirlpool Refrigerator Screw
11	4387478 Whirlpool Refrigerator Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	W11624204 Whirlpool Screw
14	WPW10142283 Whirlpool Refrigerator Screw
15	OVERLAY
