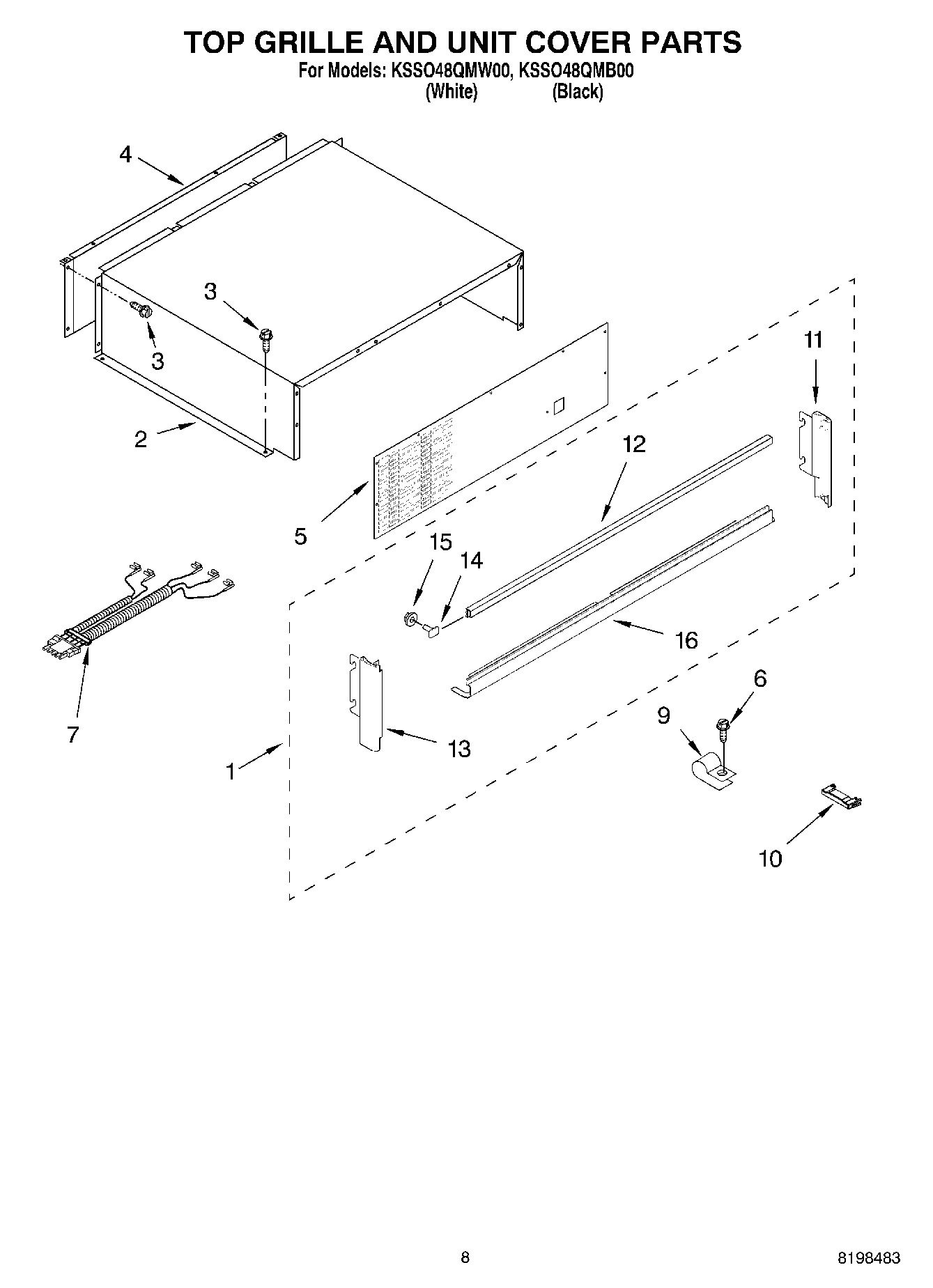

KSSO48QMW00 06 – TOP GRILLE AND UNIT COVER PARTSadmin2025-04-26T12:34:27+00:00KSSO48QMW00 06 – TOP GRILLE AND UNIT COVER PARTS
Products
| Position | Product |
|---|
| 1 | Top Grille Assembly (Black) |
| 1 | Top Grille Assembly (White) |
| 2 | Cover, Unit |
| 3 | W11624204 Whirlpool Screw |
| 4 | 2256466 Whirlpool Refrigerator Unit Cover |
| 5 | Front, Unit Cover |
| 6 | WP965173 Whirlpool Dishwasher Screw |
| 7 | Wire Assembly RC/FC Light Switch |
| 9 | 489348 Whirlpool Refrigerator Tube Clamp |
| 10 | Enclosure, Connector |
| 11 | Trim-Grille, Right Side (White) |
| 11 | Trim-Grille, Right Side (Black) |
| 12 | Grille-Trim, Top (White) |
| 12 | Grille-Trim, Top (Black) |
| 13 | Trim-Grille, Left Side (Black) |
| 13 | Trim-Grille, Left Side (White) |
| 14 | WP488130 Whirlpool Air Conditioner Nut |
| 15 | 2003347 Whirlpool Screw |
| 16 | Grille-Trim, Bottom (Black) |
| 16 | Grille-Trim, Bottom (White) |
