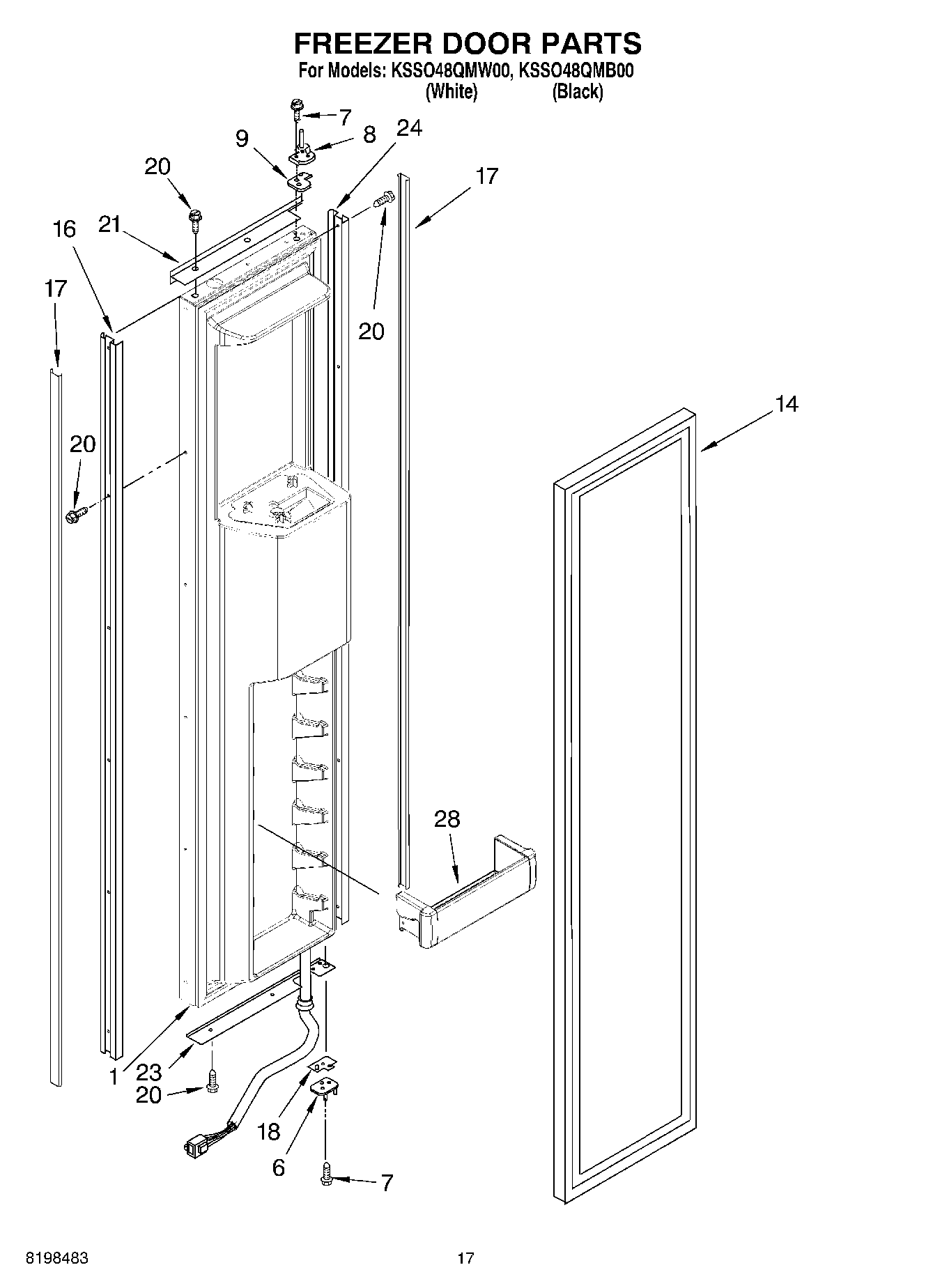

KSSO48QMW00 11 – FREEZER DOOR PARTS

KSSO48QMW00 11 – FREEZER DOOR PARTS

Written by

in

KSSO48QMW00 11 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door Panel (Includes Insulation) (White)
1Freezer Door Panel (Includes Insulation) (Black)
6HINGE-DOOR
7W11474472 Whirlpool Screw
8W11724512 Whirlpool Door Hinge
9Spacer-Hinge, Top
14WP2266901 Whirlpool Door Gasket
16Trim, Door (Handle Side) (White)
16Trim, Door (Handle Side) (Black)
17Cover, Screw (Handle Side) (White)
17Cover, Screw (Handle Side) (Black)
18Door Spacer, Bottom
20Screw 8-15 x 1/2 (White)
20W10851443 Whirlpool Refrigerator Screw
21Trim (Top) (Black)
21Trim (Top) (White)
23Trim (Bottom) (White)
23Trim (Bottom) (Black)
24Trim, Door (Hinge Side) (Black)
24Trim, Door (Hinge Side) (White)
28W11590561 Whirlpool Refrigerator Cantilever Bin
28F.C. (3)
