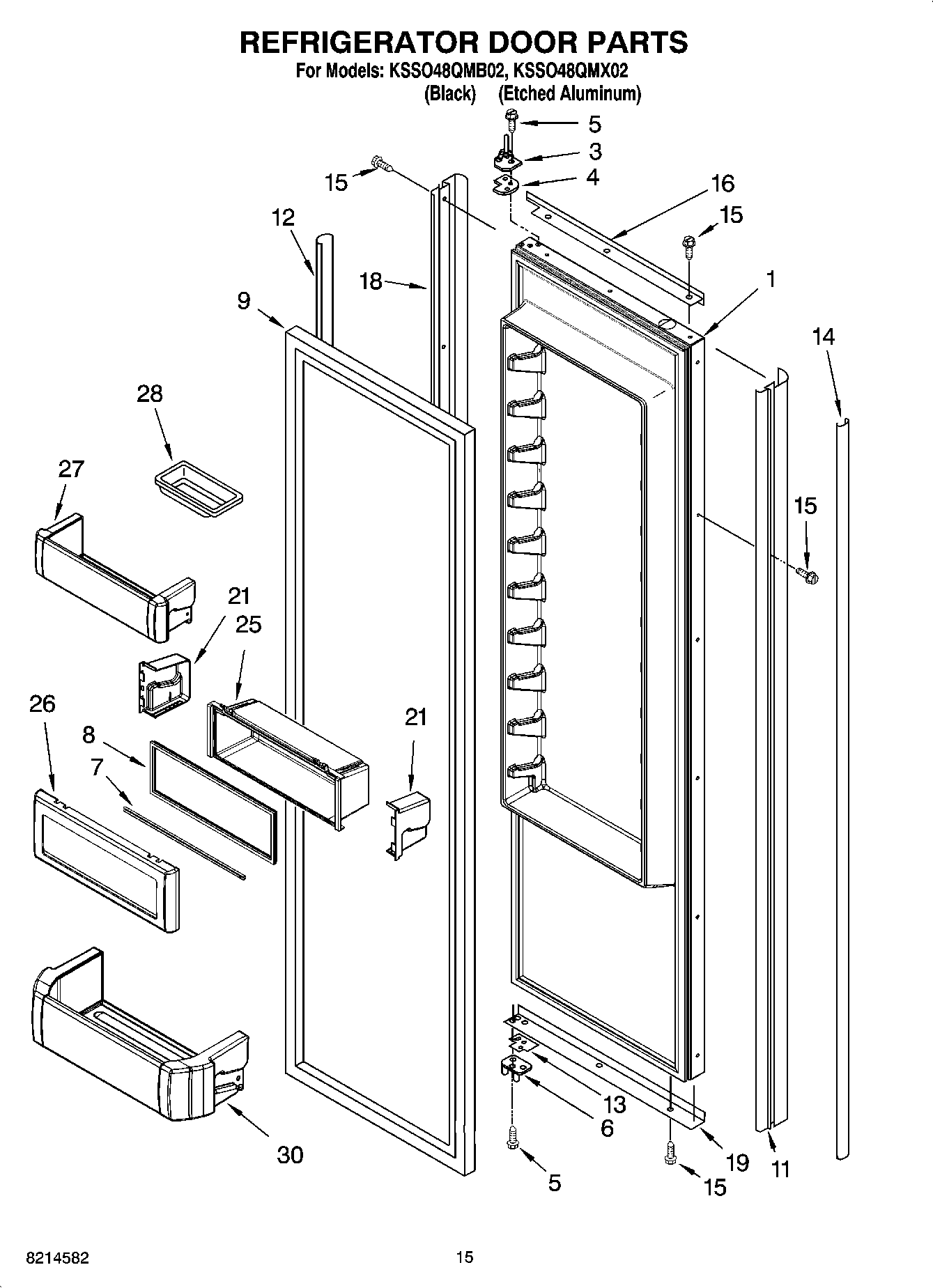

KSSO48QMX02 10 – REFRIGERATOR DOOR PARTSadmin2025-04-26T12:31:31+00:00KSSO48QMX02 10 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | LW10193491 Whirlpool Refrigerator FIP Door SS |
| 3 | W11724512 Whirlpool Door Hinge |
| 4 | Spacer-Hinge, Top |
| 5 | W11474472 Whirlpool Screw |
| 6 | 2302878 Whirlpool Refrigerator Door Hinge |
| 7 | W11348580 Whirlpool Refrigerator Bin |
| 9 | WP2266903 Whirlpool Refrigerator Door Gasket |
| 11 | Trim, Door (Handle Side) (Black) |
| 11 | Trim, Door (Handle Side) (Etched Aluminum) |
| 12 | Cover, Screw |
| 12 | Trim, Screw Cover (Hinge Side) (Black) |
| 13 | Door Spacer, Bottom |
| 14 | Cover, Screw (Handle Side) (Etched Aluminum) |
| 14 | Cover, Screw (Handle Side) (Black) |
| 15 | W10851443 Whirlpool Refrigerator Screw |
| 15 | WP8281250 Whirlpool Refrigerator Screw |
| 16 | Trim (Top) (Black) |
| 16 | Trim (Top) |
| 18 | Trim-Door, (Hinge Side) |
| 18 | Trim, Door (Hinge Side) (Black) |
| 19 | Trim (Bottom) (Etched Aluminum) |
| 19 | Trim (Bottom) (Black) |
| 21 | WPW10323172 Whirlpool Refrigerator Retainer End Cap |
| 21 | WPW10323173 Whirlpool Refrigerator Retainer End Cap |
| 27 | BIN-CNTLVR |
| 28 | Butter Tray |
| 30 | W10323748 Whirlpool Refrigerator Cantilever Bin |
