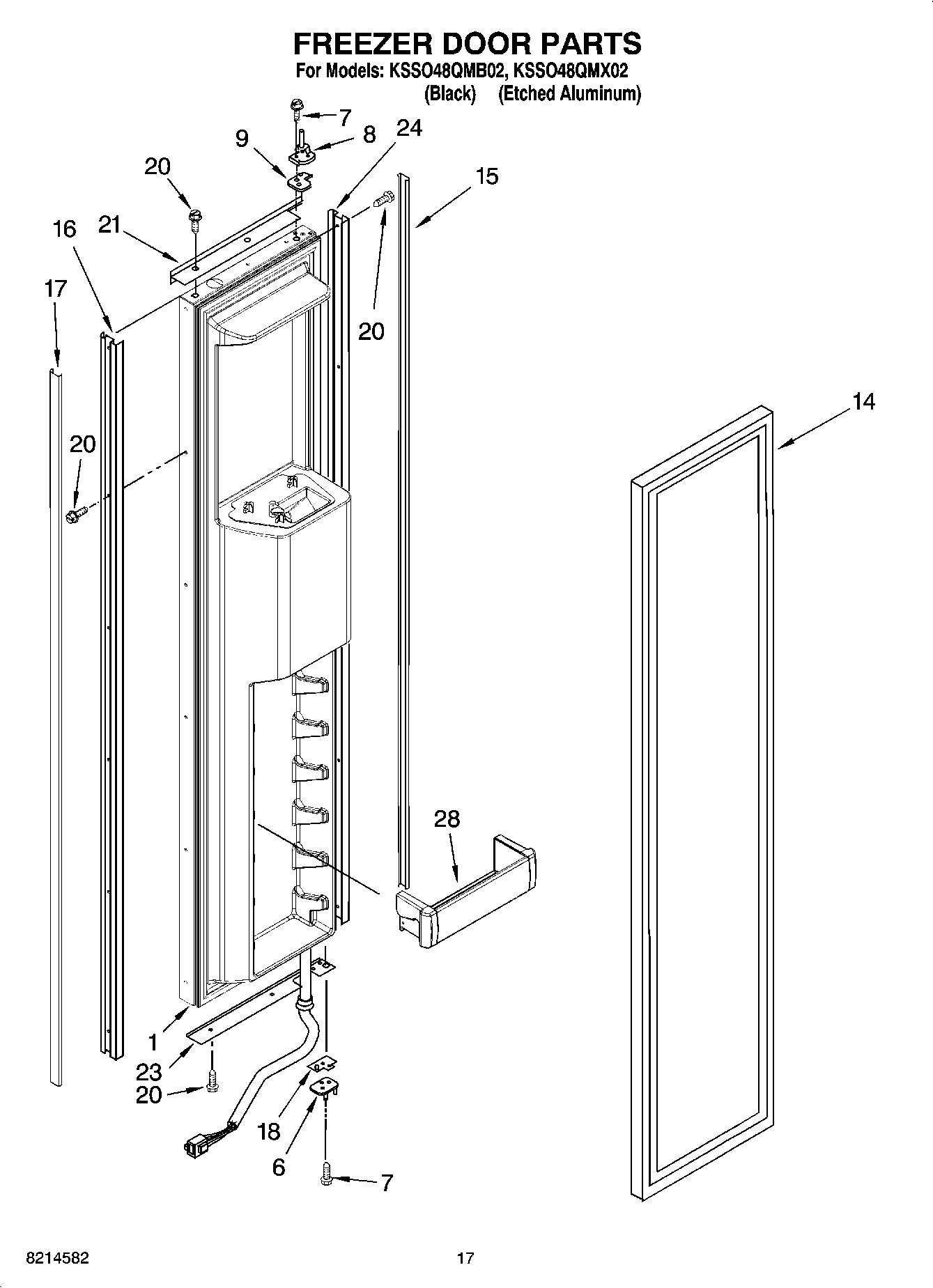

KSSO48QMX02 11 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door Panel (Includes Item 14) L2307847B Black
6	HINGE-DOOR
7	W11474472 Whirlpool Screw
8	W11724512 Whirlpool Door Hinge
9	Spacer-Hinge, Top
14	WP2266901 Whirlpool Door Gasket
15	Cover, Screw
15	Trim, Screw Cover (Hinge Side) (Black)
16	Trim, Door (Handle Side) (Black)
16	Trim, Door (Handle Side) (Etched Aluminum)
17	Cover, Screw (Handle Side) (Black)
17	Cover, Screw (Handle Side) (Etched Aluminum)
18	Door Spacer, Bottom
20	WP8281250 Whirlpool Refrigerator Screw
20	W10851443 Whirlpool Refrigerator Screw
21	Trim (Top) (Black)
21	Trim (Top)
23	Trim (Bottom) (Black)
23	Trim (Bottom) (Etched Aluminum)
24	Trim-Door, (Hinge Side)
24	Trim, Door (Hinge Side) (Black)
28	W11590561 Whirlpool Refrigerator Cantilever Bin
28	F.C. (3)
