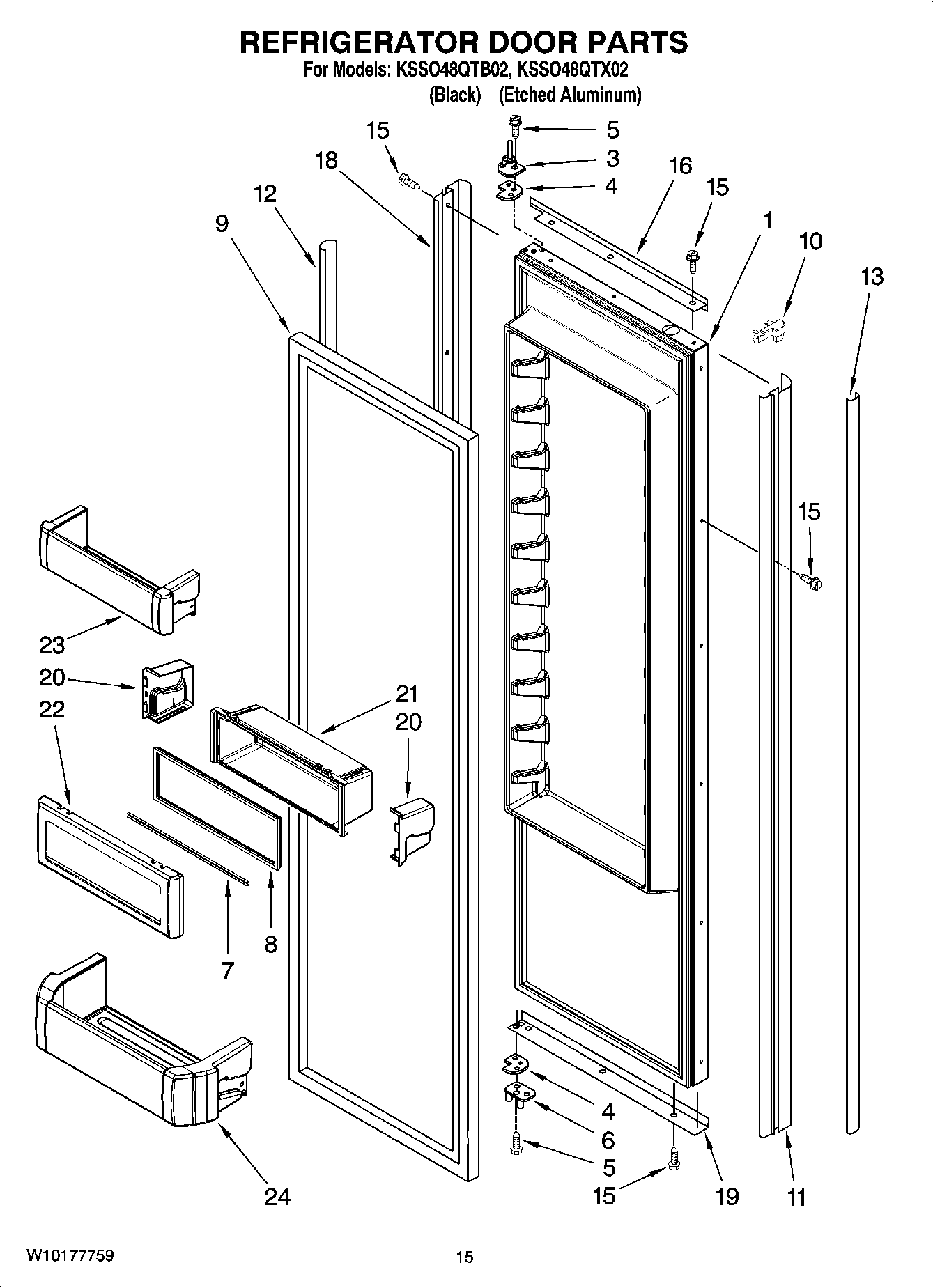

KSSO48QTB02 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	LW10193491 Whirlpool Refrigerator FIP Door SS
3	2252295B Whirlpool Refrigerator Door Hinge
3	Hinge Assy, Top (Chrome)
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	2252293 Whirlpool Refrigerator Door Hinge
6	2252293B Whirlpool Door Hinge
7	W11348580 Whirlpool Refrigerator Bin
9	WP2266903 Whirlpool Refrigerator Door Gasket
10	Corner Trim (Black)
10	2207457 Whirlpool Refrigerator Door Trim
11	Trim-Door, (Handle Side) (Black)
11	2309497S Whirlpool Refrigerator Door Trim
12	Trim, Screw Cover (Hinge Side) (Black)
12	2259448S Whirlpool Refrigerator Trim Cover
13	Trim, Screw Cover (Handle Side) (Black)
13	2314003S Whirlpool Refrigerator Trim Cover
15	W10851443 Whirlpool Refrigerator Screw
15	WP8281250 Whirlpool Refrigerator Screw
16	Trim-Door, Top (Black)
16	2309487S Whirlpool Refrigerator Door Trim
18	2309498S Whirlpool Refrigerator Door Trim
18	Trim-Door, (Hinge Side) (Black)
19	Trim-Door, Btm (Black)
19	TRIM, BOTTOM DOOR (ALUMINUM)
20	WPW10323172 Whirlpool Refrigerator Retainer End Cap
20	WPW10323173 Whirlpool Refrigerator Retainer End Cap
23	BIN-CNTLVR
24	W10323748 Whirlpool Refrigerator Cantilever Bin
