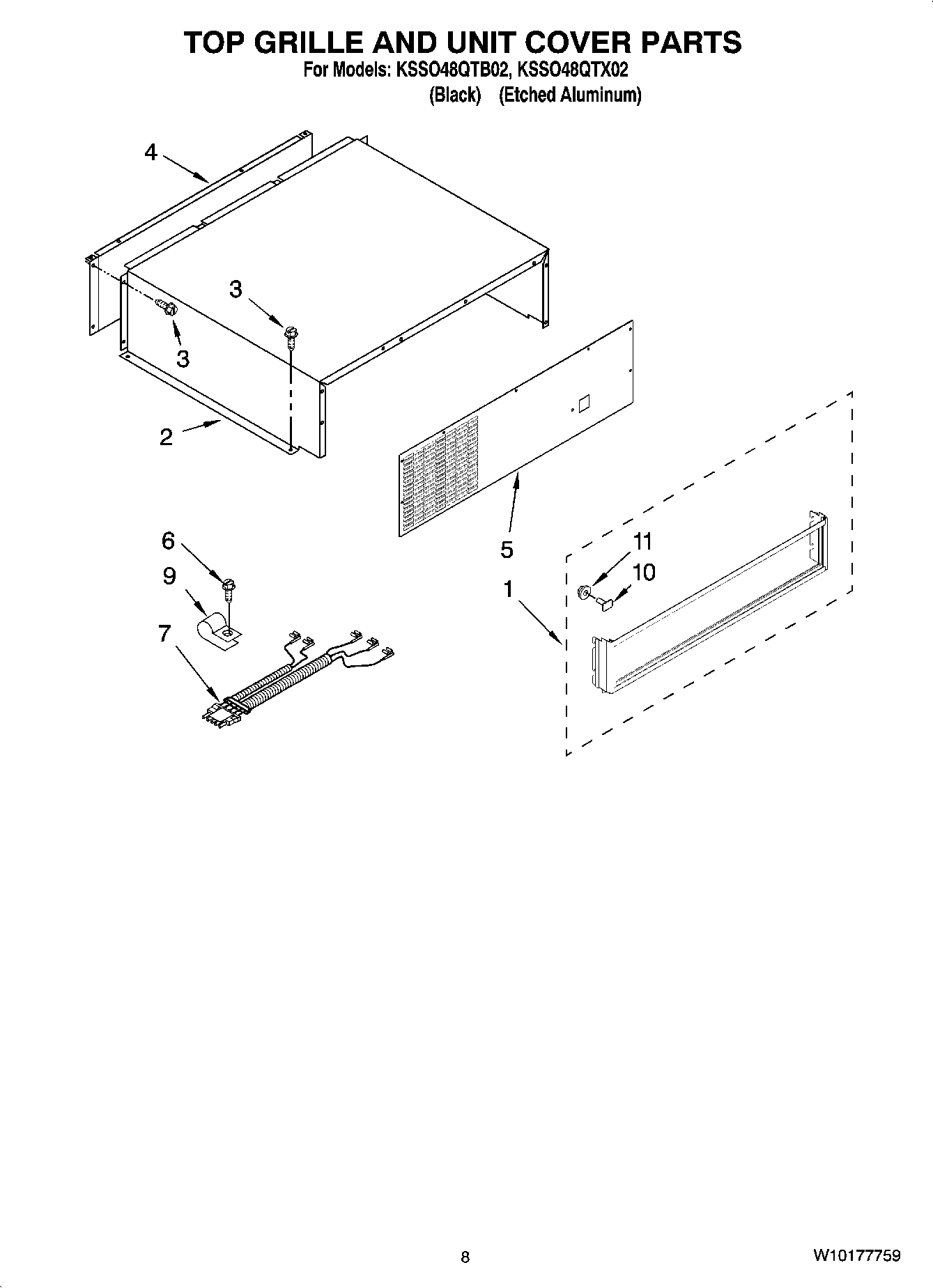

KSSO48QTX02 06 – TOP GRILLE AND UNIT COVER PARTS

KSSO48QTX02 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSO48QTX02 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Panel, Decorative Assembly (Black)
1ASSEMBLY, TOP GRILLE (ALUMINUM)
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Cover, Unit Front
6WP965173 Whirlpool Dishwasher Screw
7WIRE ASSEMBLY RC/FC LIGHT SWITCH
9489348 Whirlpool Refrigerator Tube Clamp
10WP488130 Whirlpool Air Conditioner Nut
112003347 Whirlpool Screw
