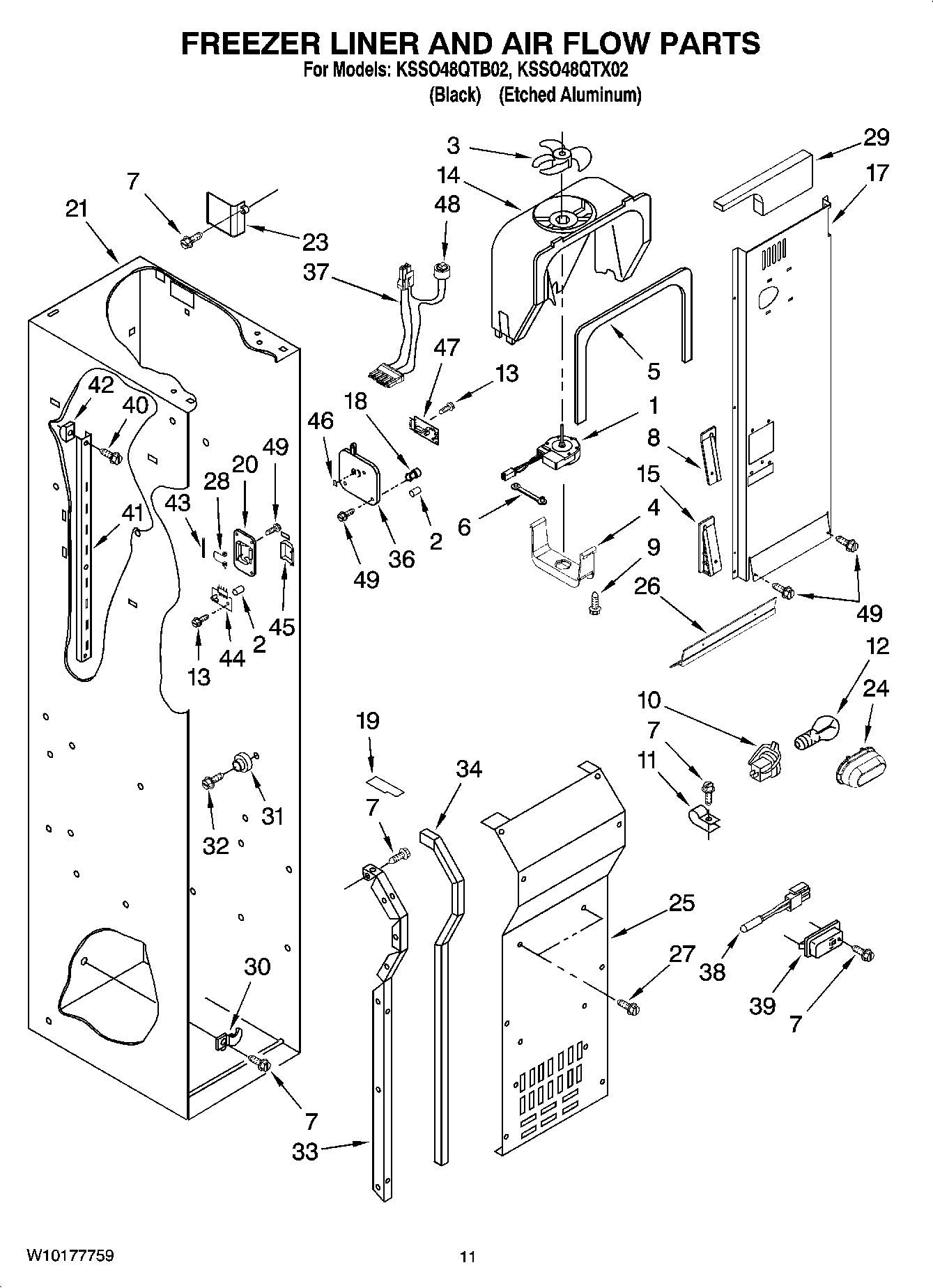

KSSO48QTX02 08 – FREEZER LINER AND AIR FLOW PARTS

KSSO48QTX02 08 – FREEZER LINER AND AIR FLOW PARTS

Written by

in

KSSO48QTX02 08 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1Motor, Fan
2Tube, P.C. Board
3WP2169142 Whirlpool Fan Blade
48201663 Whirlpool Refrigerator Primary Fan Blade
5WP2302817 Whirlpool Refrigerator Gasket
6W11669856 Whirlpool Grommet
7W11624204 Whirlpool Screw
82259464 Whirlpool Refrigerator Wedge
9WP489128 Whirlpool Refrigerator Screw
10WPW10191429 Whirlpool Refrigerator Socket
11Clamp, Tube
12WPA3073101 Whirlpool Light Bulb
132006254 Whirlpool Refrigerator Screw
14WP2182120 Whirlpool Refrigerator Scroll Fan
152259465 Whirlpool Refrigerator Wedge
17Air Duct
18WP2198643 Whirlpool Refrigerator Lens
198201798 Whirlpool Refrigerator Fan Block
192209066 Whirlpool Refrigerator Fan Block
20WP2215650 Whirlpool Refrigerator Cover
21Liner (Not A Serviceable Part)
232259025 Whirlpool Refrigerator Air Cover
24Light Shield
25Cover, Evaporator
262302851 Whirlpool Support
27WP488729 Whirlpool Refrigerator Door Screw
28WP2198635 Whirlpool Refrigerator Spring
29Deflector, Air Duct
301112260 Whirlpool EV Support
31WP2196483 Whirlpool Refrigerator Shelf Stud
32WP3400806 Whirlpool Screw
332259355 Whirlpool Refrigerator Evaporator Rail
33Evaporator, Cover Rail (Left Side)
342220904 Whirlpool Refrigerator Gasket
362259493 Whirlpool Refrigerator Cover
37W10139189 Whirlpool Refrigerator Wire Harness
38WP2306010 Whirlpool Refrigerator Thermistor
39WP2317844 Whirlpool Refrigerator Cover
402006475 Whirlpool Refrigerator Screw
41WP2259032 Whirlpool Ladder
422259445 Whirlpool Support Assembly
43WP2198634 Whirlpool Door Pin
44W10757851-includeCORE Whirlpool Electronic Control+Core
45WP2198633 Whirlpool Refrigerator Flipper
462255563 Whirlpool Refrigerator Slide
48WPW10160570 Whirlpool Refrigerator Bimetallic Defrost
49WPW10142283 Whirlpool Refrigerator Screw
