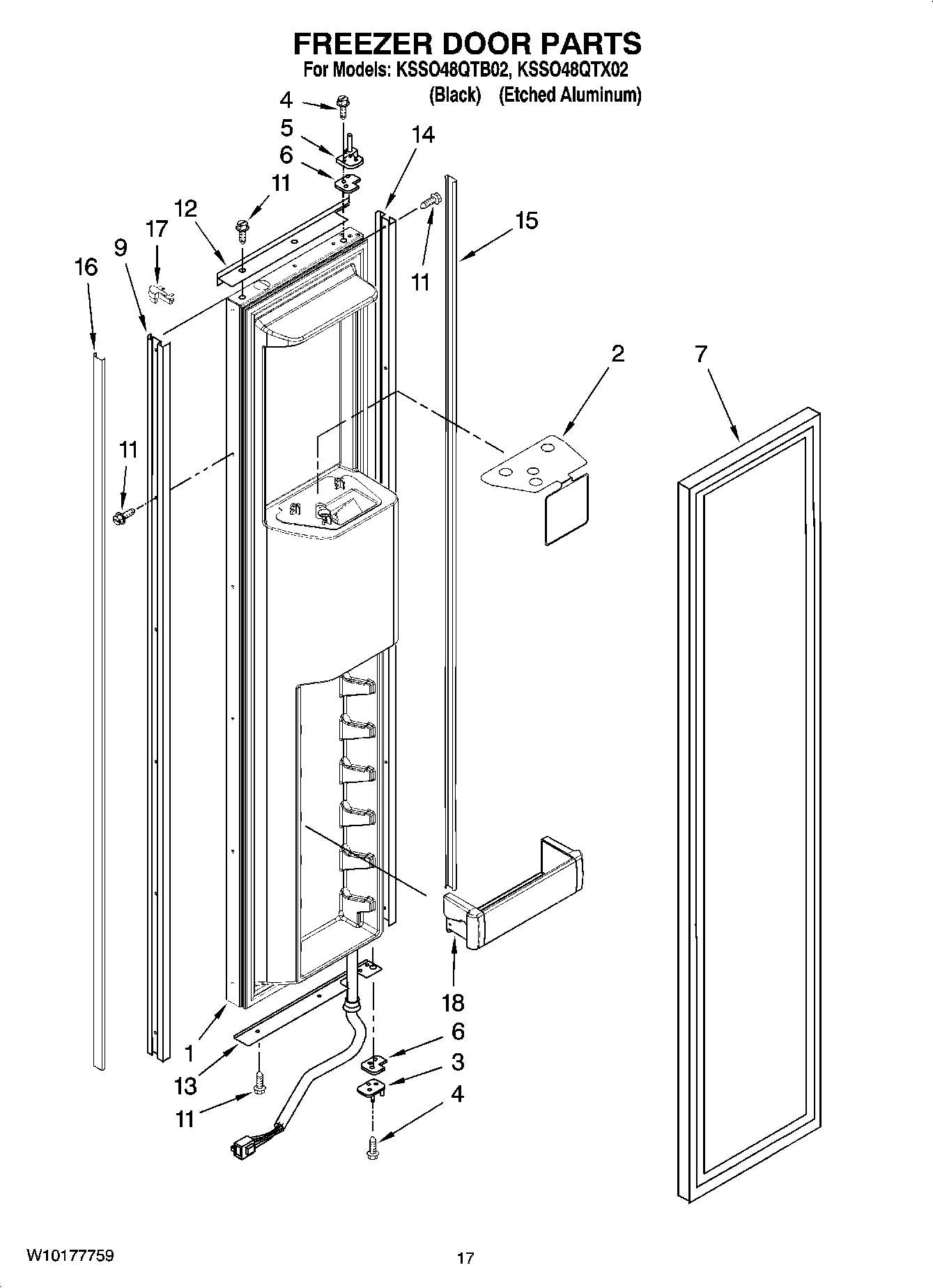

KSSO48QTX02 11 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 7) (Universal Silver)
1	Freezer Door (Includes 7) (Black)
2	Safety Barrier
3	2252294 Whirlpool Refrigerator Door Hinge
3	2252294B Whirlpool Refrigerator Door Hinge
4	W11474472 Whirlpool Screw
5	2252295B Whirlpool Refrigerator Door Hinge
5	Hinge Assy, Top (Chrome)
6	W11673500 Whirlpool Door Hinge
7	WP2266901 Whirlpool Door Gasket
9	2309497S Whirlpool Refrigerator Door Trim
9	Trim-Door, (Handle Side) (Black)
11	W10851443 Whirlpool Refrigerator Screw
11	WP8281250 Whirlpool Refrigerator Screw
12	Trim-Door, Top (Black)
12	2309490S Whirlpool Refrigerator Door Trim
13	Trim-Door, Btm (Black)
13	2309496S Whirlpool Refrigerator Door Trim
14	2309498S Whirlpool Refrigerator Door Trim
14	Trim-Door, (Hinge Side) (Black)
15	Trim, Screw Cover (Hinge Side) (Black)
15	2259448S Whirlpool Refrigerator Trim Cover
16	2314003S Whirlpool Refrigerator Trim Cover
16	Trim, Screw Cover (Handle Side) (Black)
17	Corner Trim (Black)
17	2207457 Whirlpool Refrigerator Door Trim
18	W11590561 Whirlpool Refrigerator Cantilever Bin
