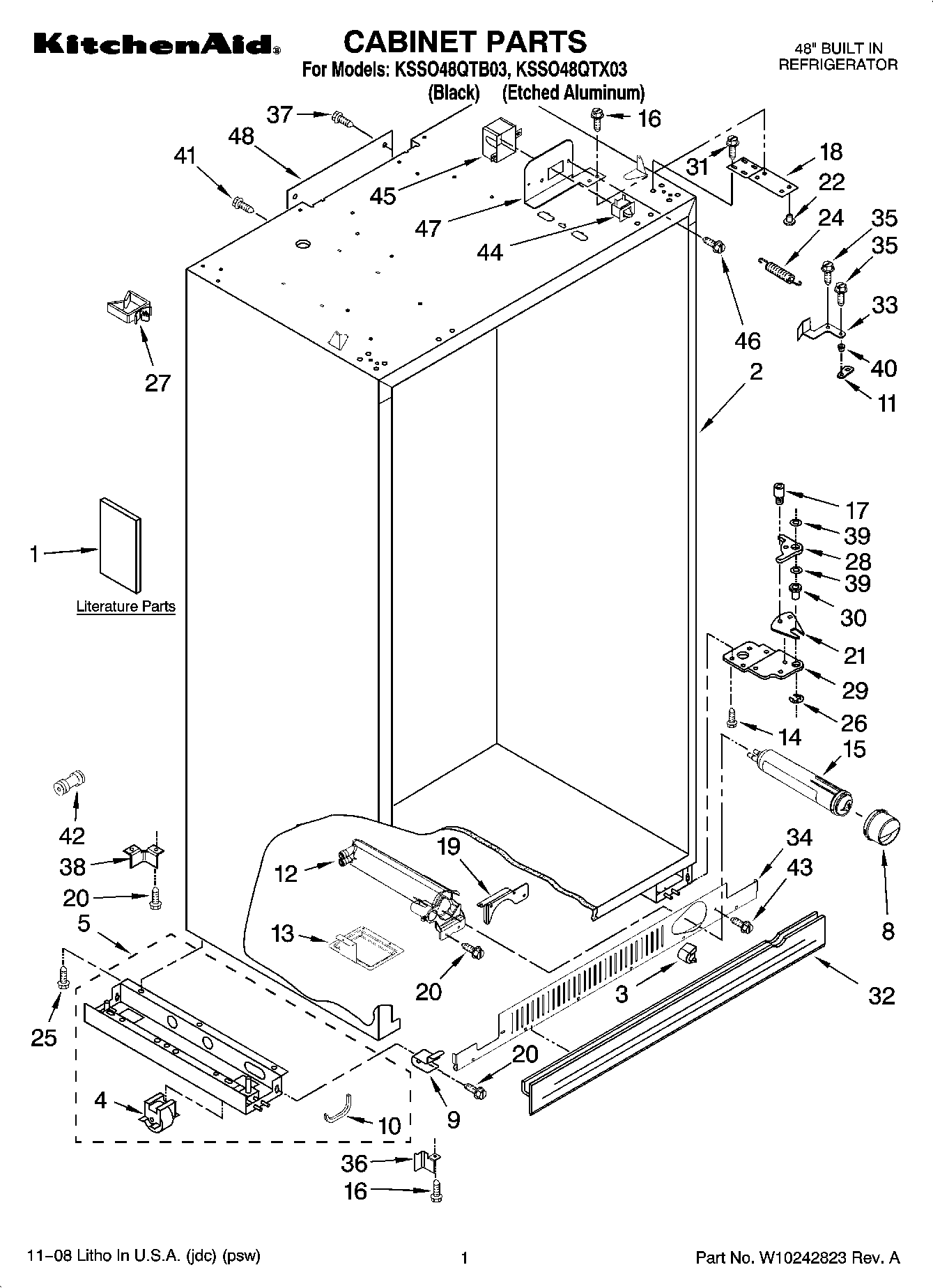

KSSO48QTX03 01 – CABINET PARTS

KSSO48QTX03 01 – CABINET PARTS

Written by

in

KSSO48QTX03 01 – CABINET PARTS

Products

Position	Product
1	Installation Instructions
1	Icemaker and Ingredient Care Center Service Sheet
1	Service & Wiring Sheet
1	Main Control Service Sheet
1	Use & Care Guide
1	Energy Guide
1	Instr Sheet, Front Water Connect
2	Cabinet, (Not A Serviceable Part)
3	WP2260503B Whirlpool Refrigerator Button
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860448 Whirlpool Refrigerator Support
5	W10860229 Whirlpool Refrigerator Support
8	WP2260518B Whirlpool Water Filter Cap
9	W10839844 Whirlpool Refrigerator Bracket
10	2307584 Whirlpool Refrigerator Grommet
11	Cam-Closer, Door
12	WPW10121140 Whirlpool Refrigerator Housing
13	2318189 Whirlpool Refrigerator Drip Pan
14	Screw
15	FILTER 3-SINGLE TEAL
16	WP489399 Whirlpool Refrigerator Screw
17	SCREW
18	2252291B Whirlpool Door Hinge
18	2252292 Whirlpool Refrigerator Door Hinge
18	2252291 Whirlpool Refrigerator Door Hinge
18	2252292B Whirlpool Refrigerator Door Hinge
19	W10674648 Whirlpool Refrigerator Bracket
20	WP489464 Whirlpool Refrigerator Screw
21	WP2004994 Whirlpool Refrigerator Hinge Bushing
22	Bushing
24	WP2004517 Whirlpool Refrigerator Spring
25	W11624204 Whirlpool Screw
26	WP489236 Whirlpool Refrigerator Ring
27	CLIP, TUBE
28	Gap, Cover Assembly (Bottom)
29	2309471 Whirlpool Refrigerator Door Hinge
29	2309472 Whirlpool Refrigerator Hinge
30	WP2302876 Whirlpool Refrigerator Hinge Bushing
31	W11189635 Whirlpool Refrigerator Screw
32	Skirt-Grille, Bottom
33	W11418227 Whirlpool Refrigerator Extension
33	WPL 2267193B
33	Extension Arm, Door Closer (Right, Bla
33	W11416733 Whirlpool Refrigerator Extension
34	Grille Bottom, Front (Black)
35	Screw
36	2006556 Whirlpool Refrigerator Bracket
36	2006616 Whirlpool Refrigerator Bracket
37	WP489069 Whirlpool Compactor Screw
38	2006617 Whirlpool Refrigerator Bracket
39	WP2006346 Whirlpool Refrigerator Washer
40	WP2316859 Whirlpool Refrigerator Bushing
41	WP1163283 Whirlpool Air Conditioner Screw
42	WP2300868 Whirlpool Refrigerator Fitting
42	WP4373559 Whirlpool Fitting
43	WP8281163 Whirlpool Refrigerator Screw
44	W11457217 Whirlpool Refrigerator Rocker Switch Combination
44	W11384469 Whirlpool Door Switch
45	2215938 Whirlpool Refrigerator Switch Cover
46	WP965173 Whirlpool Dishwasher Screw
47	2221096 Whirlpool Refrigerator Bracket
47	2221097 Whirlpool Refrigerator Bracket
48	2215612 Whirlpool Refrigerator Duct Cover
