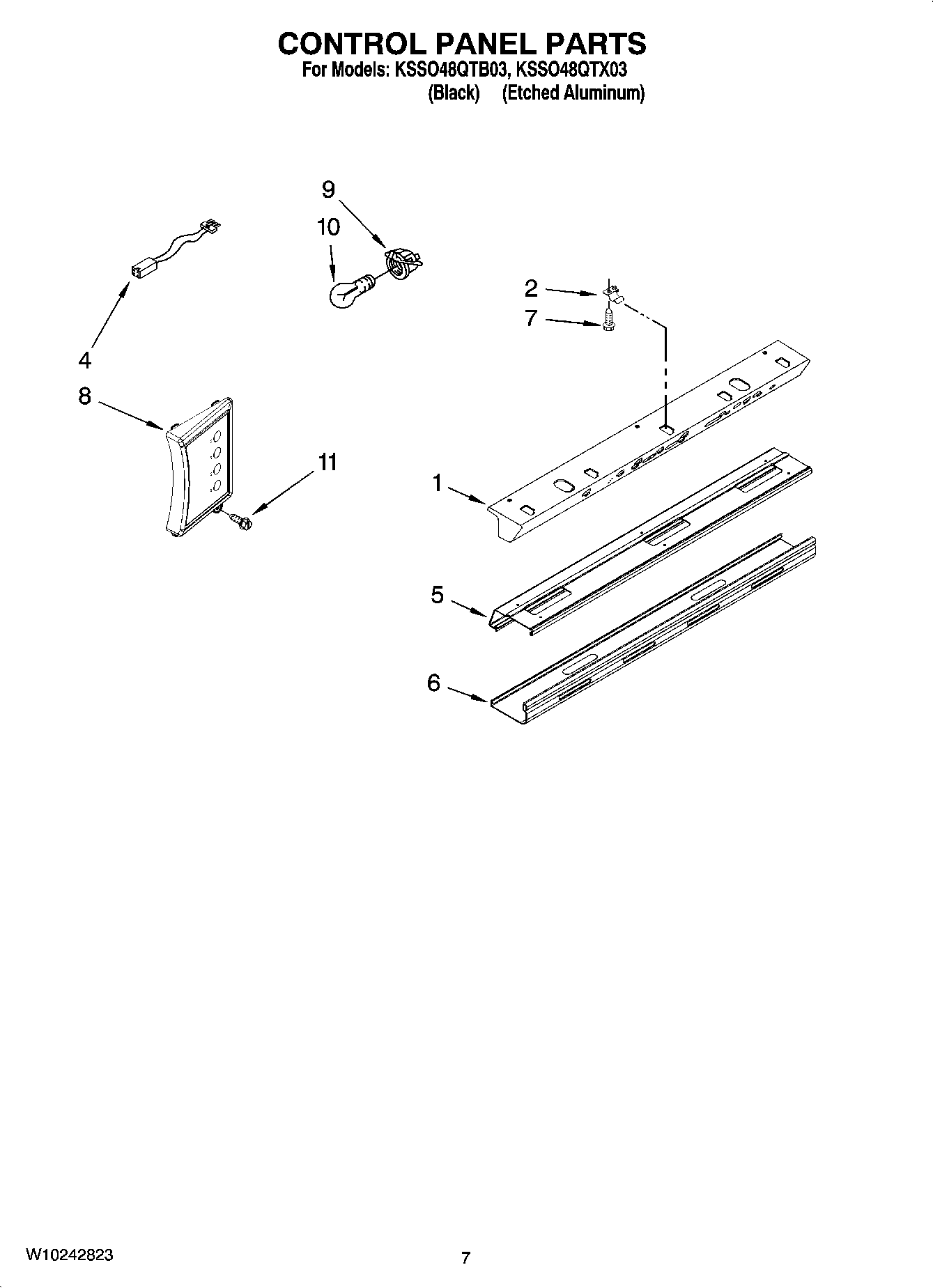

KSSO48QTX03 05 – CONTROL PANEL PARTS

KSSO48QTX03 05 – CONTROL PANEL PARTS

Written by

in

KSSO48QTX03 05 – CONTROL PANEL PARTS

Products

PositionProduct
1WPW10468941 Whirlpool Refrigerator Control Box
2Clip, Control Box
42310390 Whirlpool Refrigerator Wire Assembly
5Bracket, Control Box
6Shield, Light
7WP488729 Whirlpool Refrigerator Door Screw
8WP2306086 Whirlpool Refrigerator Electronic Control Board
9WPW10191429 Whirlpool Refrigerator Socket
10WPA3073101 Whirlpool Light Bulb
11WPW10142283 Whirlpool Refrigerator Screw
