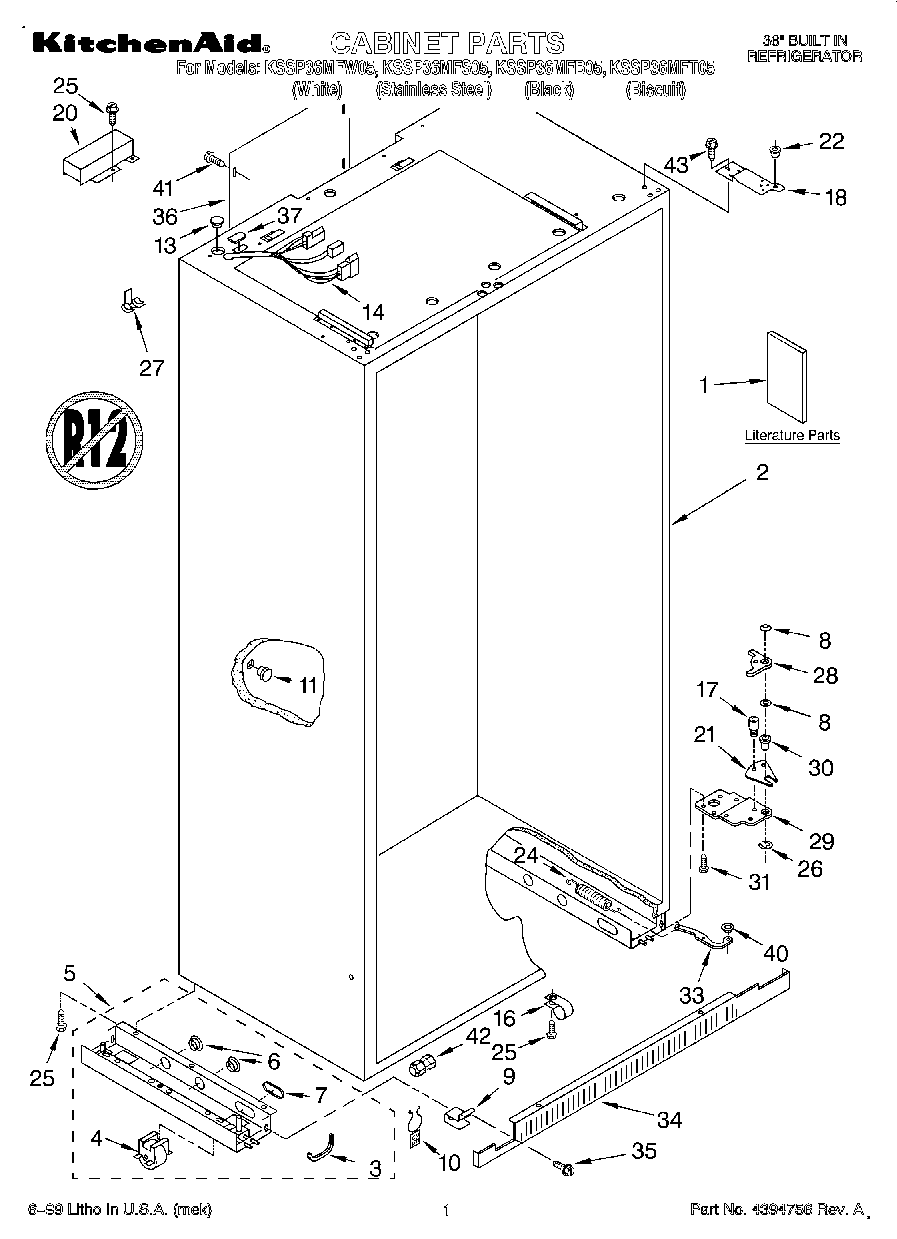

KSSP36MFB05 01 – CABINET, LITERATURE

Products

Position	Product
1	LITERATURE PARTS (Energy Label)
1	Modular Icemaker Service Sheet
1	Service & Wiring Sheet
1	Installation Instructions
1	Use & Care Guide
2	Cabinet (Not A Serviceable Part)
3	Grommet, Crossover Tube
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860448 Whirlpool Refrigerator Support
5	W10860229 Whirlpool Refrigerator Support
6	Grommet, Wiring
7	Grommet, Flexible
8	WP2006346 Whirlpool Refrigerator Washer
9	Mounting Bracket, Grill
10	Clip, Wire
11	Cap, Grommet
13	Grommet, Wiring
14	Wiring Harness, Cabinet
16	488946 Whirlpool Air Conditioner Clamp
17	WP2005378 Whirlpool Refrigerator Screw
18	2257644 Whirlpool Refrigerator Door Hinge
20	Guard, Wiring
21	WP2004994 Whirlpool Refrigerator Hinge Bushing
22	Bushing
24	Spring, Door Closure
25	W11624204 Whirlpool Screw
26	WP489236 Whirlpool Refrigerator Ring
27	Fastener (3)
28	Gap, Cover Assembly (Bottom)
29	WP2006780 Whirlpool Refrigerator Door Hinge
29	W10527053 Whirlpool Refrigerator Door Hinge
30	WP2302876 Whirlpool Refrigerator Hinge Bushing
33	Linkage, Door Closure
34	Grille Base, Front (White)
34	Grille Base, Front (Black)
35	Screw
36	Cover, Rear
37	Grommet, Wiring
40	WPL 2004565
41	WP1163283 Whirlpool Air Conditioner Screw
42	WP4211117 Whirlpool Refrigerator Connector
43	WP8204624 Whirlpool Bolt
