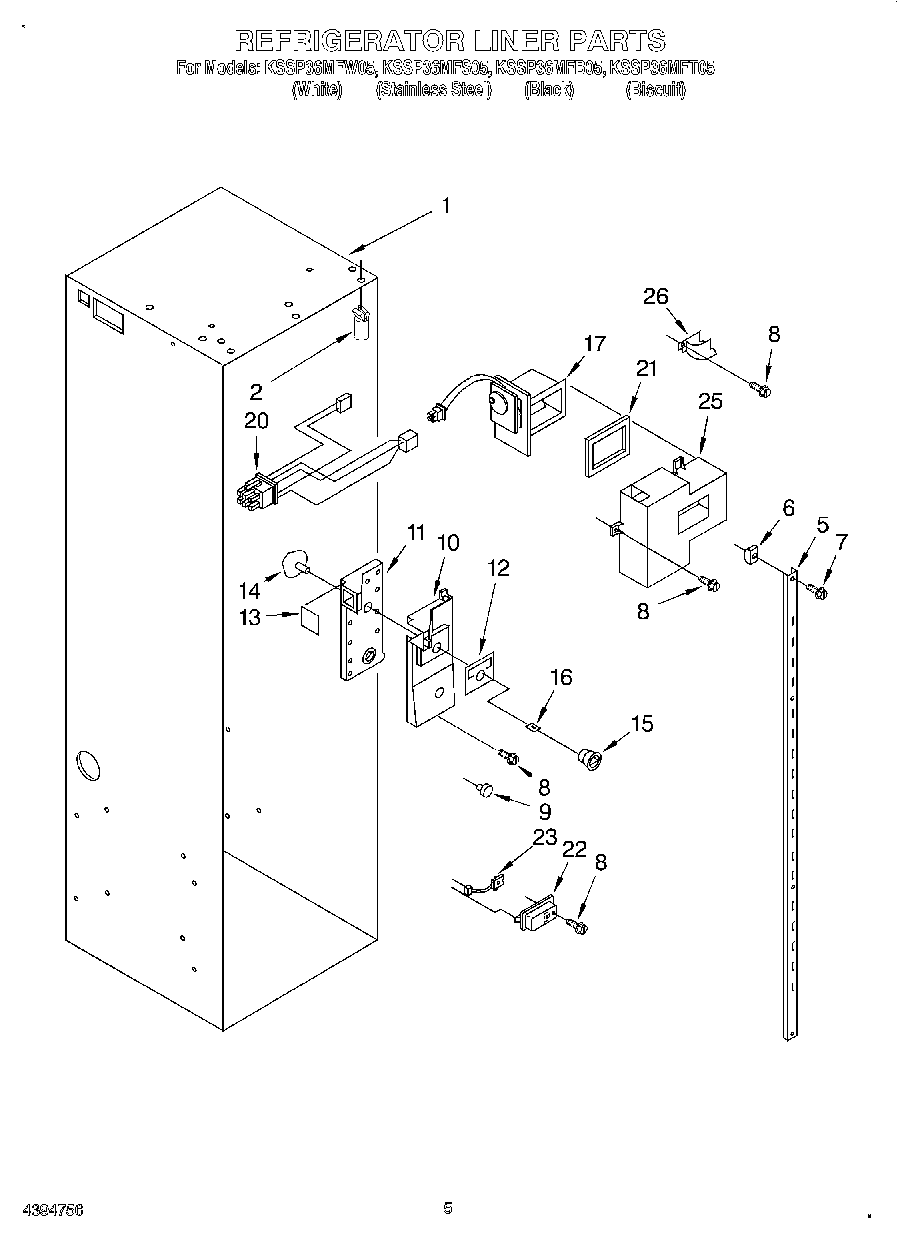

KSSP36MFS05 04 – REFRIGERATOR LINER

KSSP36MFS05 04 – REFRIGERATOR LINER

Written by

in

KSSP36MFS05 04 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Spacer, Control Panel (3)
5Ladder, Shelf (2)
6520965 Whirlpool Refrigerator Support
7Screw, 8 x 1-1/4 (3)
8W11624204 Whirlpool Screw
9Hole Plug
10Meat Pan, Air Duct Cover
11Meat Pan, Air Duct
12Inlay, Control Meat Pan
13Seal, Air Duct
14Damper Control, Meat Pan
15Control Knob, Meat Pan
16Retainer, Knob
17Air Baffle Assembly
20Wiring Harness, Air Baffle
21Seal
221116793 Whirlpool Refrigerator Cover
23Thermistor
25Air Baffle Cover
262003577 Whirlpool Refrigerator Guard
