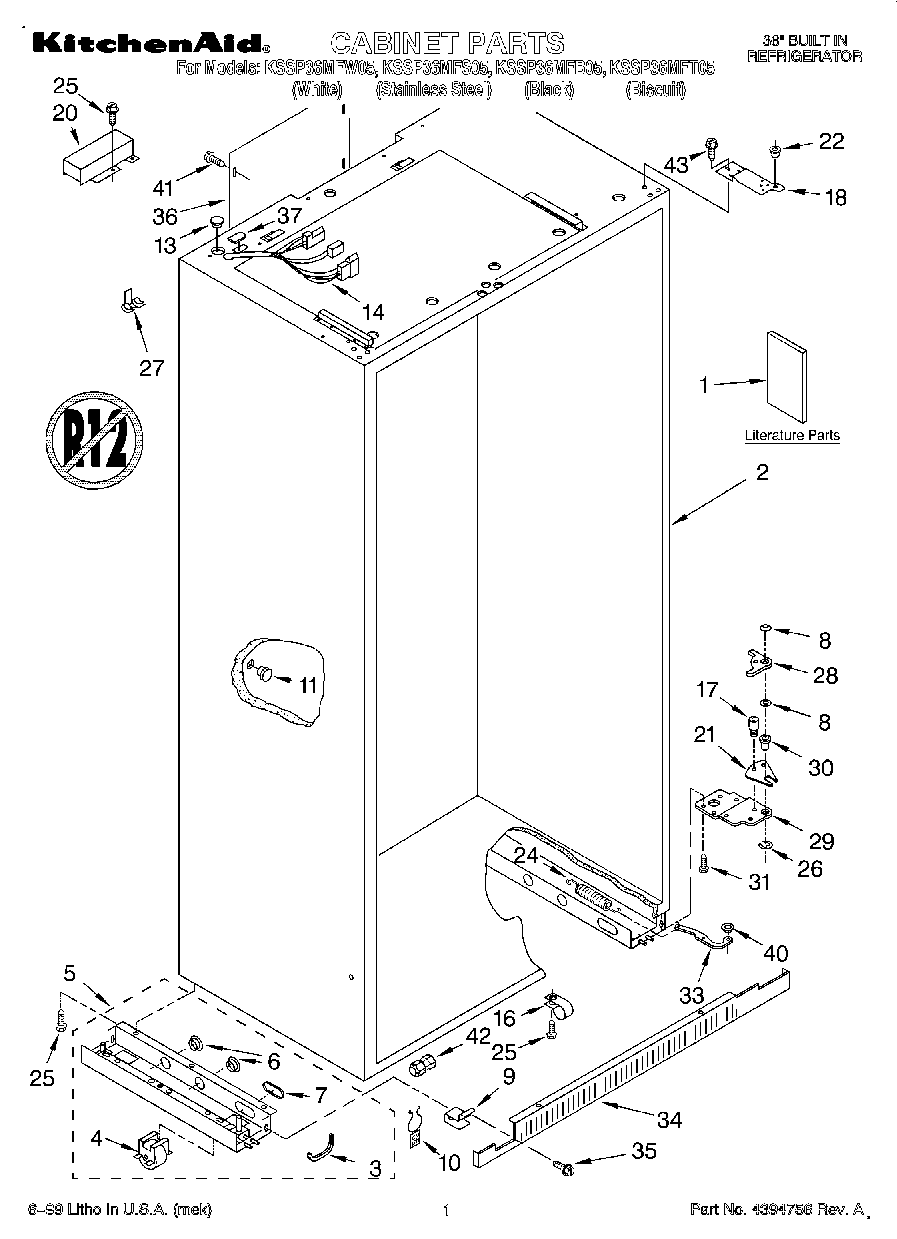

KSSP36MFT05 01 – CABINET, LITERATUREadmin2025-04-26T12:30:57+00:00KSSP36MFT05 01 – CABINET, LITERATURE
Products
| Position | Product |
|---|
| 1 | LITERATURE PARTS (Energy Label) |
| 1 | Modular Icemaker Service Sheet |
| 1 | Service & Wiring Sheet |
| 1 | Installation Instructions |
| 1 | Use & Care Guide |
| 2 | Cabinet (Not A Serviceable Part) |
| 3 | Grommet, Crossover Tube |
| 4 | WPW10138054 Whirlpool Refrigerator Cabinet Roller |
| 5 | W10860448 Whirlpool Refrigerator Support |
| 5 | W10860229 Whirlpool Refrigerator Support |
| 6 | Grommet, Wiring |
| 7 | Grommet, Flexible |
| 8 | WP2006346 Whirlpool Refrigerator Washer |
| 9 | Mounting Bracket, Grill |
| 10 | Clip, Wire |
| 11 | Cap, Grommet |
| 13 | Grommet, Wiring |
| 14 | Wiring Harness, Cabinet |
| 16 | 488946 Whirlpool Air Conditioner Clamp |
| 17 | WP2005378 Whirlpool Refrigerator Screw |
| 18 | 2257644 Whirlpool Refrigerator Door Hinge |
| 20 | Guard, Wiring |
| 21 | WP2004994 Whirlpool Refrigerator Hinge Bushing |
| 22 | Bushing |
| 24 | Spring, Door Closure |
| 25 | W11624204 Whirlpool Screw |
| 26 | WP489236 Whirlpool Refrigerator Ring |
| 27 | Fastener (3) |
| 28 | Gap, Cover Assembly (Bottom) |
| 29 | WP2006780 Whirlpool Refrigerator Door Hinge |
| 29 | W10527053 Whirlpool Refrigerator Door Hinge |
| 30 | WP2302876 Whirlpool Refrigerator Hinge Bushing |
| 33 | Linkage, Door Closure |
| 34 | Grille Base, Front (White) |
| 34 | Grille Base, Front (Black) |
| 35 | Screw |
| 36 | Cover, Rear |
| 37 | Grommet, Wiring |
| 40 | WPL 2004565 |
| 41 | WP1163283 Whirlpool Air Conditioner Screw |
| 42 | WP4211117 Whirlpool Refrigerator Connector |
| 43 | WP8204624 Whirlpool Bolt |
