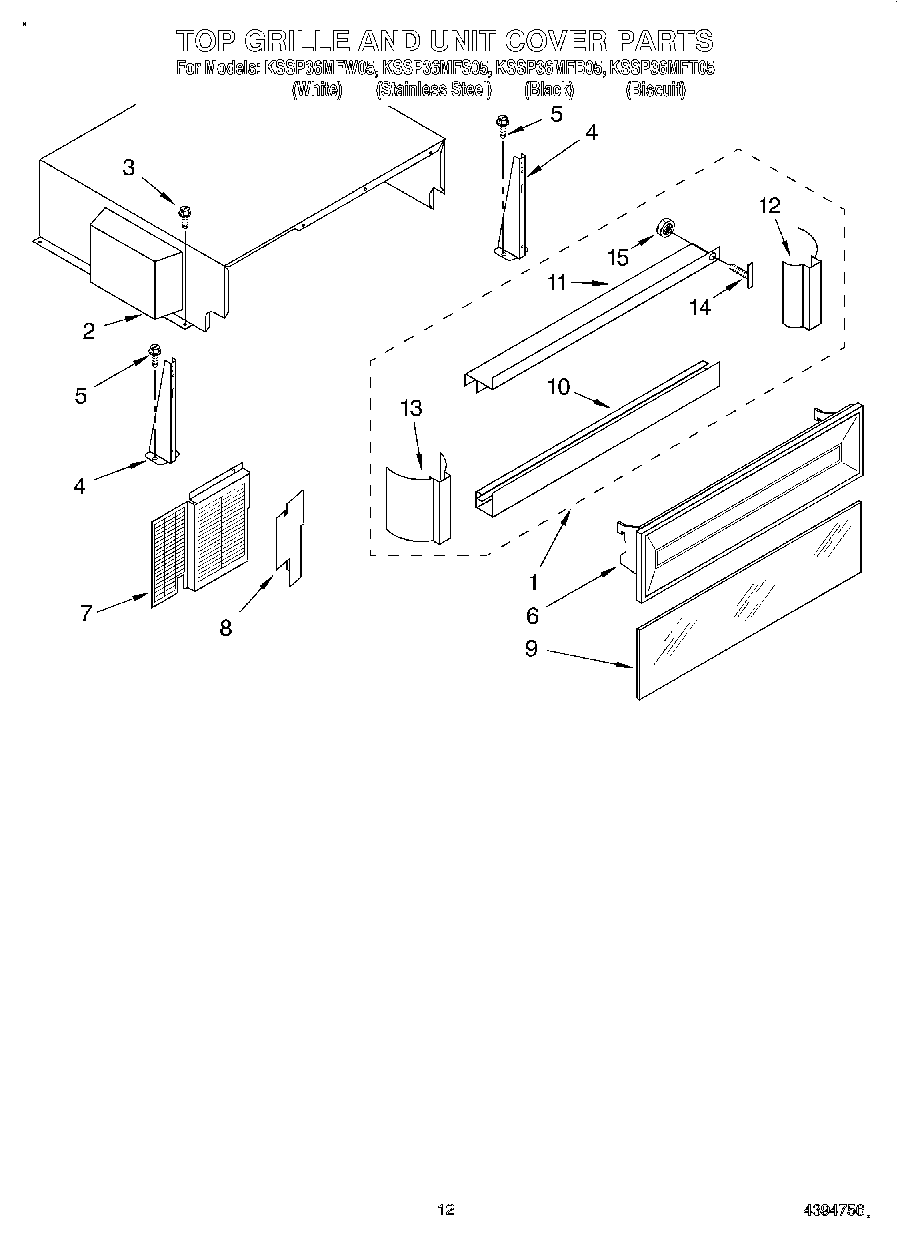

KSSP36MFT05 09 – TOP GRILLE AND UNIT COVER

KSSP36MFT05 09 – TOP GRILLE AND UNIT COVER

Written by

in

KSSP36MFT05 09 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Top Grille Assembly (White)
1Top Grille Assembly (Biscuit)
1Top Grille Assembly
1Top Grille Assembly (Aluminum (Black Model))
2Cover, Unit
3W11624204 Whirlpool Screw
4Grille, Bracket
5WP8204624 Whirlpool Bolt
6Decortive Panel Assembly
6Decortive Panel Assembly (White)
6Decortive Panel Assembly (Aluminum (Black Model))
6Decortive Panel Assembly (Biscuit)
7Guard, Compressor Wiring
8Baffle-Air, Condenser
9Panel, Decorative Acrylic (White)
9Panel, Decorative Acrylic (Black)
9Panel, Decorative Acrylic (Biscuit)
9Panel, Decorative Acrylic (Stainless Steel)
10Trim, Grille Bottom (White)
10Trim, Grille Bottom (Biscuit)
10Trim, Grille Bottom
10Trim, Grille Bottom (Aluminum (Black Model))
11Trim, Grille Top (White)
11Trim, Grille Top (Biscuit)
11Trim, Grille Top (Aluminum (Black Model))
11Trim, Grille Top
12Trim, Grille Right Side
12Trim, Grille Right Side (Biscuit)
12Trim, Grille Right Side (White)
12Trim, Grille Right Side
13Trim, Grille Left Side (White)
13Trim, Grille Left Side
13Trim, Grille Left Side
13Trim, Grille Left Side (Biscuit)
142003347 Whirlpool Screw
15WP488130 Whirlpool Air Conditioner Nut
