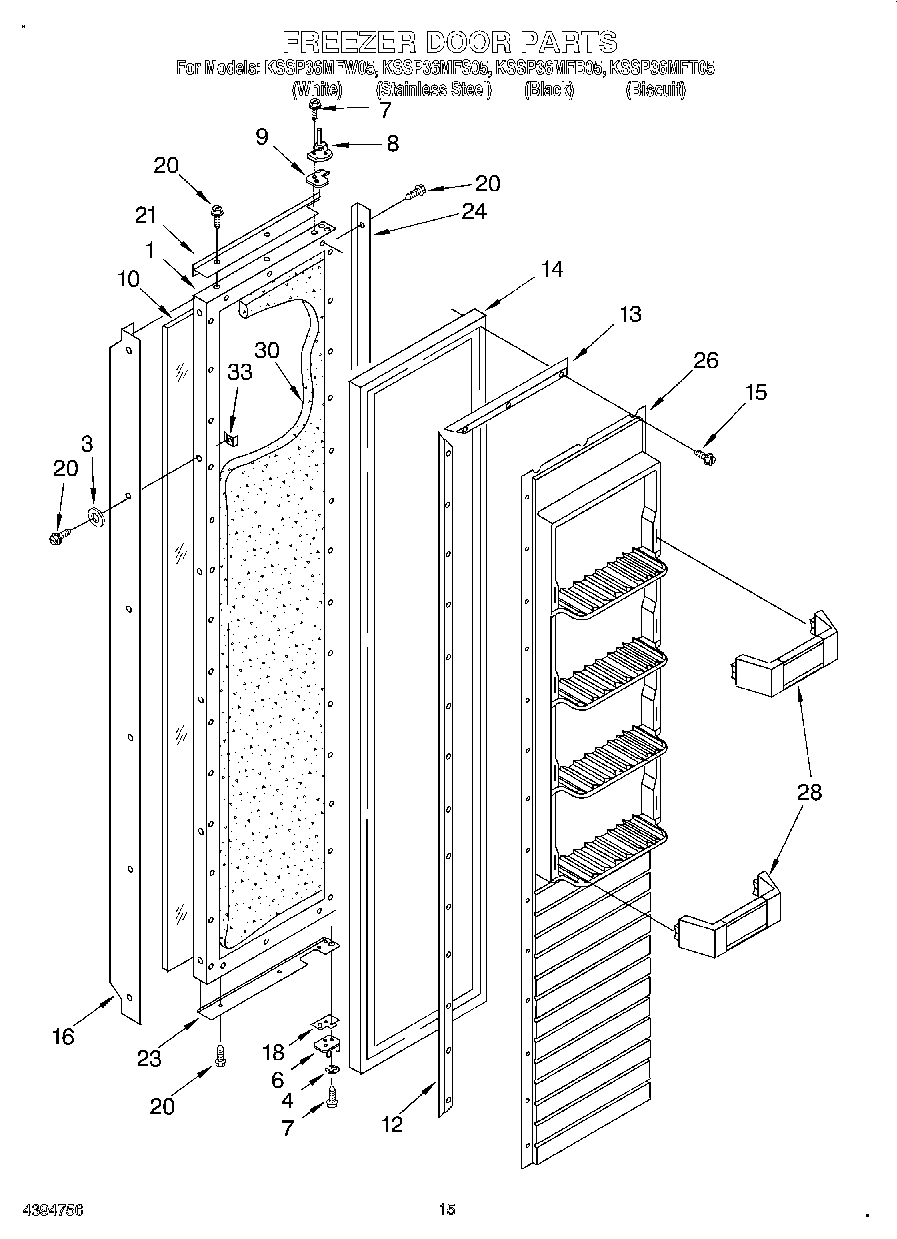

KSSP36MFT05 11 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
3	Washer
4	Retaining Ring, Door-Closure
6	Hinge, Bottom
7	W11474472 Whirlpool Screw
8	Hinge, Top
9	Spacer-Hinge, Top
10	Panel, Decorative (Stainless Steel)
10	Panel, Decorative (Biscuit)
10	Panel, Decorative (White)
10	Panel, Decorative (Black)
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	Door Gasket, Magnetic
15	W11624204 Whirlpool Screw
16	Handle, Door (White)
16	Handle, Door
16	Handle, Door (Biscuit)
16	Handle, Door (Stainless Steel)
18	Door, Spacer
20	WP488729 Whirlpool Refrigerator Door Screw
20	Screw (White)
21	Trim, Door (Top) (Etched Aluminum)
21	TRIM-DOOR, TOP (WHITE)
21	Trim (Top) (Biscuit)
21	Trim (Top)
23	Trim (Bottom)
23	Trim (Bottom) (Biscuit)
23	Trim (Bottom) (White)
23	Trim (Bottom) (Aluminum (Black Model))
24	Trim (Side) (Biscuit)
24	Trim (Side) (White)
24	Trim-Door, Side
24	Trim (Side) (Etched Aluminum)
26	Panel, Interior Door
28	Shelf Bin (4)
30	Insulation, Encapsulated
33	WP939101 Whirlpool Refrigerator Plate
