KSSP36QHB00 13 – DISPENSER FRONT

KSSP36QHB00 13 – DISPENSER FRONT

Written by

in

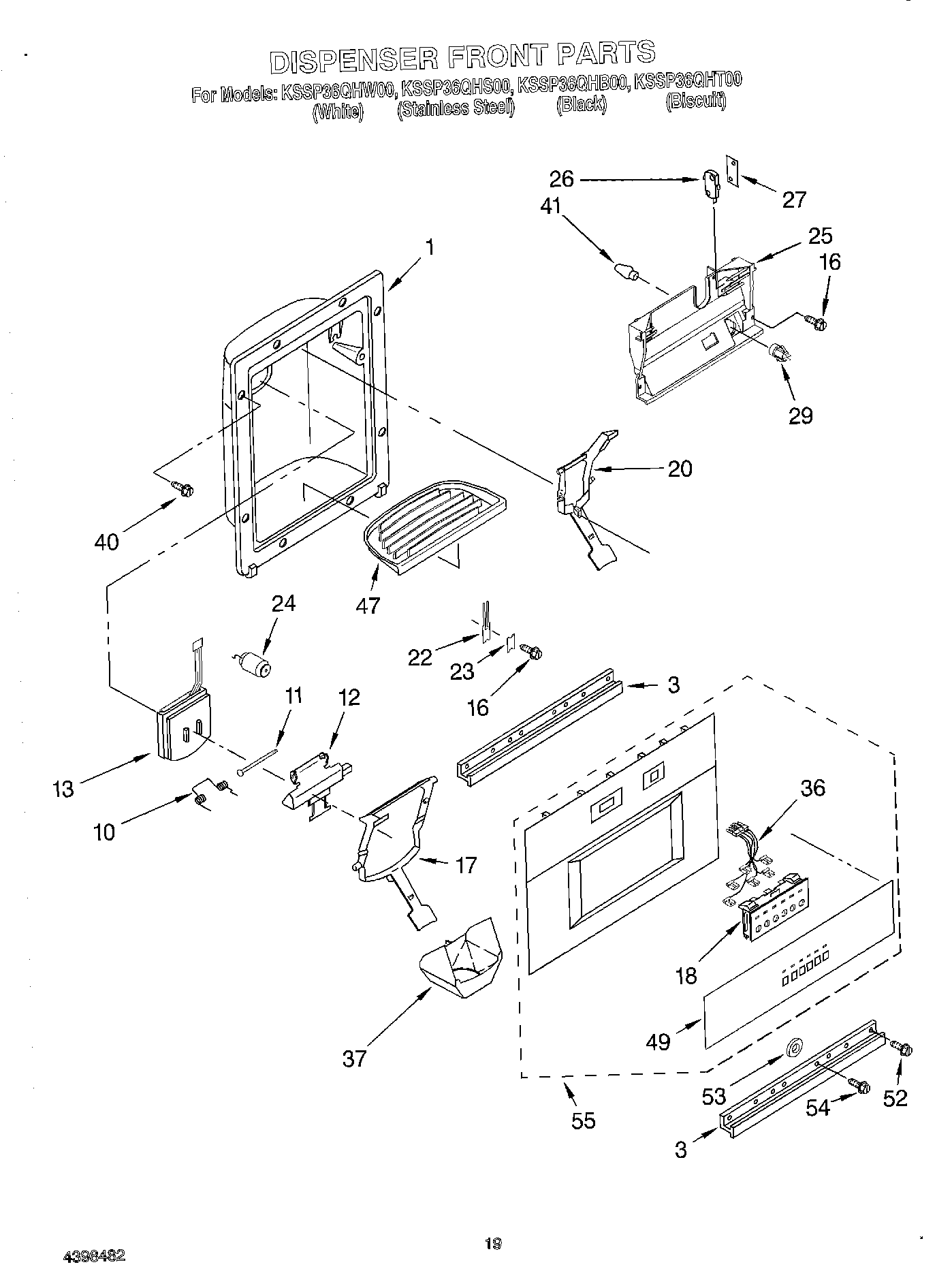

KSSP36QHB00 13 – DISPENSER FRONT

Products

PositionProduct
1Housing, Dispenser (Not a Serviceable Part)
3Trim-Dispenser, Front (Biscuit)
3Trim, Front-Bottom (Black)
3Trim, Front-Bottom (White)
10WPW10224328 Whirlpool Refrigerator Spring
11WP2196195 Whirlpool Refrigerator Door Pin
12Door Mechanism Assembly
13Door, Ice
16WP3400906 Whirlpool Refrigerator Screw
17Lever, Ice Dispenser (White (White Shadow Pad))
17Lever, Ice Dispenser (Black (Storm Grey Pad))
17Lever, Ice Dispenser (Biscuit (Almond Shadow Pad))
18Switch Assembly (Also Order Item 49)
20WPW10152858 Whirlpool Refrigerator Dispenser Arm
22WP2194719 Whirlpool Refrigerator Clip
23WP2195051 Whirlpool Refrigerator Clip
24Delay Mechanism
25WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
26WP2162361 Whirlpool Switch
27Spacer, Switch (2)
292180200 Whirlpool Refrigerator Socket
362311650 Whirlpool Refrigerator Wire Harness
37WP2180224 Whirlpool Dispenser Funnel Guide
40WP489128 Whirlpool Refrigerator Screw
41WP22002263 Whirlpool Dryer 10W Light Bulb
47WP2180325 Whirlpool Dispenser Grille
47Grille, Overflow
47Grille, Overflow (Biscuit)
49Overlay, Cover (White)
49Overlay, Cover (Black)
49Overlay, Cover (Biscuit)
52WP488729 Whirlpool Refrigerator Door Screw
53W10903204 Whirlpool Refrigerator Washer
54W10759522 Whirlpool Screw
55Front Cover Assembly (Includes Items 18, 36, 42 & 49) (Black)
55Front Cover Assembly (Includes Items 18, 36, 42 & 49) (Biscuit)
55Front Cover Assembly (Includes Items 18, 36, 42, & 49) (White)
