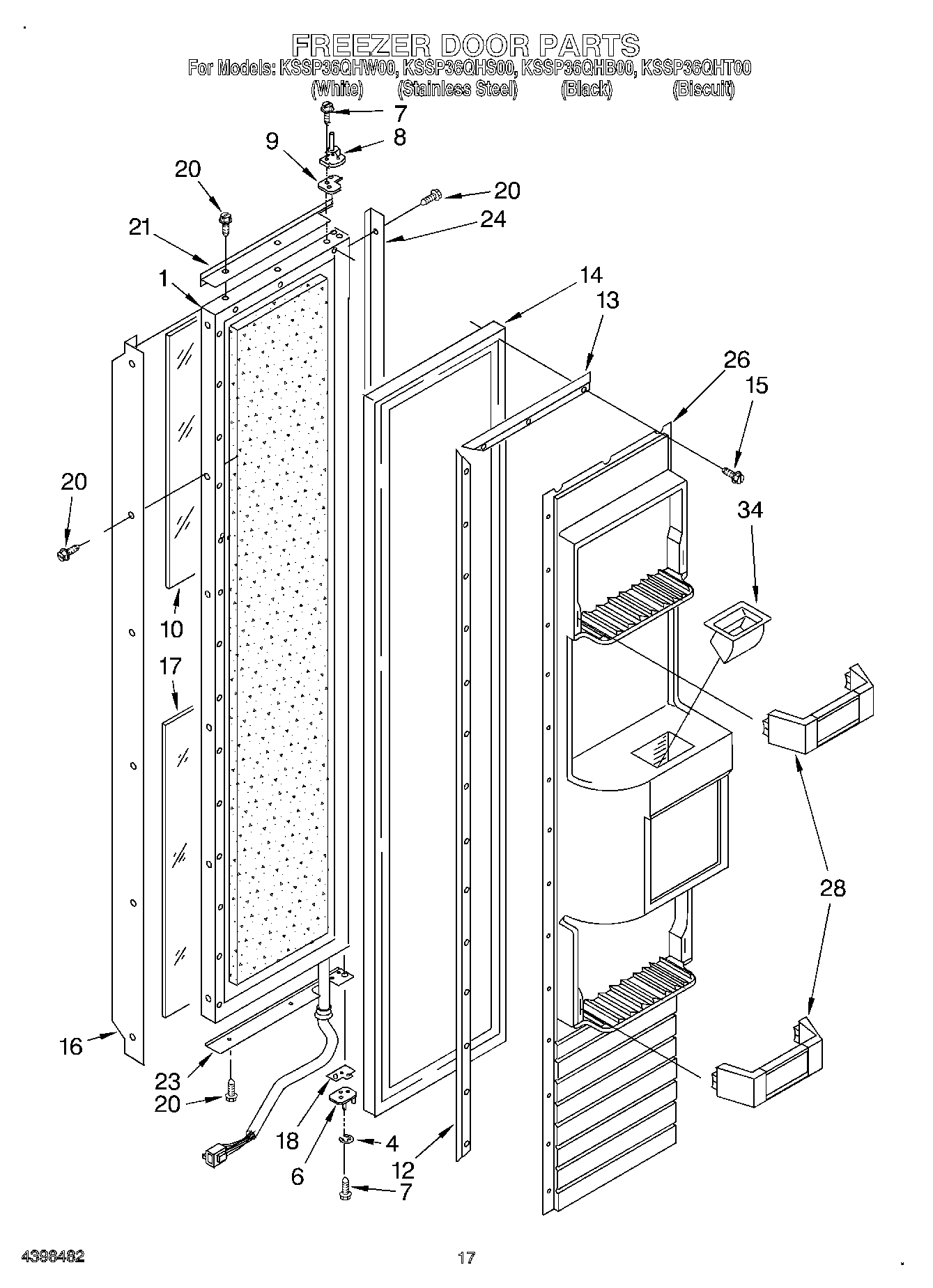

KSSP36QHT00 12 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation) (White)
1	Freezer Door Panel (Includes Insulation) (Biscuit)
1	Freezer Door Panel (Includes Insulation and Dispenser Housing) (Black)
4	Retaining Ring, Door-Closure
6	Hinge, Bottom
7	W11474472 Whirlpool Screw
8	Hinge, Top
9	Spacer-Hinge, Top
10	Panel, Decorative Upper (White)
10	Panel, Decorative Upper (Biscuit)
10	Panel, Decorative Upper (Stainless Steel)
10	Panel, Decorative Upper (Black)
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	Door Gasket, Magnetic
15	W11624204 Whirlpool Screw
16	Handle, Door (Black)
16	Handle, Door
16	Handle, Door (Biscuit)
16	Handle, Door (White)
17	Panel, Decorative Lower (Black)
17	Panel, Decorative Lower (Biscuit)
17	Panel, Decorative Lower (White)
17	Panel, Decorative Lower (Stainless Steel)
18	Door, Spacer
20	WP488729 Whirlpool Refrigerator Door Screw
20	Screw (White)
21	TRIM-DOOR, TOP (BLACK)
21	Trim (Top) (Biscuit)
21	Trim (Top)
21	TRIM-DOOR, TOP (WHITE)
23	Trim (Bottom)
23	Trim (Bottom) (Black)
23	Trim (Bottom) (Biscuit)
23	Trim (Bottom) (White)
24	Trim (Side) (Biscuit)
24	Trim (Side) (Black)
24	Trim (Side) (White)
24	Trim-Door, Side
26	Pa
28	Shelf Bin (4)
34	Ice Chute
