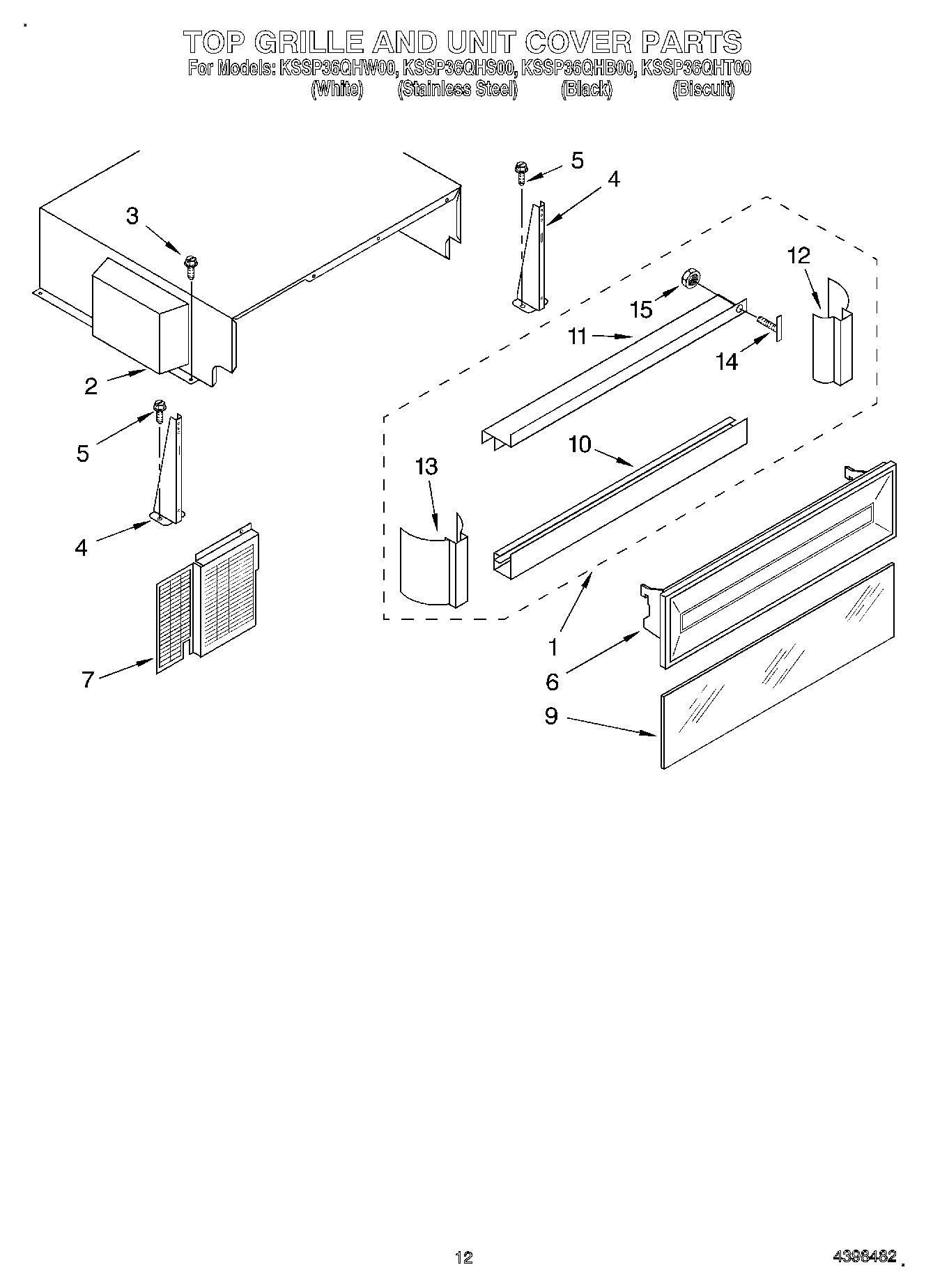

KSSP36QHW00 09 – TOP GRILLE AND UNIT COVER

Products

Position	Product
1	Top Grille Assembly
1	Top Grille Assembly (Biscuit)
1	Top Grille Assembly (Black)
1	Top Grille Assembly (White)
2	Cover, Unit
3	W11624204 Whirlpool Screw
4	Grille, Bracket
5	WP8204624 Whirlpool Bolt
6	Decortive Panel Assembly (Black)
6	Decortive Panel Assembly (Biscuit)
6	Decortive Panel Assembly
6	Decortive Panel Assembly (White)
7	Guard, Compressor Wiring
9	Panel, Decorative Acrylic (Black)
9	Panel, Decorative Acrylic (White)
9	Panel, Decorative Acrylic (Stainless Steel)
9	Panel, Decorative Acrylic (Biscuit)
10	Trim, Grille Bottom (Biscuit)
10	Trim, Grille Bottom (Black)
10	Trim, Grille Bottom
10	Trim, Grille Bottom (White)
11	Trim, Grille Top (White)
11	Trim, Grille Top (Biscuit)
11	Trim, Grille Top
11	Trim, Grille Top (Black)
12	Trim, Grille Right Side (White)
12	Trim, Grille Right Side (Biscuit)
12	Trim, Grille Right Side
12	Trim, Grille Right Side (Black)
13	Trim, Grille Left Side (Black)
13	Trim, Grille Left Side (Biscuit)
13	Trim, Grille Left Side
13	Trim, Grille Left Side (White)
14	2003347 Whirlpool Screw
15	WP488130 Whirlpool Air Conditioner Nut
