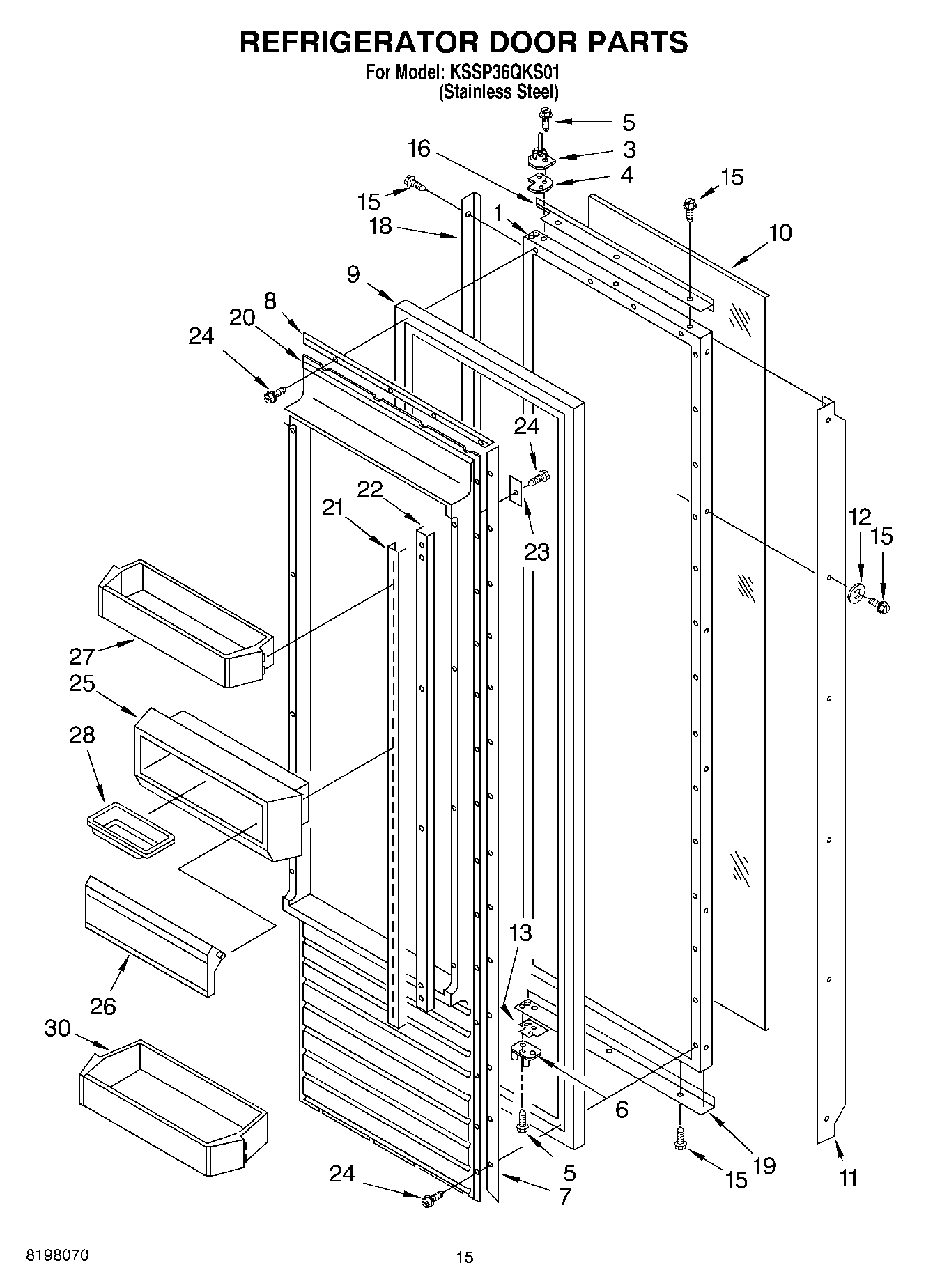

KSSP36QKS01 10 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel
3	Hinge, Top
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	Hinge Assembly, Bottom
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	Door Gasket, Magnetic
10	Panel, Decorative
11	Handle, Door
12	Washer
13	Door, Spacer
15	WP8281250 Whirlpool Refrigerator Screw
16	Trim (Top)
18	Trim-Door, Side
19	Trim (Bottom)
20	Panel, Interior Door
21	Ladder, Shelf (2)
22	Retainer, Shelf Ladder (2)
23	Back Up Plate (8)
24	W11624204 Whirlpool Screw
25	Bin, Utility
26	Door, Utility Bin
27	Door Shelf (3)
28	Butter Tray
30	Shelf, Gallon Door
