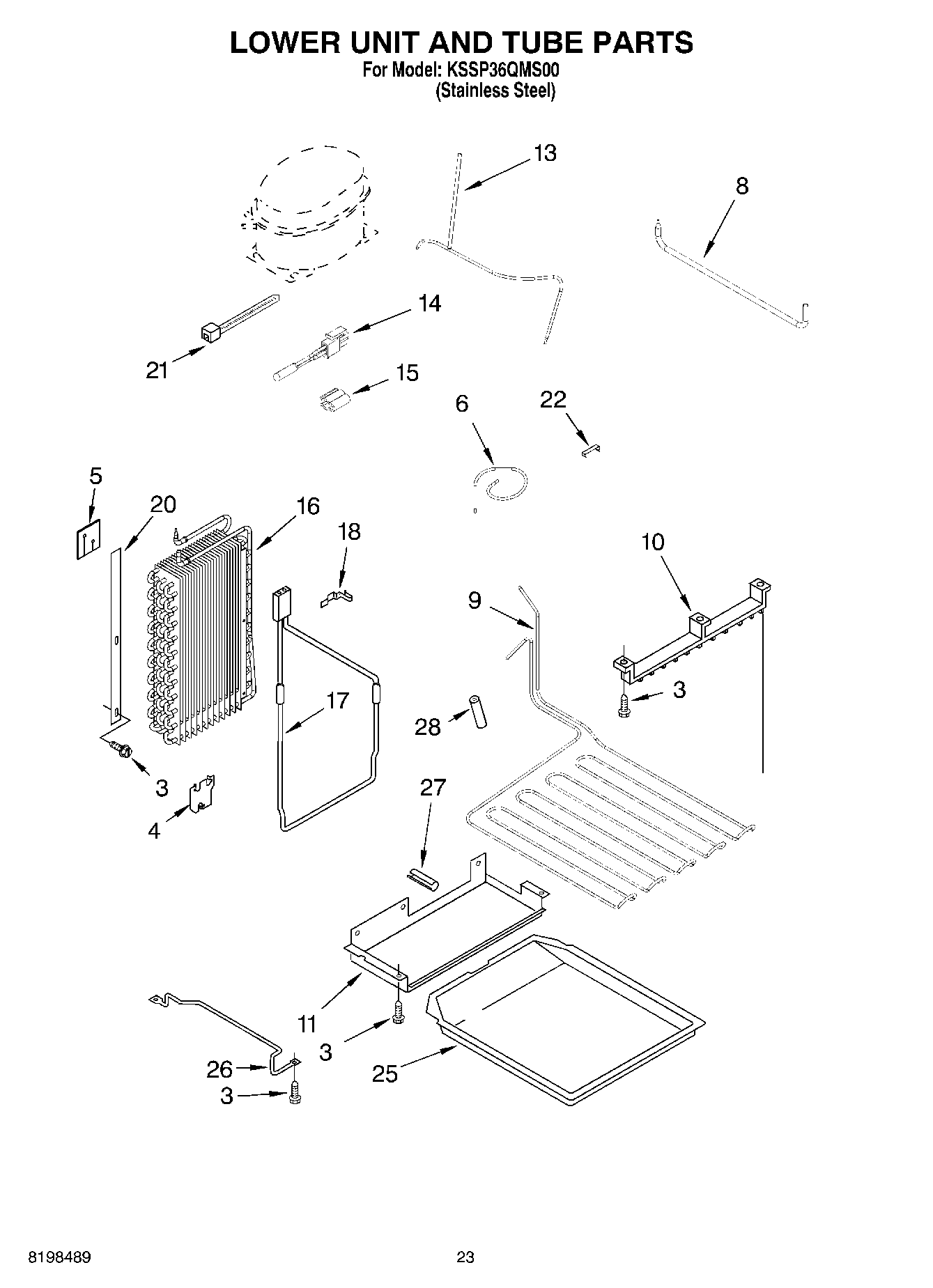

KSSP36QMS00 14 – LOWER UNIT AND TUBE PARTSadmin2025-04-26T12:31:06+00:00KSSP36QMS00 14 – LOWER UNIT AND TUBE PARTS ProductsPositionProduct3W11624204 Whirlpool Screw4Bracket5Side Support6Suction Tube8Tube, Connect (Drier/Restrictor)9Heater, Drain Pan10Hanger, Heater11Shield, Drain Pan13Tube, Discharge14WP2188819 Whirlpool Thermistor15CLIP16WP2306092 Whirlpool Refrigerator Evaporator17Heater, Defrost181113048 Whirlpool Refrigerator Clamp20Gasket, Evaporator21WPW10339879 Whirlpool Wire Tie22W10169509 Whirlpool Refrigerator Clip25WP2001264 Whirlpool Refrigerator Drip Pan26Bracket, Drain Pan (Left)26Bracket, Drain Pan (Right)27WP2158826 Whirlpool Refrigerator Dampener282215648 Whirlpool Refrigerator Dampener
