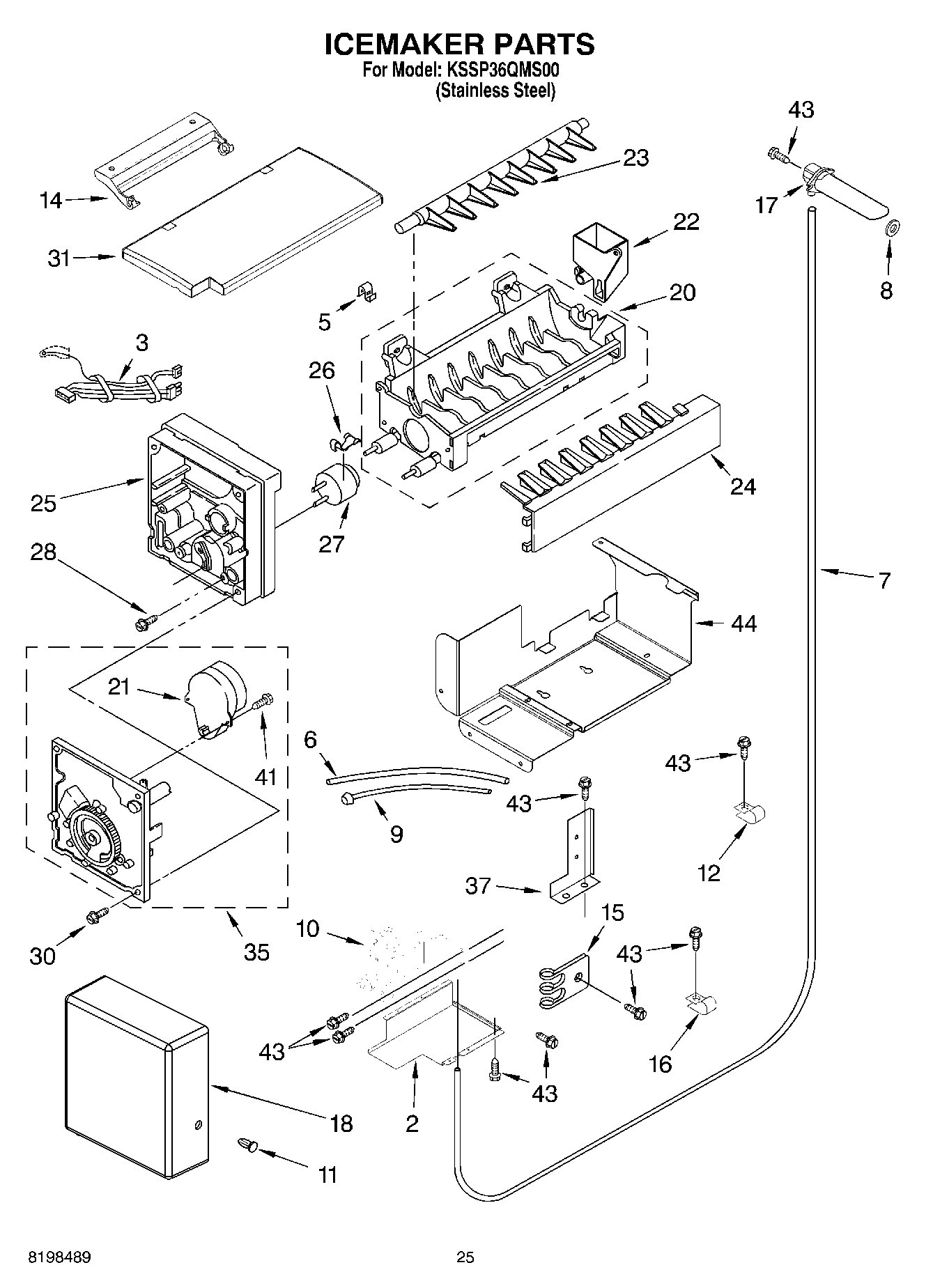

KSSP36QMS00 15 – ICEMAKER PARTSadmin2025-04-26T12:31:17+00:00KSSP36QMS00 15 – ICEMAKER PARTS ProductsPositionProduct2Cover, Bottom3Wire Assembly, Icemaker5WP628379 Whirlpool Refrigerator Clip6Tube, Filter Inlet7Water Inlet Tube Assembly8Seal Gasket9Tube, Filter Outlet10Valve, Solenoid11WP489115 Whirlpool Refrigerator Rivet12W10833902 Whirlpool Refrigerator Clamp14WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket15WP488366 Whirlpool Refrigerator Clamp16Clamp, Tube17W10460127 Whirlpool Refrigerator Inlet Tube18Cover20WPW10122550 Whirlpool Refrigerator Ice Mold21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly22WP628356 Whirlpool Refrigerator Fill Cup23626753 Whirlpool Refrigerator Ejector Arm24W10297245 Whirlpool Refrigerator Arm Stripper25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat288533917 Whirlpool Refrigerator Screw30WP681249 Whirlpool Screw Assembly31W10504752 Whirlpool Refrigerator Ice Door37Water Valve Mounting Bracket41489136 Whirlpool Refrigerator Screw43W11624204 Whirlpool Screw442252228 Whirlpool Refrigerator Bracket100FOLLOWING PARTS NOT ILLUSTRATED100Front Panel Kit (Stainless Steel)100Front Panel Kit (Black)100Front Panel Kit (White)100WPW10277449 Whirlpool Refrigerator Ice Maker100Cleaner, Stainless Steel100(Optional Parts Only)
