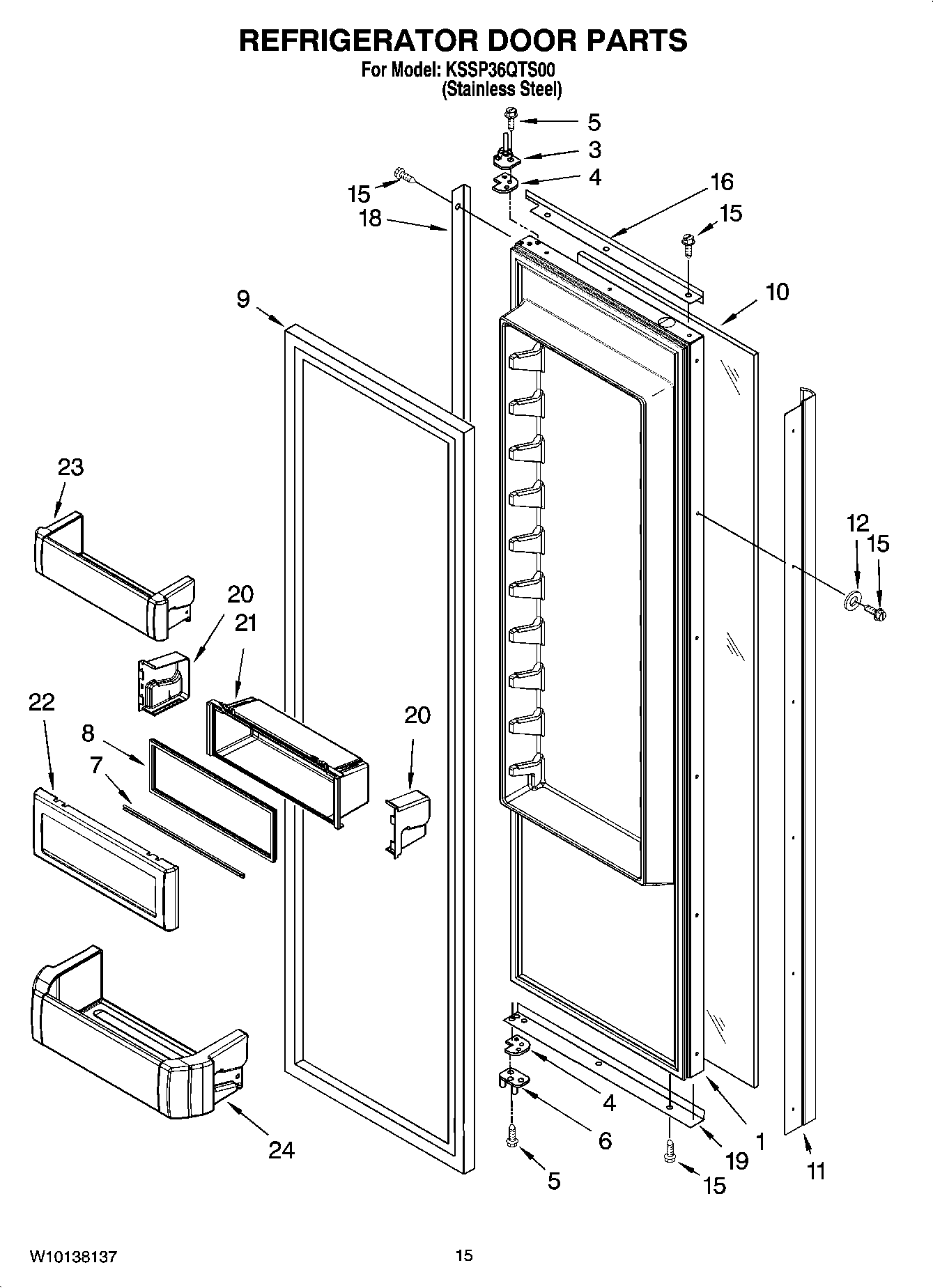

KSSP36QTS00 10 – REFRIGERATOR DOOR PARTS

KSSP36QTS00 10 – REFRIGERATOR DOOR PARTS

Written by

in

KSSP36QTS00 10 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10193489 Whirlpool Refrigerator Black Foam In Place Door
3W11724512 Whirlpool Door Hinge
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
62302878 Whirlpool Refrigerator Door Hinge
72222795 Whirlpool Refrigerator Rail
8WP2222981 Whirlpool Refrigerator Gasket
9WP2266901 Whirlpool Door Gasket
10Panel, Decorative
11Handle, Door
12Washer
15WP8281250 Whirlpool Refrigerator Screw
16Trim (Top)
18Trim-Door, Side
19Door Trim, Bottom
20WPW10323173 Whirlpool Refrigerator Retainer End Cap
20WPW10323172 Whirlpool Refrigerator Retainer End Cap
21WPW10323035 Whirlpool Refrigerator Cantilever Bin
22WPW10131132 Whirlpool Refrigerator Door Compressor
23W10323598 Whirlpool Refrigerator Cantilever Bin
24W10323746 Whirlpool Refrigerator Cantilever Bin
