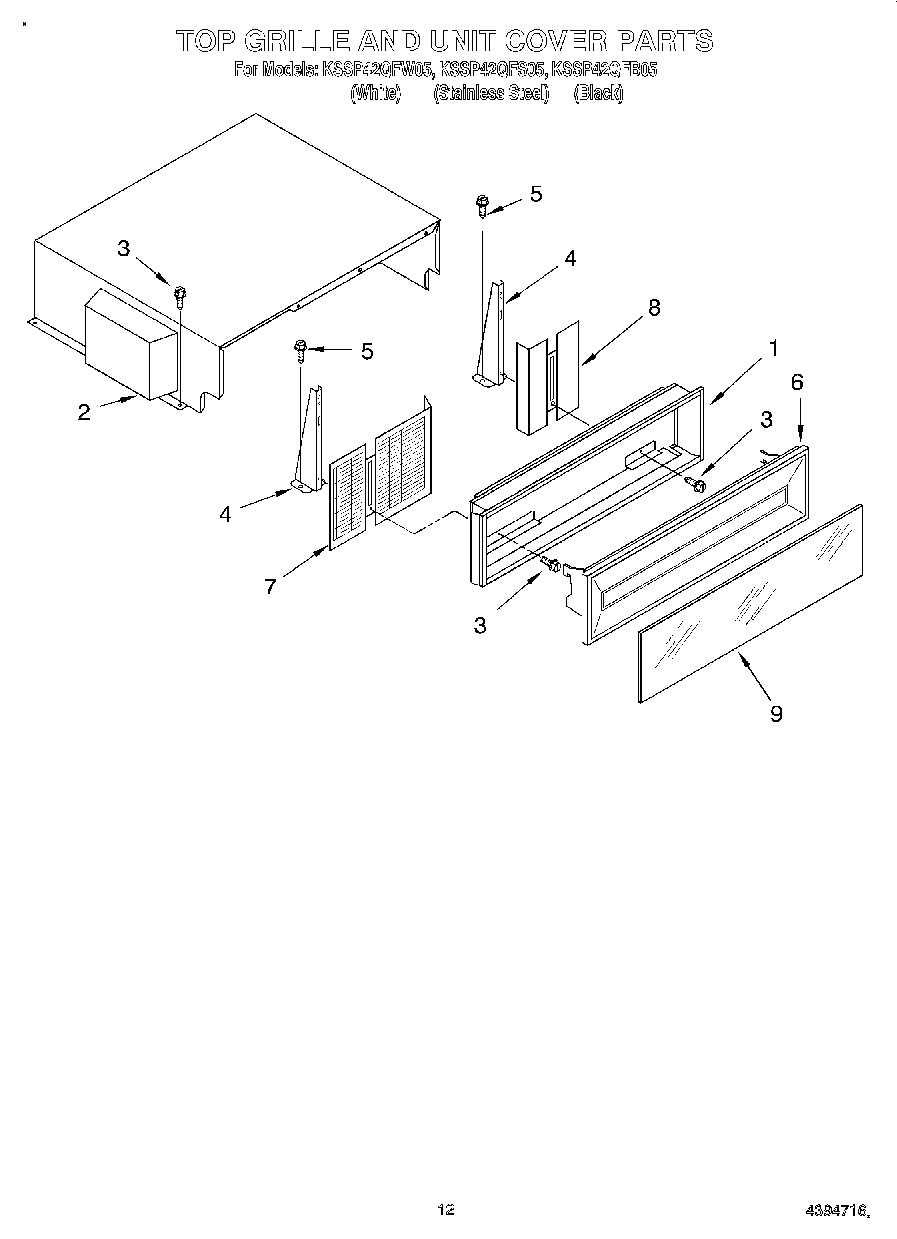

KSSP42QFB05 09 – TOP GRILLE AND UNIT COVER

KSSP42QFB05 09 – TOP GRILLE AND UNIT COVER

Written by

in

KSSP42QFB05 09 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Top Grille Assembly (White)
1Top Grille Assembly (Stainless Steel)
1Top Grille Assembly
2Cover, Unit
3W11624204 Whirlpool Screw
4Grille, Bracket
5WP8204624 Whirlpool Bolt
6Decortive Panel Assembly (Stainless Steel Models)
6Decortive Panel Assembly
6Decortive Panel Assembly (White)
7Guard, Compressor Wiring
8Guard, Water Valve Wiring
9Panel, Decorative (Black Models)
9Panel, Decorative (White Models)
9Panel, Decorative (Stainless Steel Models)
