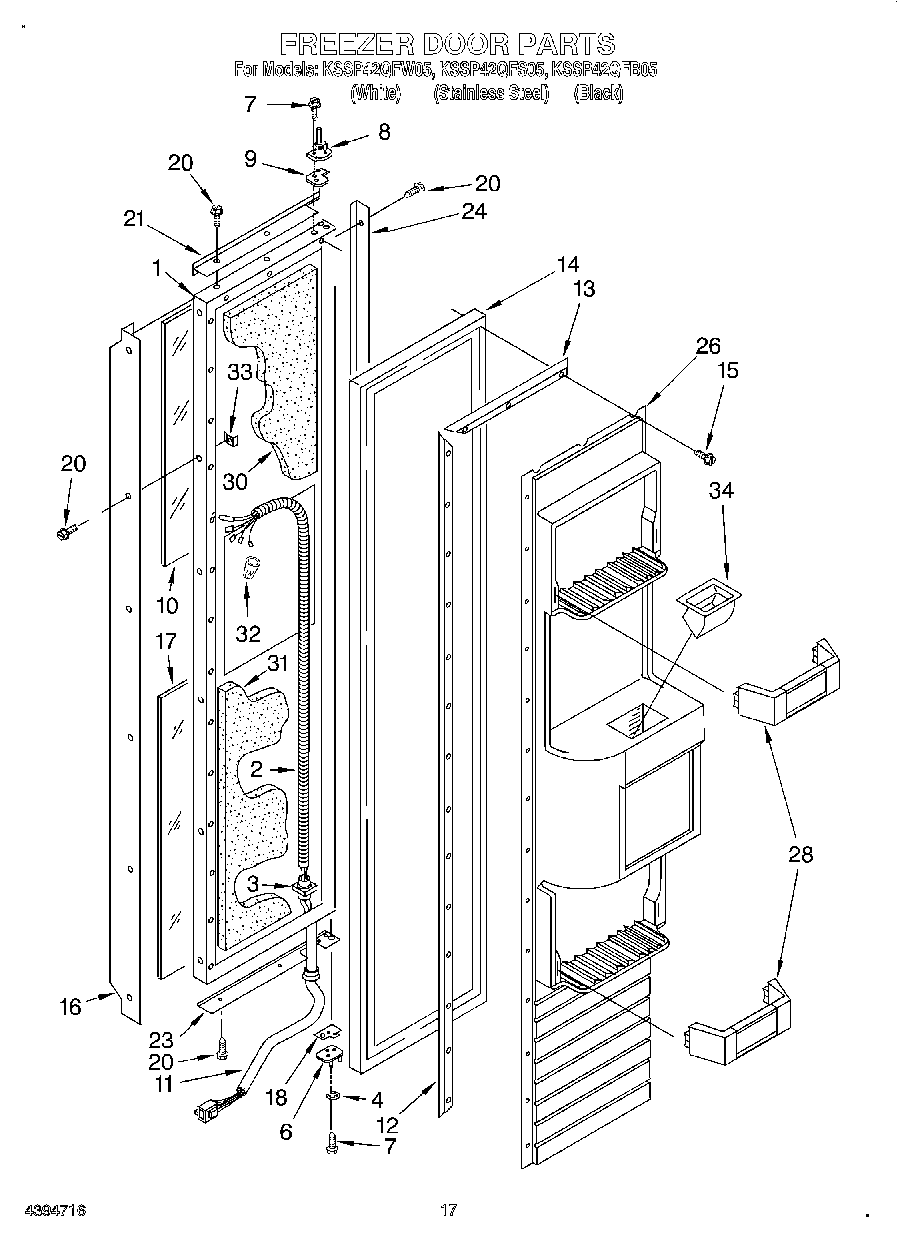

KSSP42QFB05 12 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
2	Tube, Wiring
3	Retainer, Tube
4	Retaining Ring, Door-Closure
6	Hinge, Bottom
7	W11474472 Whirlpool Screw
8	Hinge Assembly, Top
9	Spacer-Hinge, Top
10	Panel, Decorative Upper (Black)
10	Panel, Decorative Upper (White)
10	Panel, Decorative Upper (Stainless Steel)
11	Wiring Harness, Freezer Door
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	2188318A Whirlpool Refrigerator Door Gasket
15	W11624204 Whirlpool Screw
16	Handle, Door (White)
16	Handle, Door
16	Handle, Door (Stainless Steel)
17	Panel, Decorative Lower (White)
17	Panel, Decorative Lower (Black)
17	Panel, Decorative Lower (Stainless Steel)
18	Door, Spacer
20	WP488729 Whirlpool Refrigerator Door Screw
20	Screw (White)
21	2005020 Whirlpool Refrigerator Door Trim
21	Trim (Top) (White)
21	Trim-Door, Top
23	Trim (Bottom) (White)
23	Trim (Bottom)
23	Trim (Bottom) (Stainless Steel)
24	Trim (Side) (White)
24	Trim (Side)
24	Trim (Side) (Stainless Steel)
26	Panel, Interior Door
28	WP2003128 Whirlpool Shelf Bin
30	Insulation, Upper
31	Insulation, Lower
32	Conector, Wire
33	WP939101 Whirlpool Refrigerator Plate
34	Ice Chute
