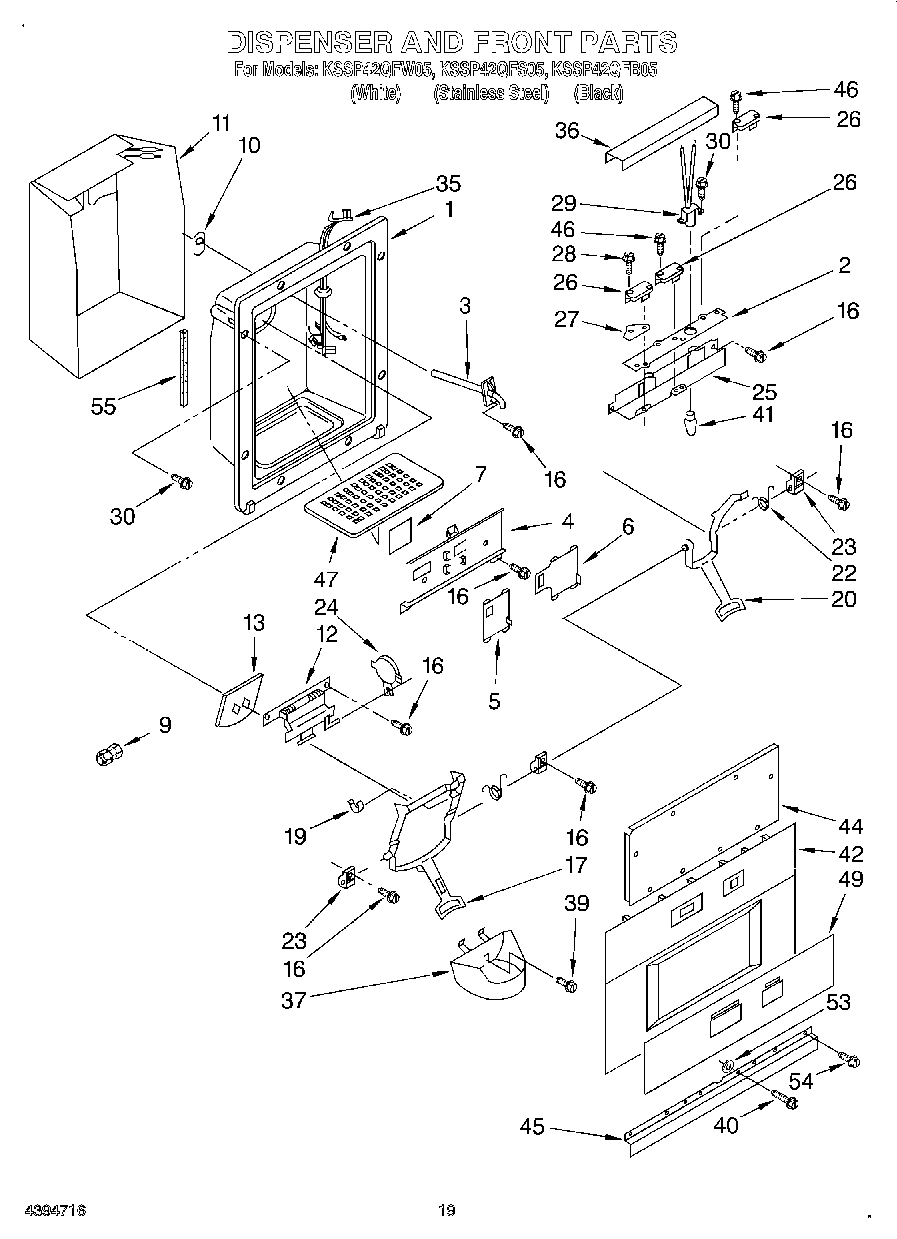

KSSP42QFW05 13 – DISPENSER FRONTadmin2025-04-26T12:32:44+00:00KSSP42QFW05 13 – DISPENSER FRONT
Products
| Position | Product |
|---|
| 1 | Housing, Dispenser |
| 1 | Housing, Dispenser |
| 2 | Insulator, Control Bracket |
| 3 | WP4388152 Whirlpool Refrigerator Fitting |
| 4 | Frame, Slides |
| 4 | Frame, Slides |
| 5 | Slide, Cube/Crush Switch |
| 5 | Slide, Cube/Crush Switch |
| 6 | Slide, Light Switch |
| 6 | Slide, Light Switch |
| 7 | Heat Shield, Frame |
| 9 | WP4211117 Whirlpool Refrigerator Connector |
| 10 | Grommet |
| 11 | Heater, Dispenser |
| 12 | Door Mechanism Assembly (Includes Item 9) |
| 13 | Door, Ice |
| 16 | WP3400906 Whirlpool Refrigerator Screw |
| 17 | Lever Assembly, Ice Dispenser |
| 17 | Lever Assembly, Ice Dispenser |
| 19 | Clip, Bearing (2) |
| 20 | WPL 2159197 |
| 20 | Lever Assembly, Water Disp |
| 22 | Spring, Lever (2) |
| 23 | Bearing, Lever (3) |
| 24 | WP1120581 Whirlpool Refrigerator Mechanism |
| 25 | Bracket, Control |
| 26 | WP2162361 Whirlpool Switch |
| 27 | Spacer, Switch (2) |
| 28 | Screw, 4-40 x 1 |
| 29 | Lamp Holder |
| 30 | WP489128 Whirlpool Refrigerator Screw |
| 35 | Wiring Harness, Door |
| 36 | Shield, Wiring |
| 37 | Guide, Ice |
| 37 | Guide, Ice |
| 39 | Screw |
| 39 | Screw |
| 40 | WP488729 Whirlpool Refrigerator Door Screw |
| 41 | WP22002263 Whirlpool Dryer 10W Light Bulb |
| 42 | Front Cover, Housing (Includes No.49) |
| 42 | Front Cover, Housing (Includes No.49) |
| 44 | Cover, Dispenser Opening |
| 45 | Trim, Front (2) |
| 45 | Trim, Front (2) (White) |
| 46 | Screw, |
| 47 | Grille, Overflow (White) |
| 47 | Grille, Overflow (Black) |
| 49 | Overlay, Cover |
| 49 | Overlay, Cover |
| 53 | W10903204 Whirlpool Refrigerator Washer |
| 54 | W10759522 Whirlpool Screw |
| 55 | Seal |
