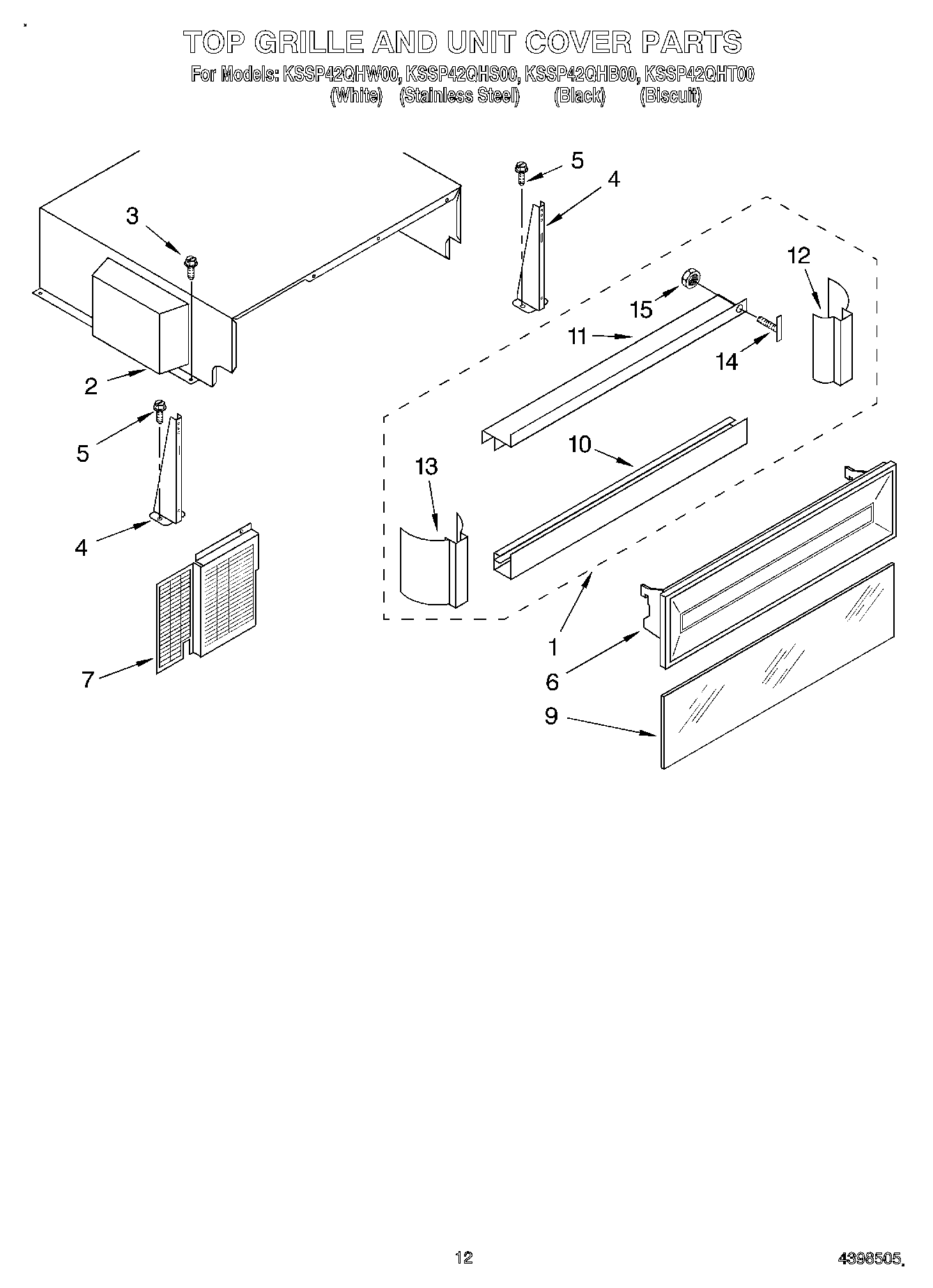

KSSP42QHT00 09 – TOP GRILLE AND UNIT COVER

Products

Position	Product
1	Top Grille Assembly (Stainless Steel)
1	Top Grille Assembly (White)
1	Top Grille Assembly (Black)
1	Top Grille Assembly (Biscuit)
2	Cover, Unit
3	W11624204 Whirlpool Screw
4	Grille, Bracket
5	WP8204624 Whirlpool Bolt
6	Decortive Panel Assembly (Black)
6	Decortive Panel Assembly (Stainless Steel Models)
6	Decortive Panel Assembly (Biscuit)
6	Decortive Panel Assembly (White)
7	Guard, Compressor Wiring
9	Panel, Decorative (Black Models)
9	Panel, Decorative Acrylic (Biscuit)
9	Panel, Decorative (White Models)
9	Panel, Decorative (Stainless Steel Models)
10	Trim, Grille Bottom
10	Trim, Grille Bottom (White)
10	Trim, Grille Bottom (Black)
10	Trim, Grille Bottom (Biscuit)
11	Trim, Grille Top
11	Trim, Grille Top (White)
11	Trim, Grille Top (Biscuit)
11	Trim, Grille Top (Black)
12	Trim, Grille Right Side (White)
12	Trim, Grille Right Side (Biscuit)
12	Trim, Grille Right Side (Black)
12	Trim, Grille Right Side
13	Trim, Grille Left Side (White)
13	Trim, Grille Left Side
13	Trim, Grille Left Side (Black)
13	Trim, Grille Left Side (Biscuit)
14	2003347 Whirlpool Screw
15	WP488130 Whirlpool Air Conditioner Nut
